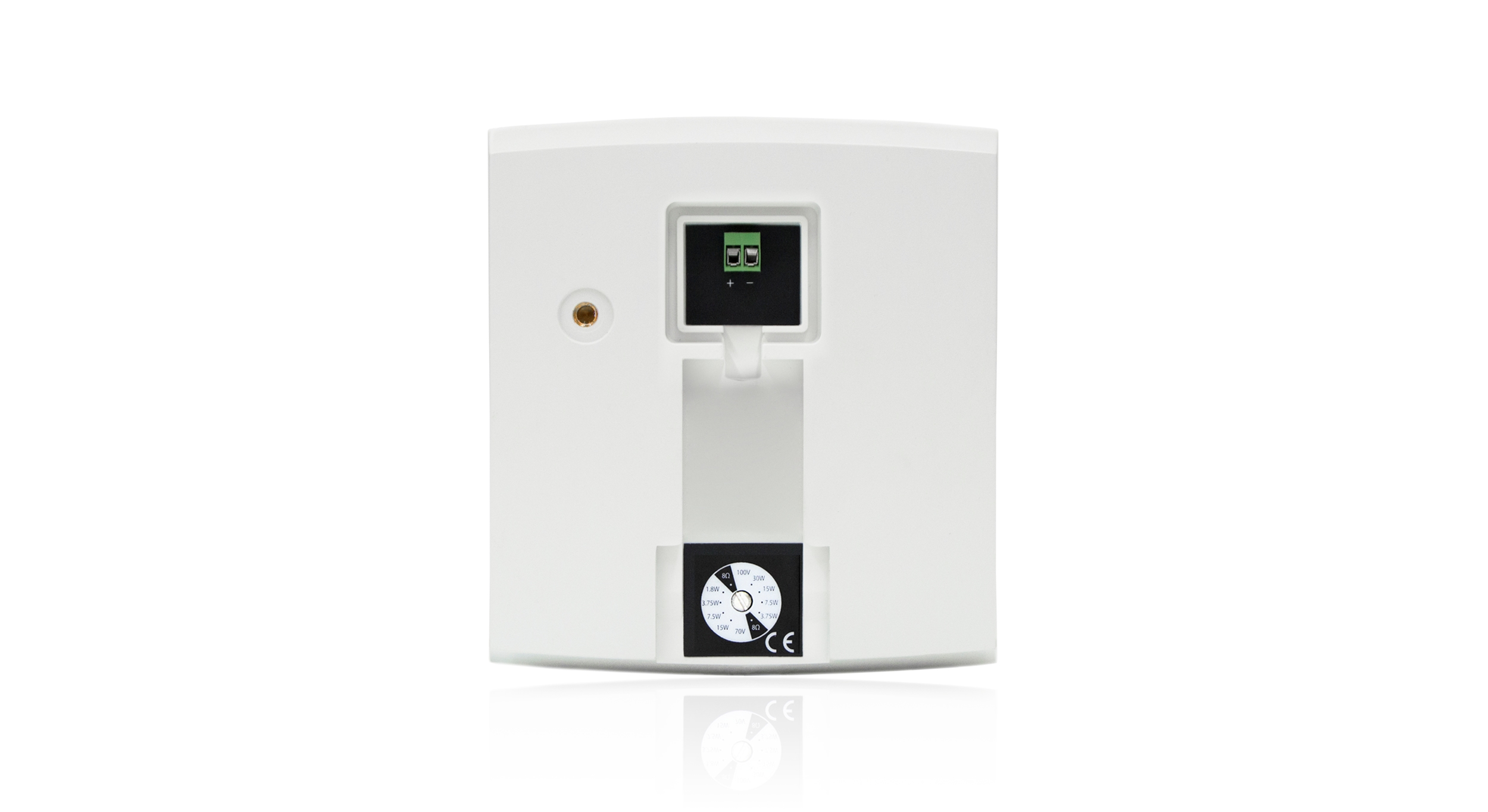

Connection type

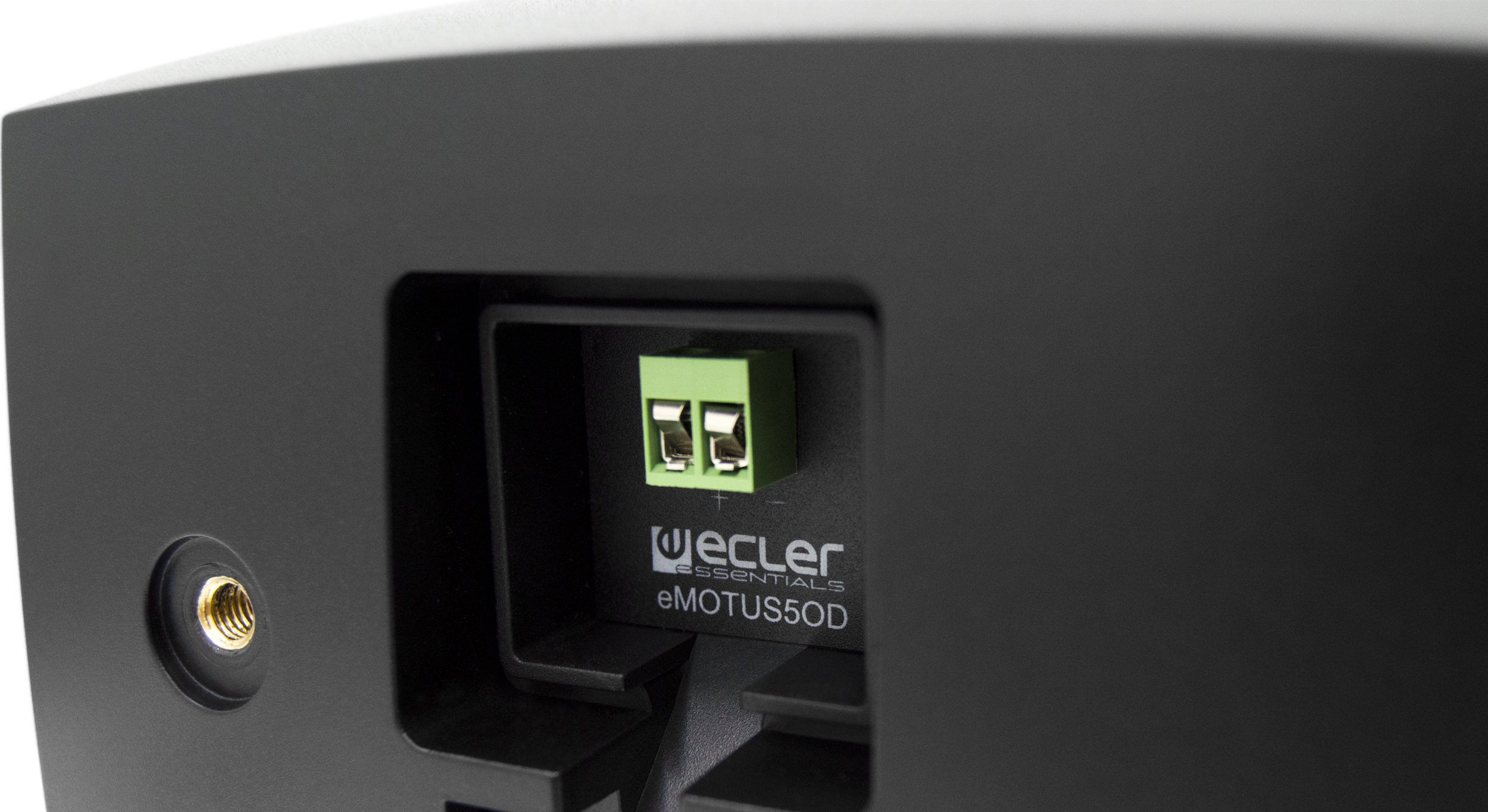

2-terminal input Euroblock connector (input)

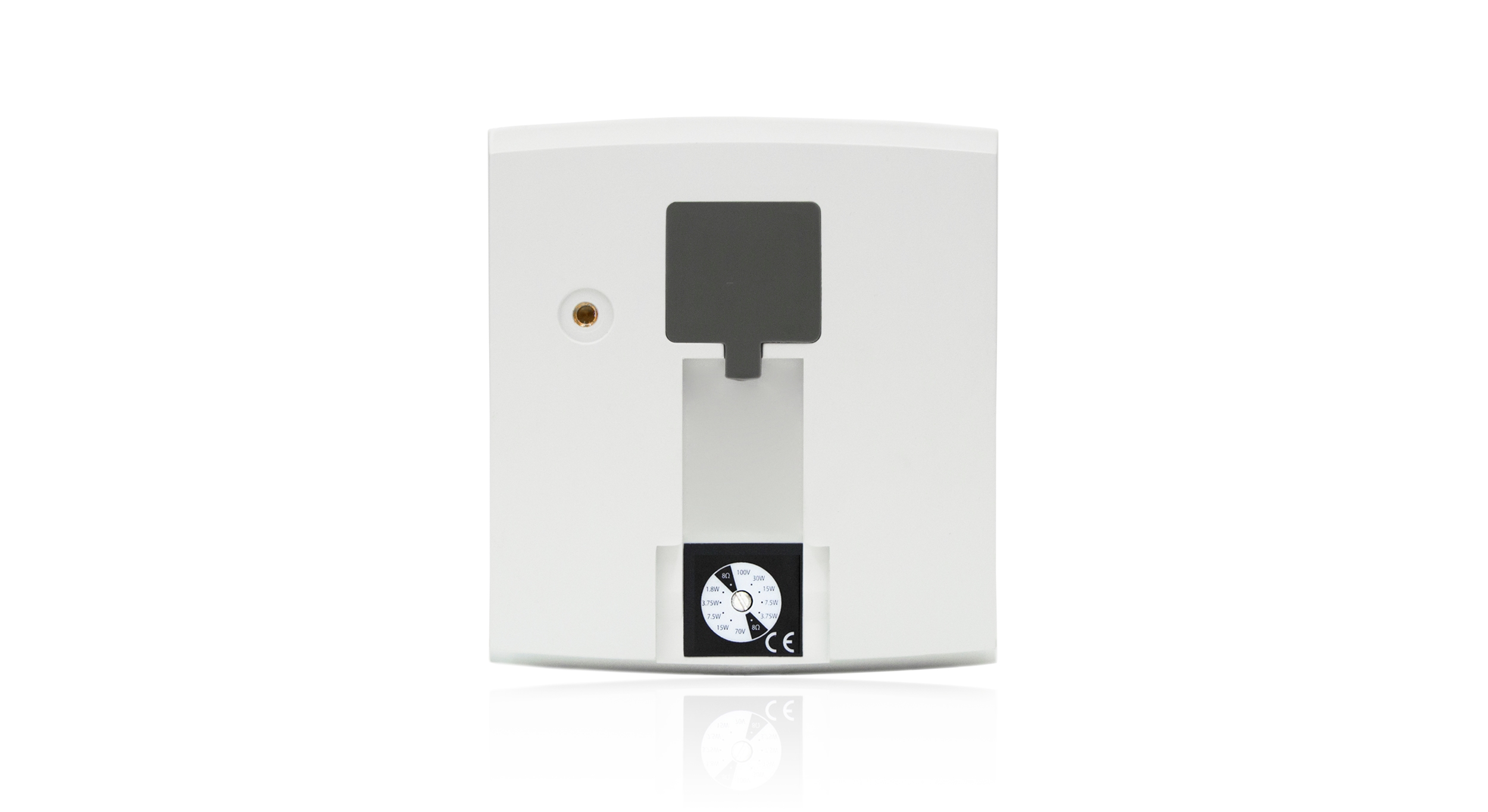

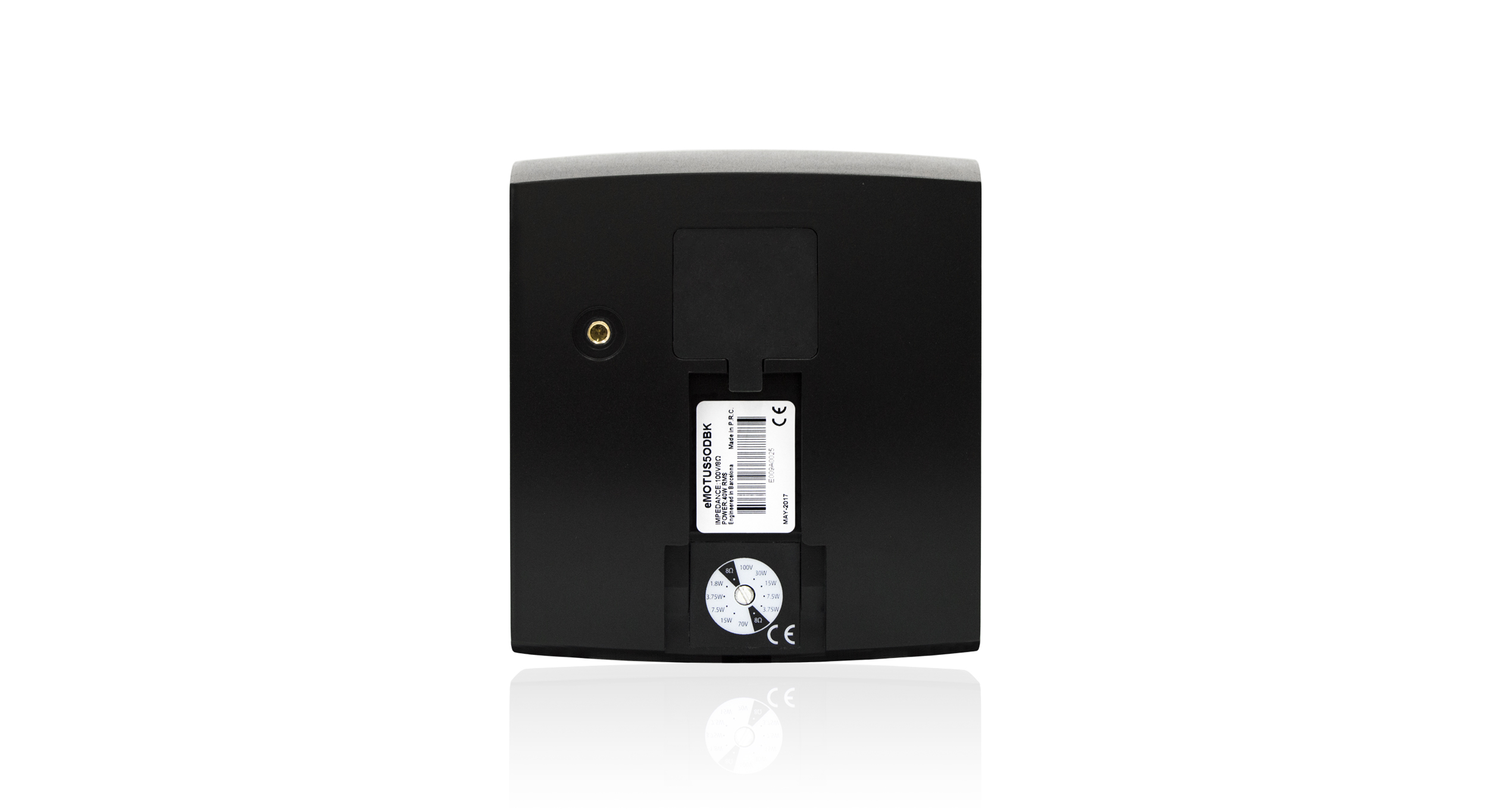

Power type selector
Selectable transformer tap
Installation options
Surface, desktop

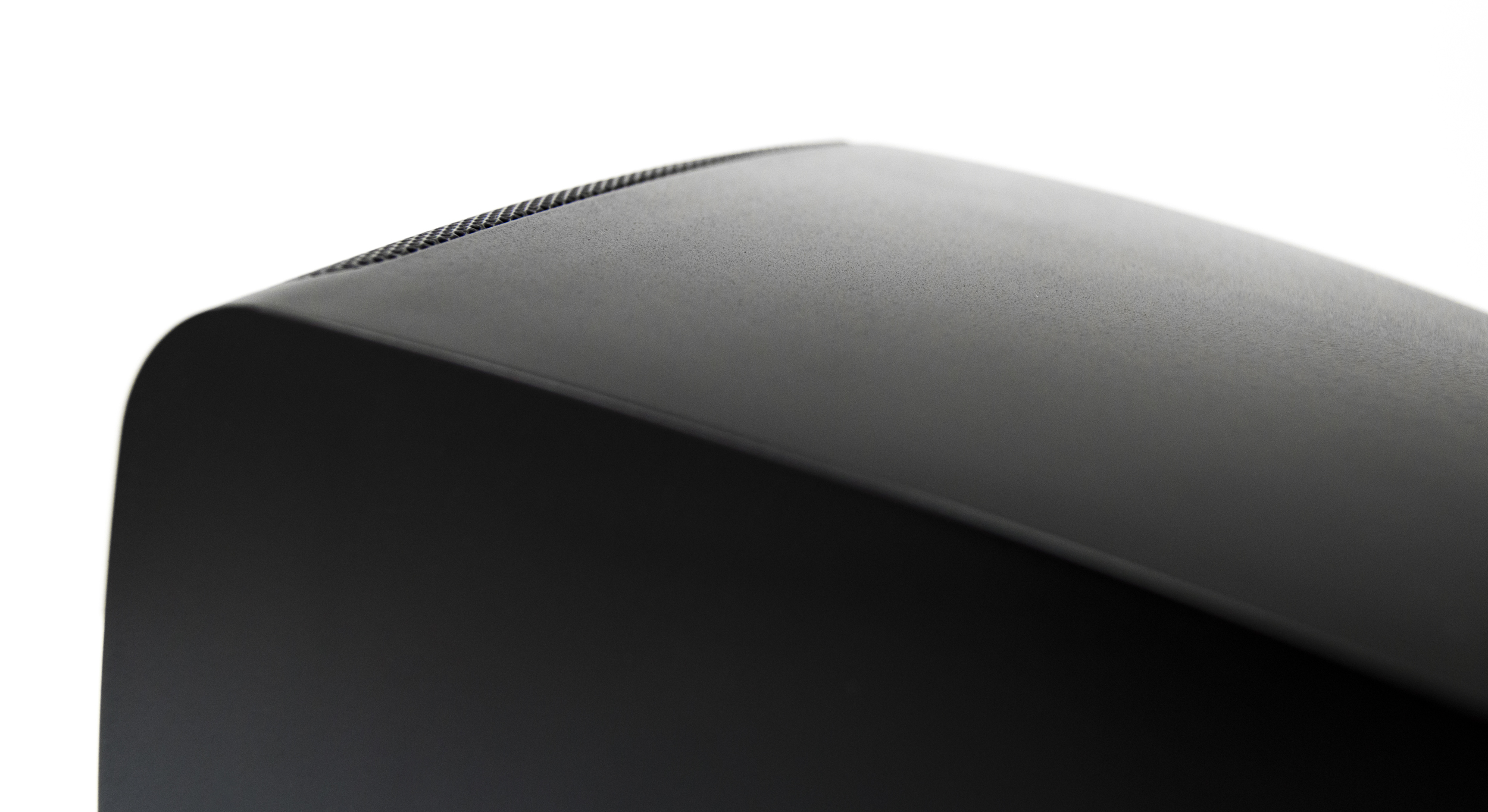

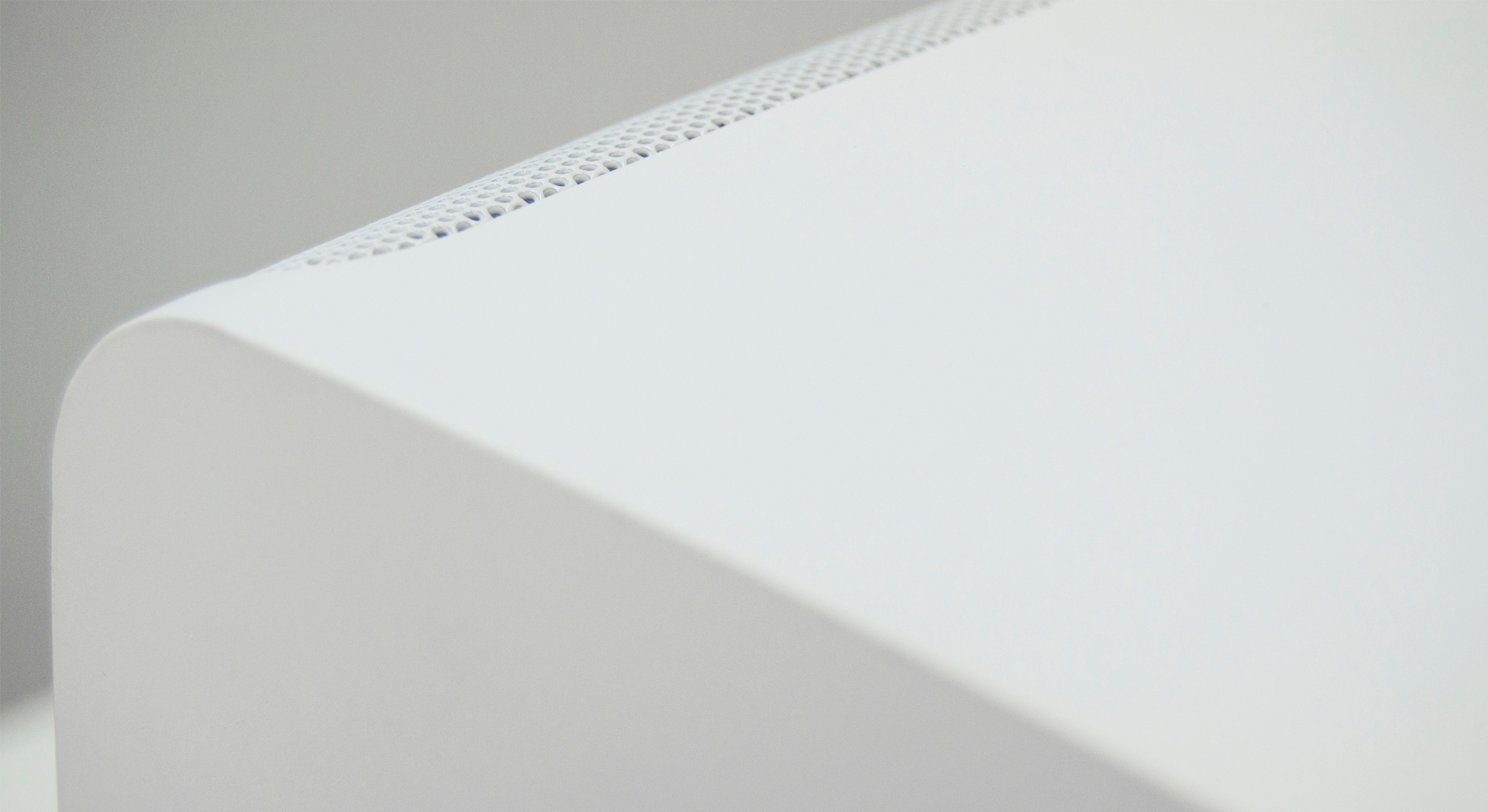

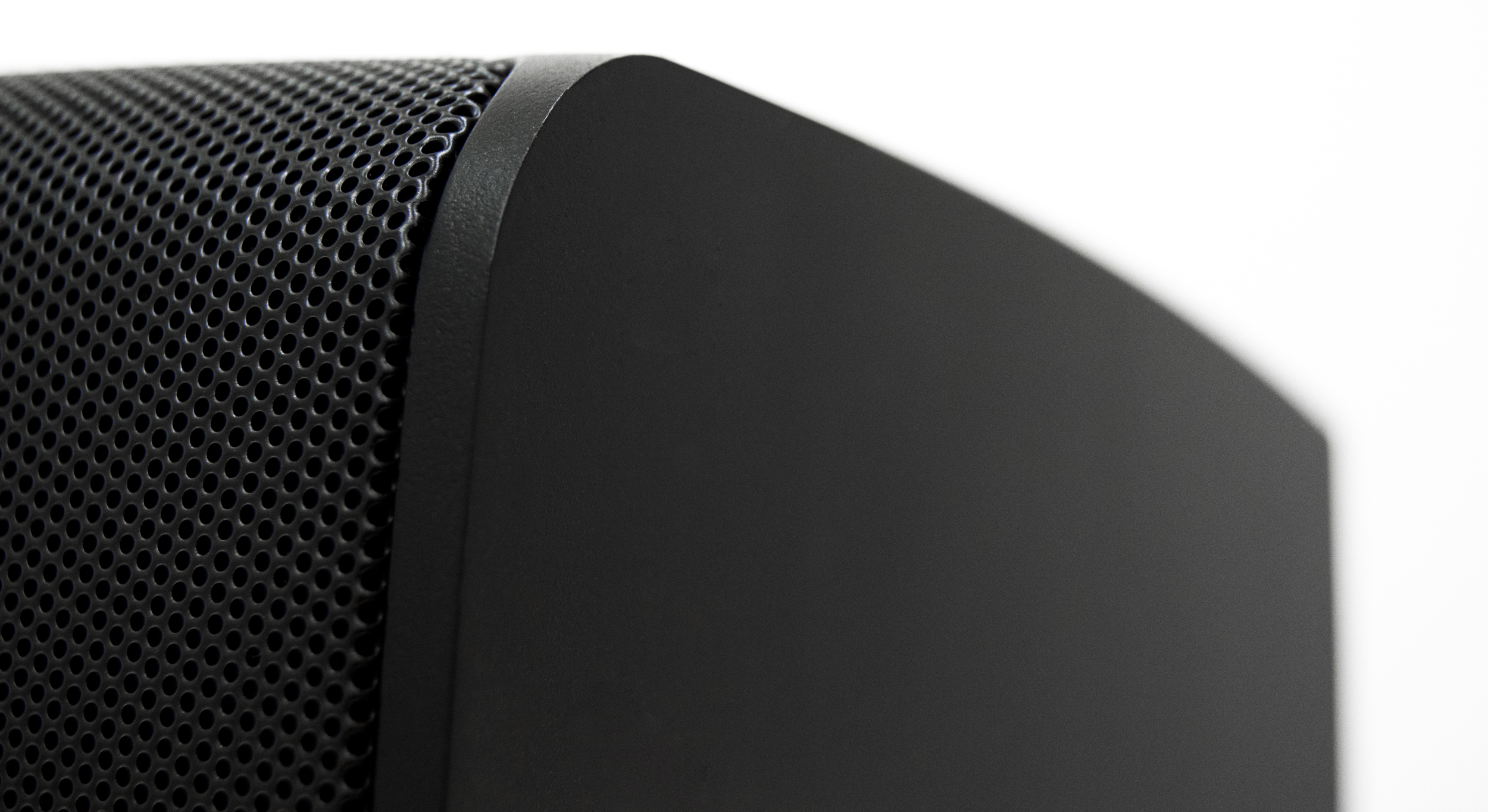

Enclosure material
ABS cabinet

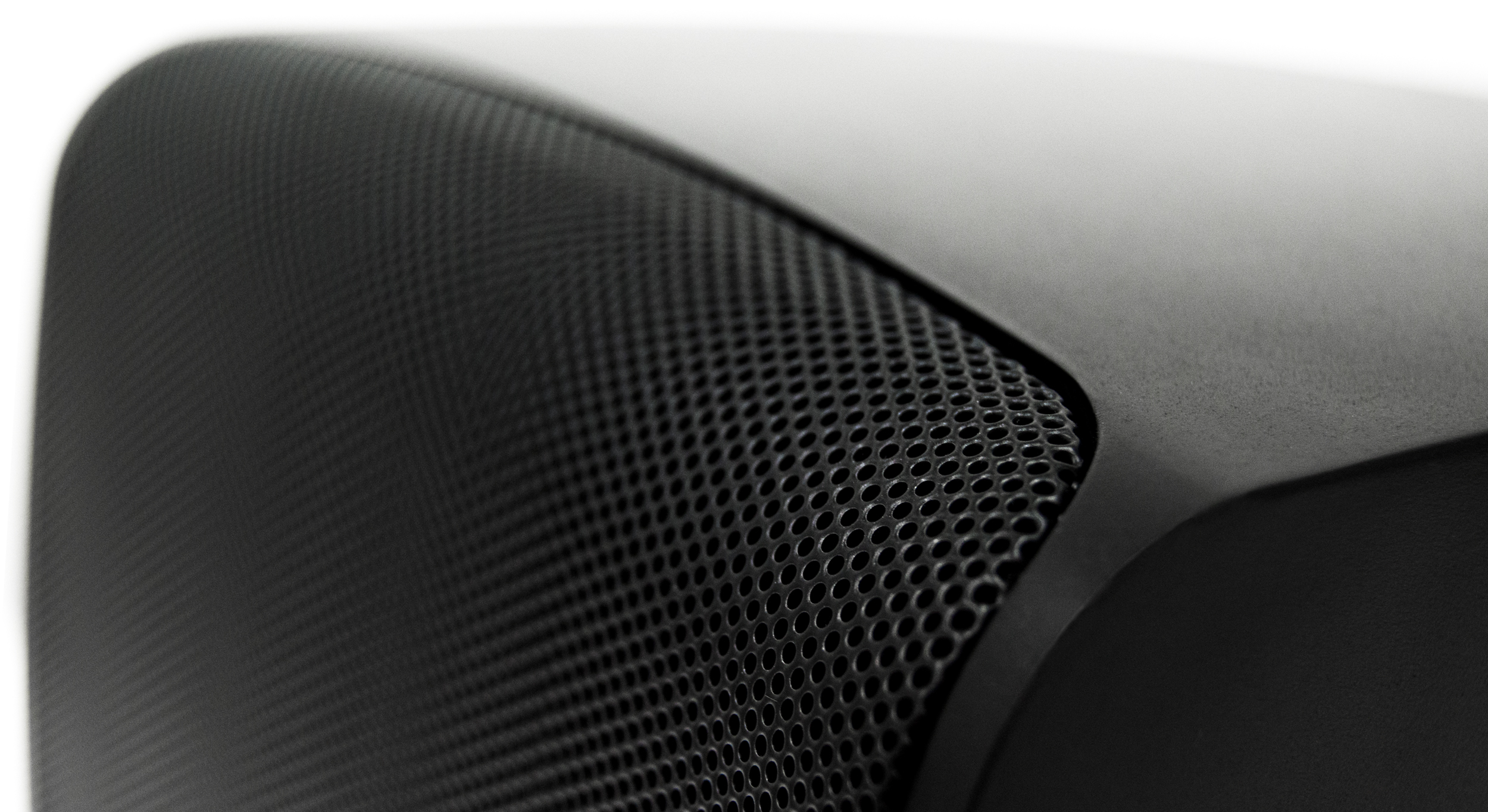

Grille material
Aluminium grille

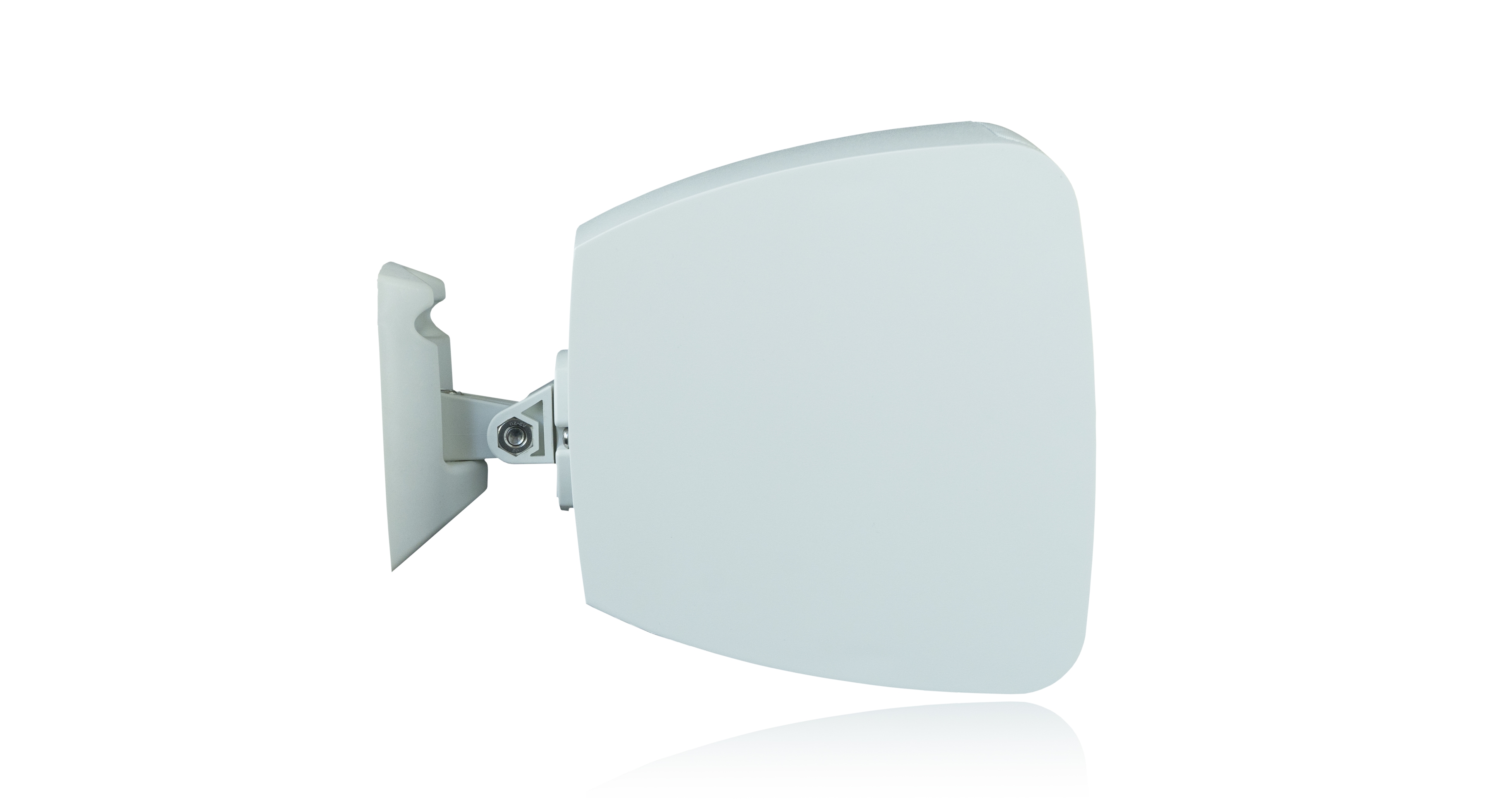

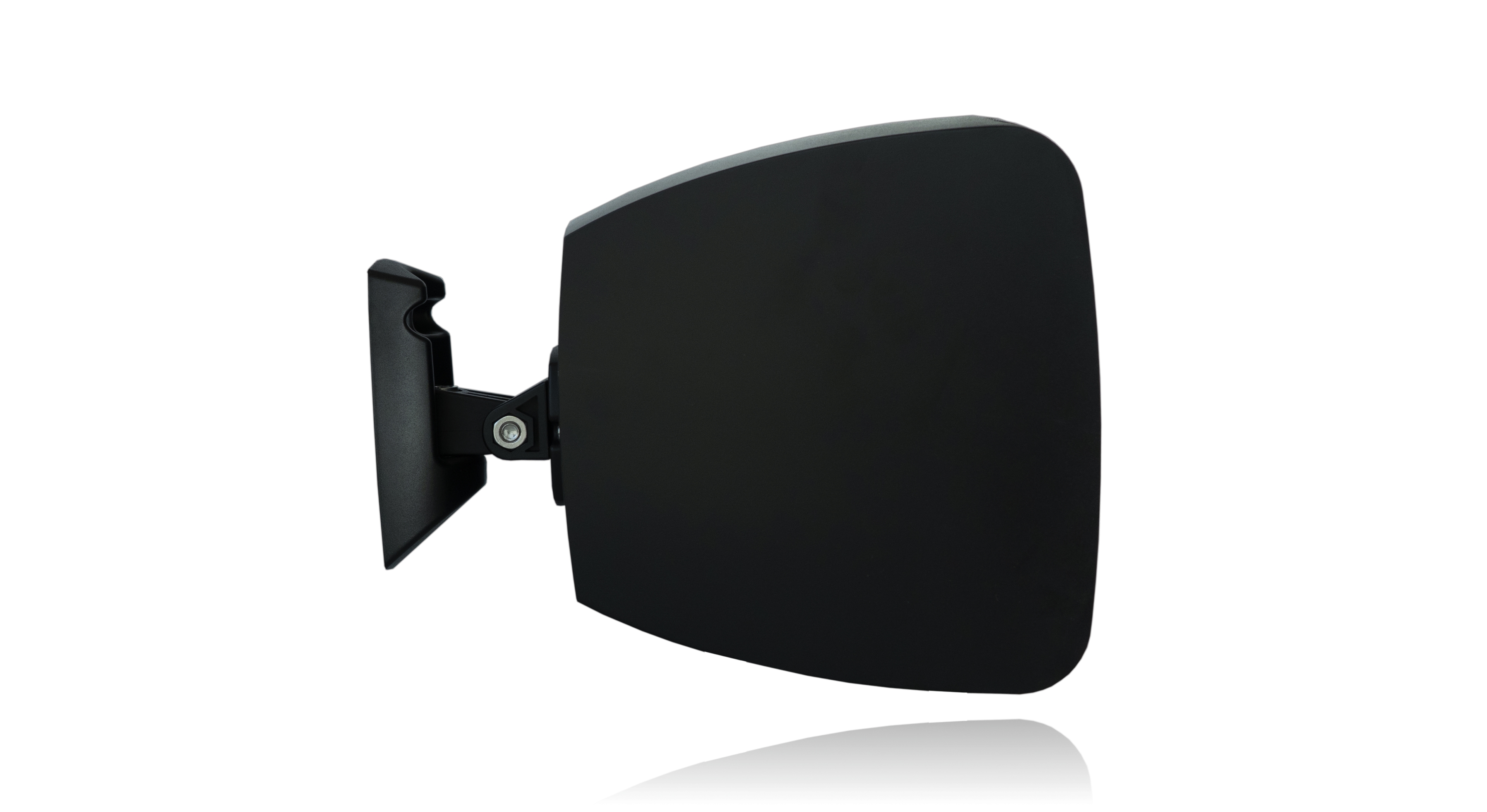

Mounting system
ABS bracket
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Included accessories

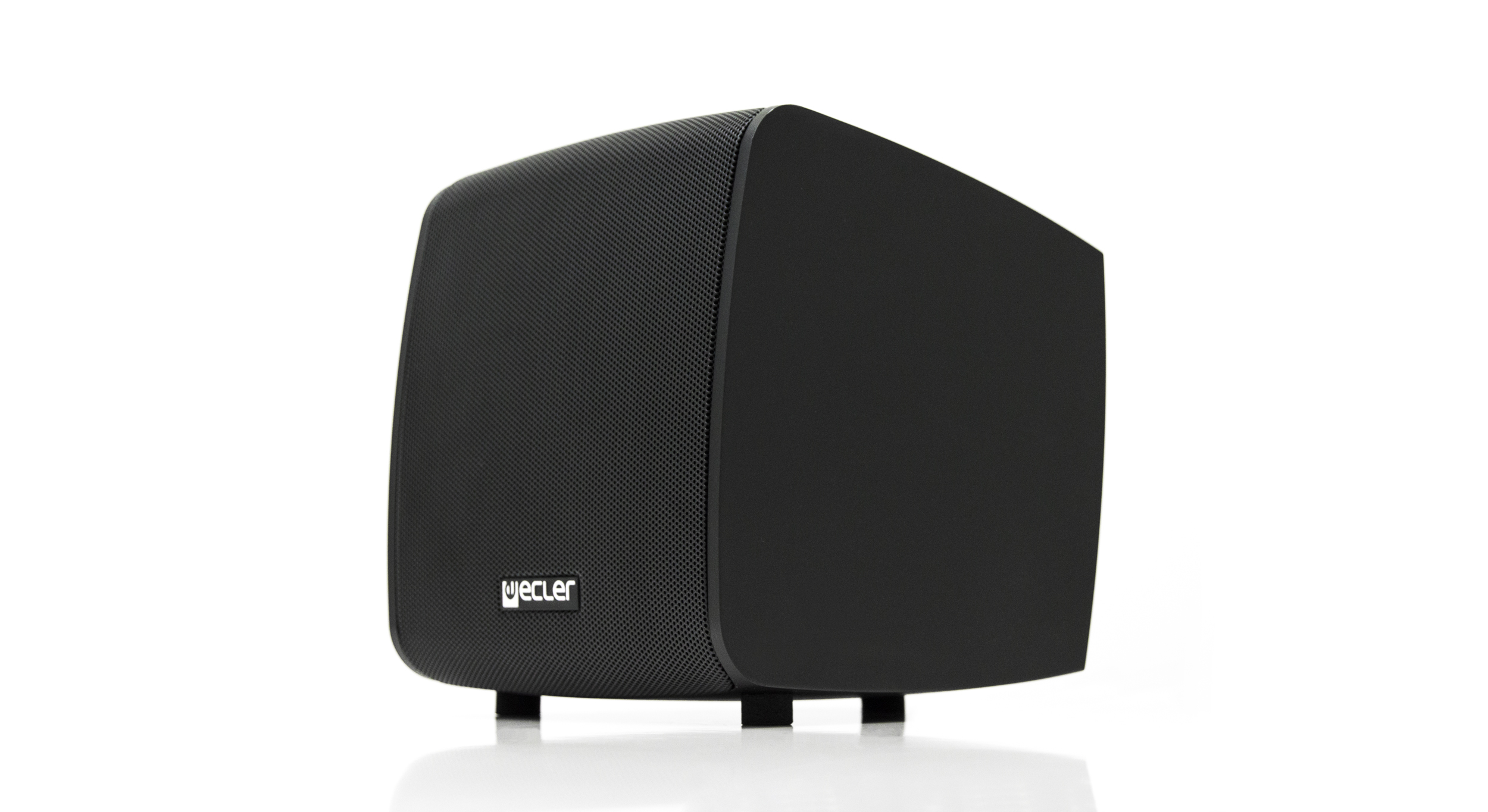

Wall-mount bracket, adhesive legs, back rubber
cover & security steel cable
Optional accessories
PCS124 cluster-mount system
Finished colour
White (RAL 9003) or black (RAL 9005)
Dimensions
Not including brackets:
173 x 180 x 181 mm / 6.8 x 7.1 x 9.8 in. (WxHxD)
Including brackets:
173 x 180 x 248 mm / 7.1 x 6.8 x 9.8 in. (WxHxD)
Weight
Not including brackets: 2.2 kg / 4.9 lb
Including brackets: 2.5 kg / 5.5 lb
Shipping dimensions
230 x 220 x 460 mm / 9.1 x 9.1 x 18.1 in. (WxHxD)
Shipping weight
5.0 kg / 11.0 lb
