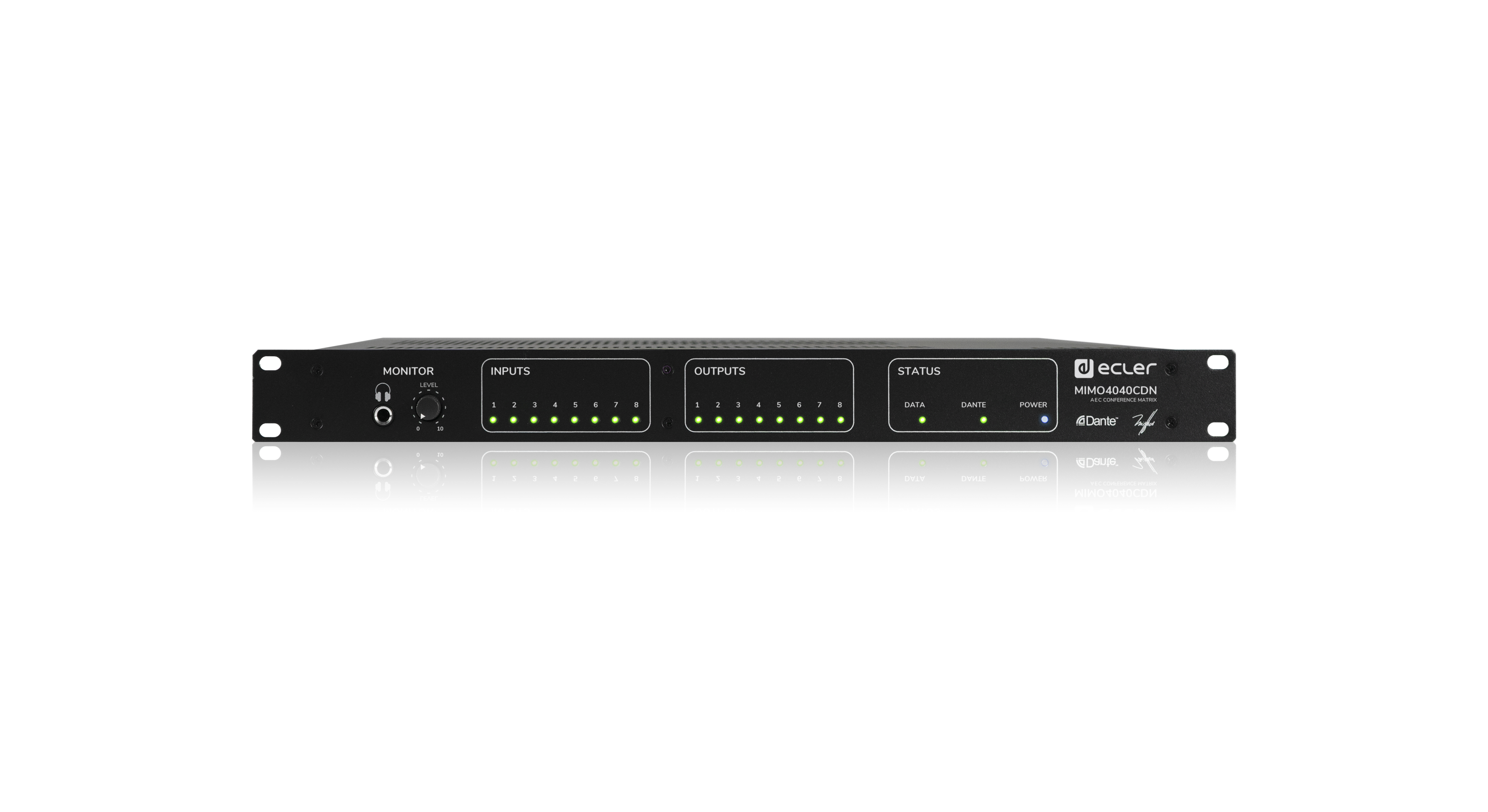

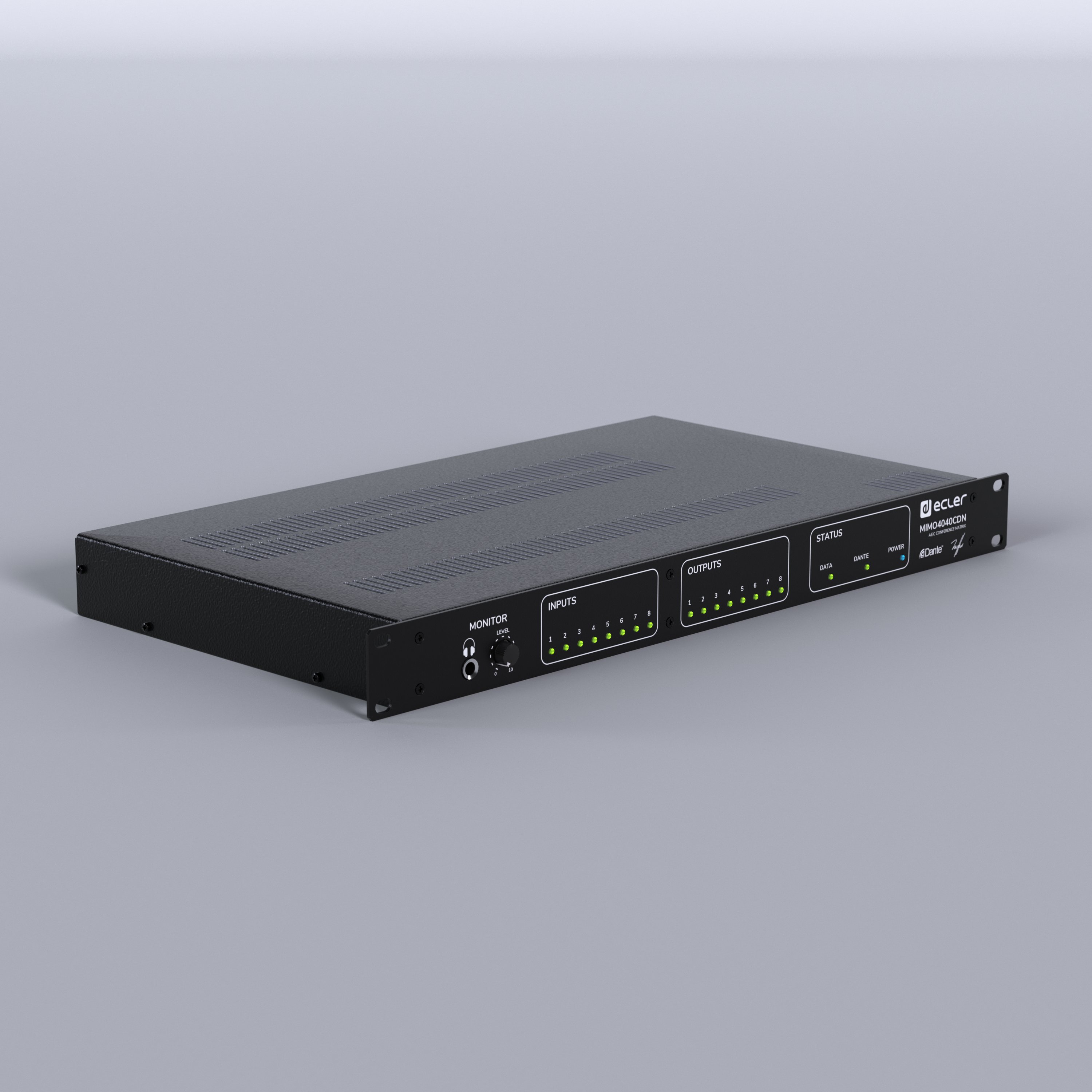

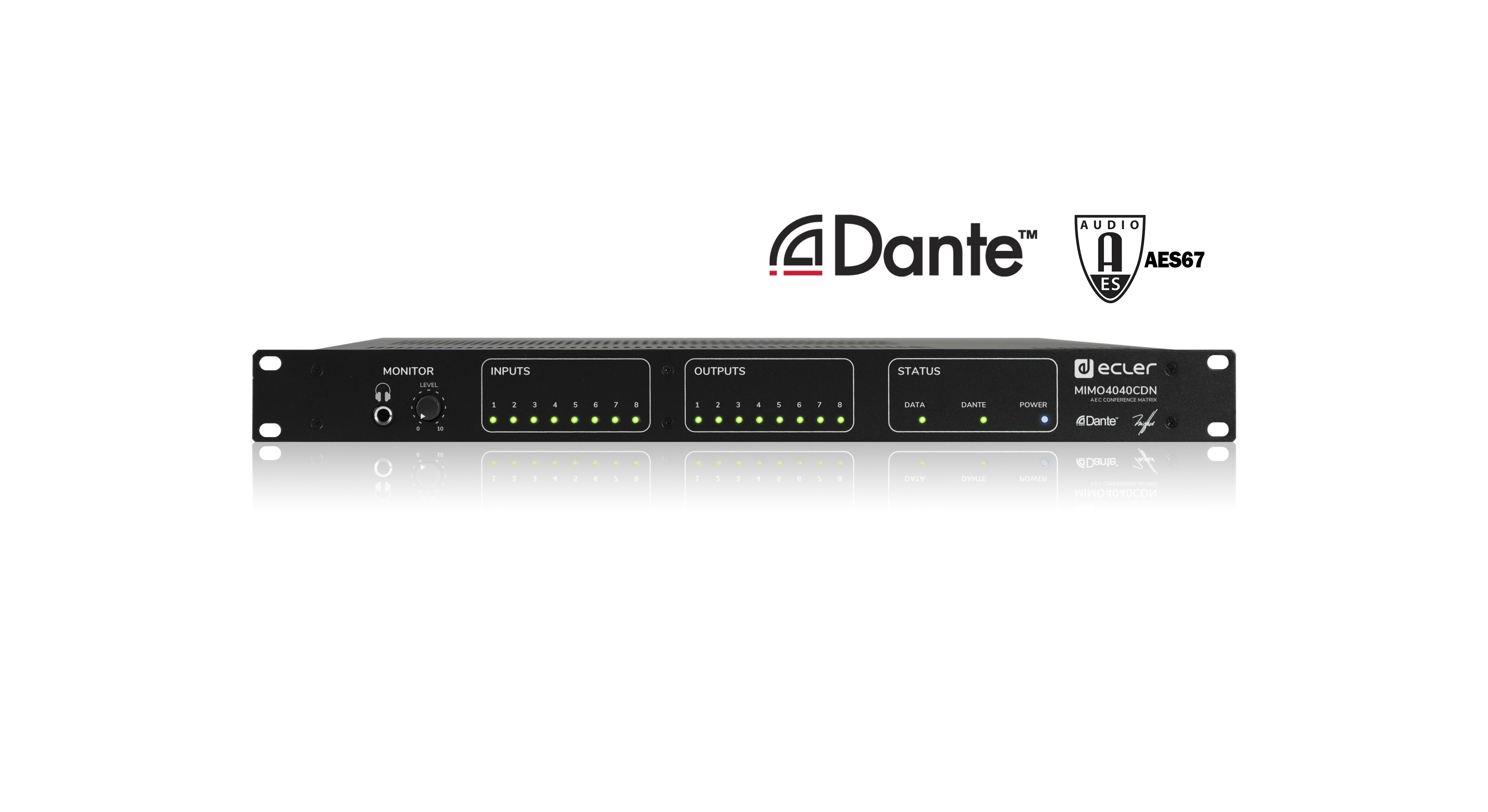

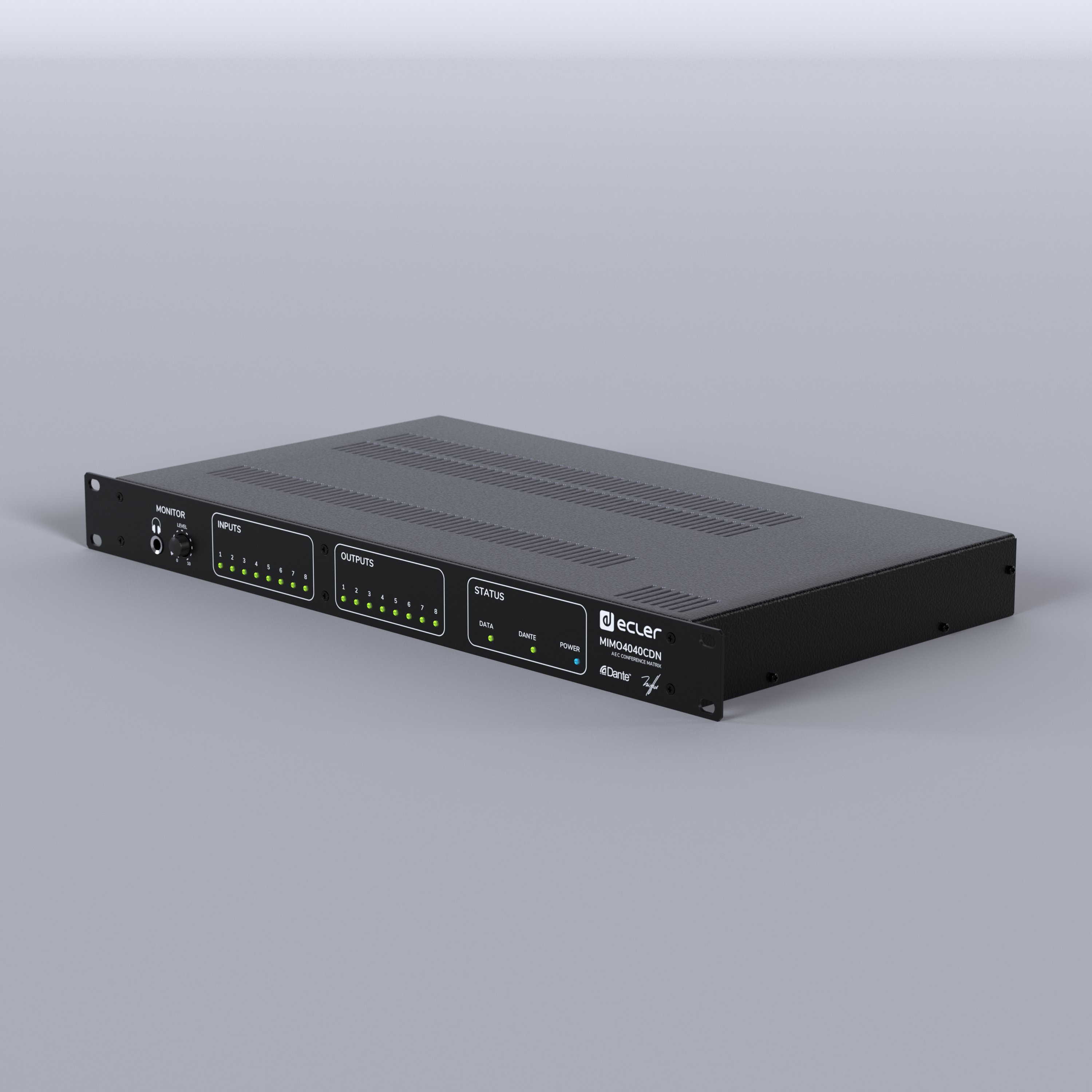

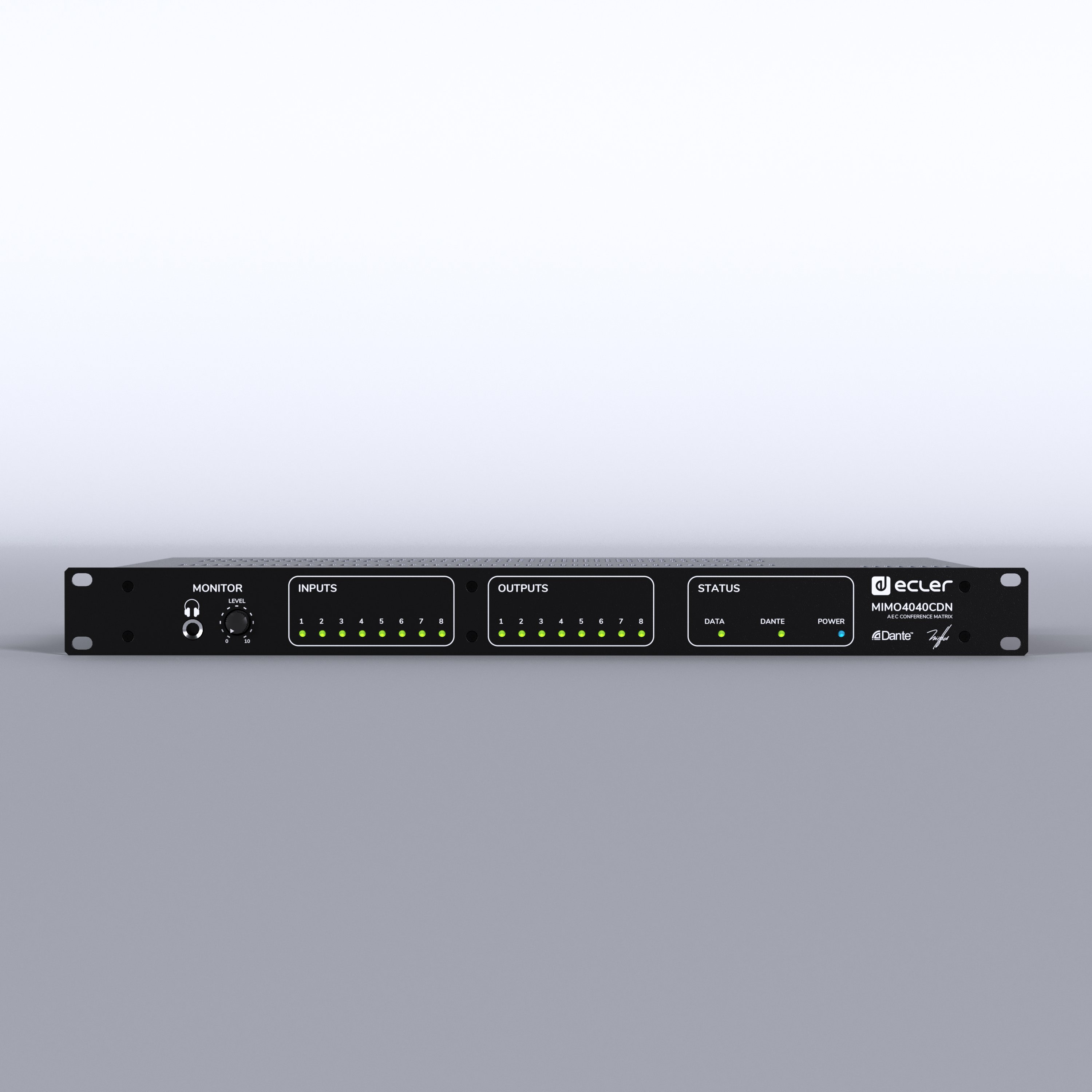

MIMO4040CDN

40x40 | digital matrix | Dante™ | AES67

Digital Matrixes | Reference: CMIMO4040CDN

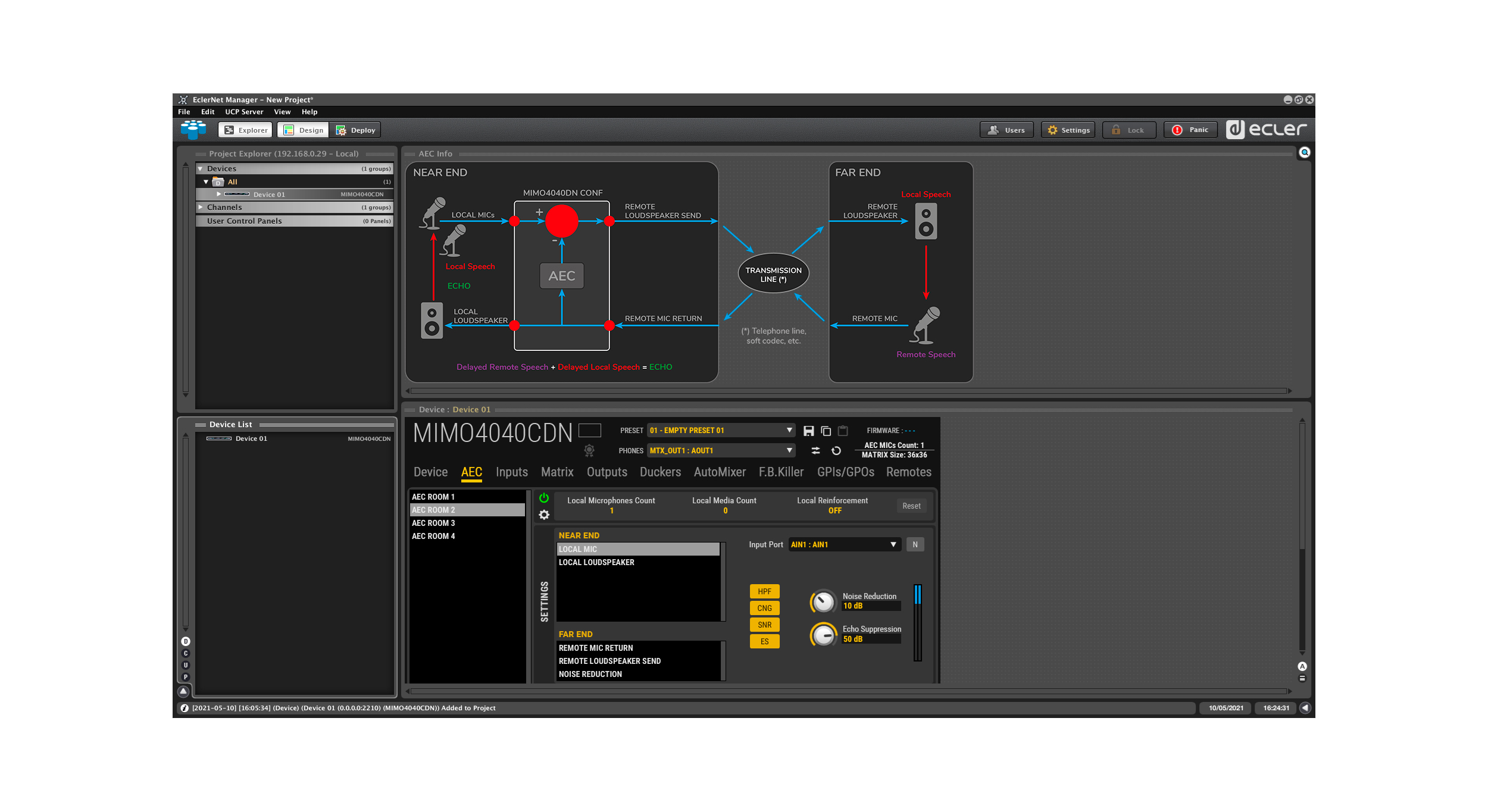

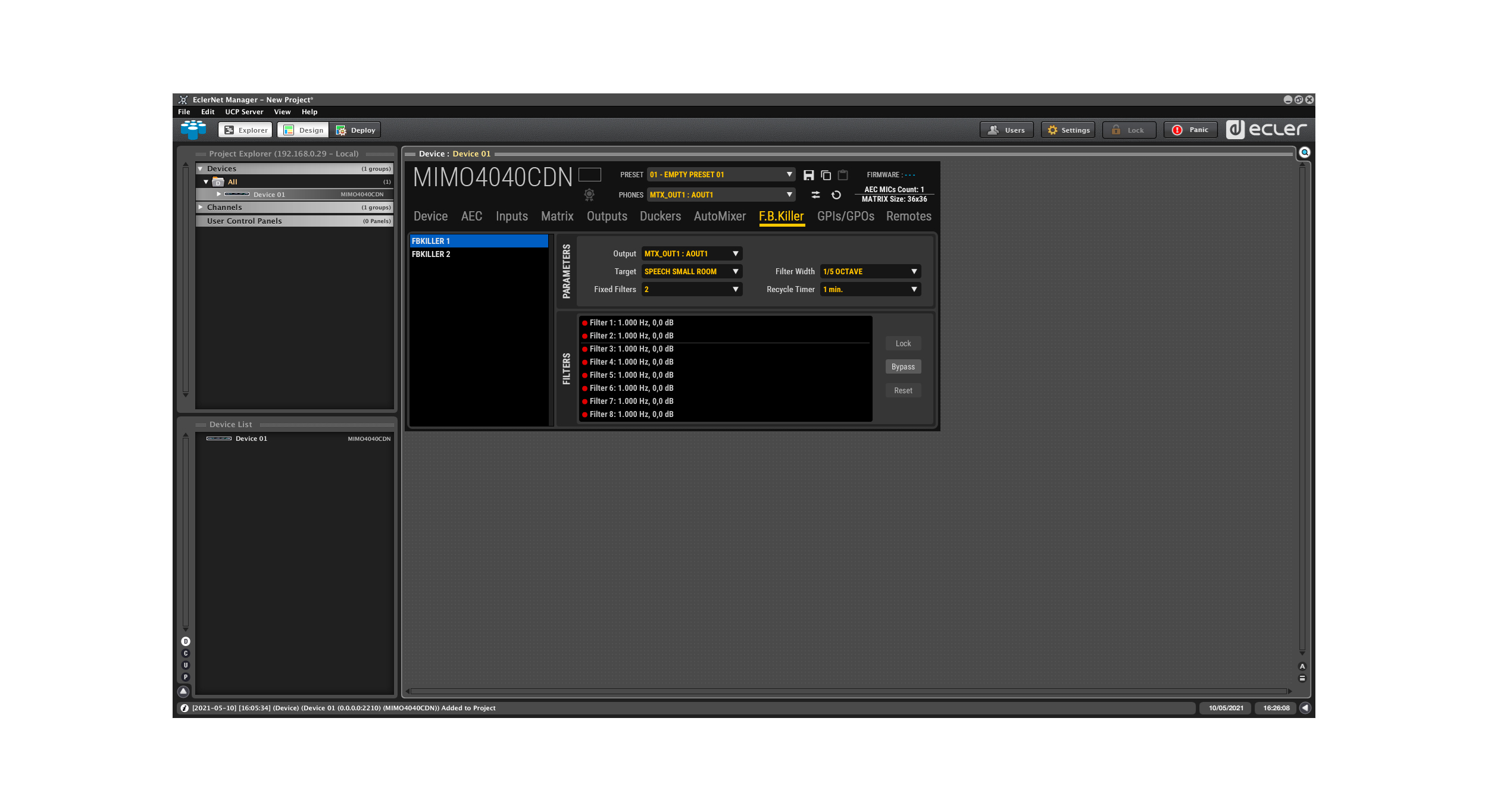

MIMO4040CDN is is a digital audio matrix including a native (full DSP) matrix of 40x40 input and output audio channels total size, specially designed for conference rooms. It includes functions such as AUTOMIXER or FEEDBACK KILLER by default, as well as up to 8 microphone channels with AEC (Acoustic Echo Canceling) processing activated by software licenses.

  • CONFERENCE firmware only (no STANDARD firmware available)

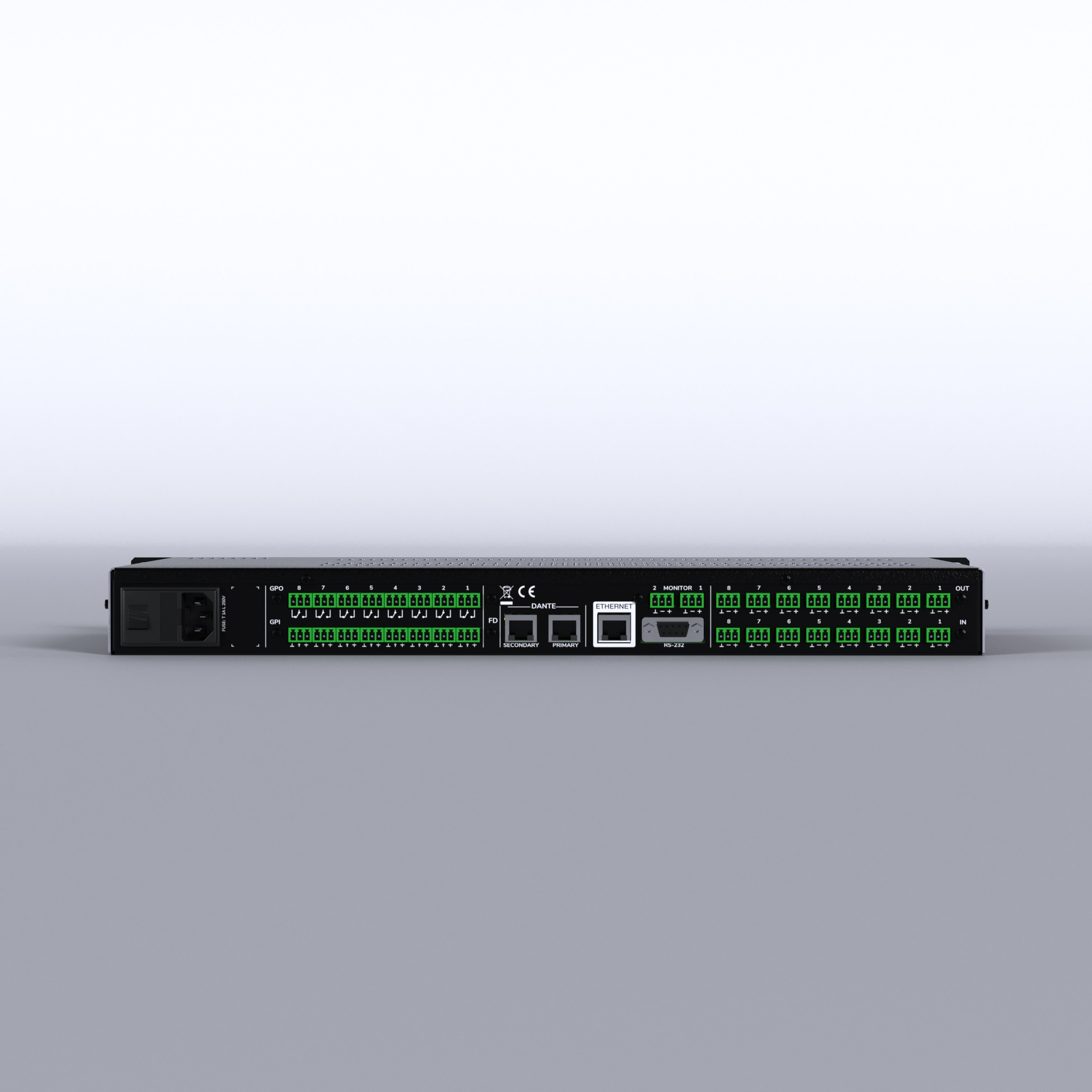

  • 40x40 audio input / output ports available
  • 40 input channels x 40 output channels digital audio native matrix
  • 8 MIC / LINE analogue audio inputs
  • 8 LINE analogue audio outputs
  • 32 Dante ™/AES67 digital input channels
  • 32 Dante ™/AES67 digital output channels
  • 8 GPI ports
  • 8 GPO ports
  • 2 Dante™ interfaces (primary and secondary), available for configuration of redundant Dante ™ networks
  • 1 Ethernet programming and control interface (EclerNet, UCP, TP-NET and WPNET series control panels)
  • 1 serial control port, RS-232 (TP-NET)
  • Embedded project manager and server of the project’s integrated UCP panels
  • Connection of all peripherals directly via EtherNet network, and without local wiring (remote controls WPNET series, WP22DN wall panel Dante™/AES67 interface, etc.)

Applications

Retail   Education   Corporate   Sports & Wellness   Hospitality

Accessories

WP22DN

2x2 | Dante™ | AES67 | PoE | double gang size
View

WPNET4KV

EclerNet Wall Control Panel
View

WPNET8K

EclerNet Wall Control Panel
View
Related solutions
international taunton school ecler audio and video systems

Taunton International School

View

SPA Hotel & Resort Santa Natura Wiskitki

View
Related News

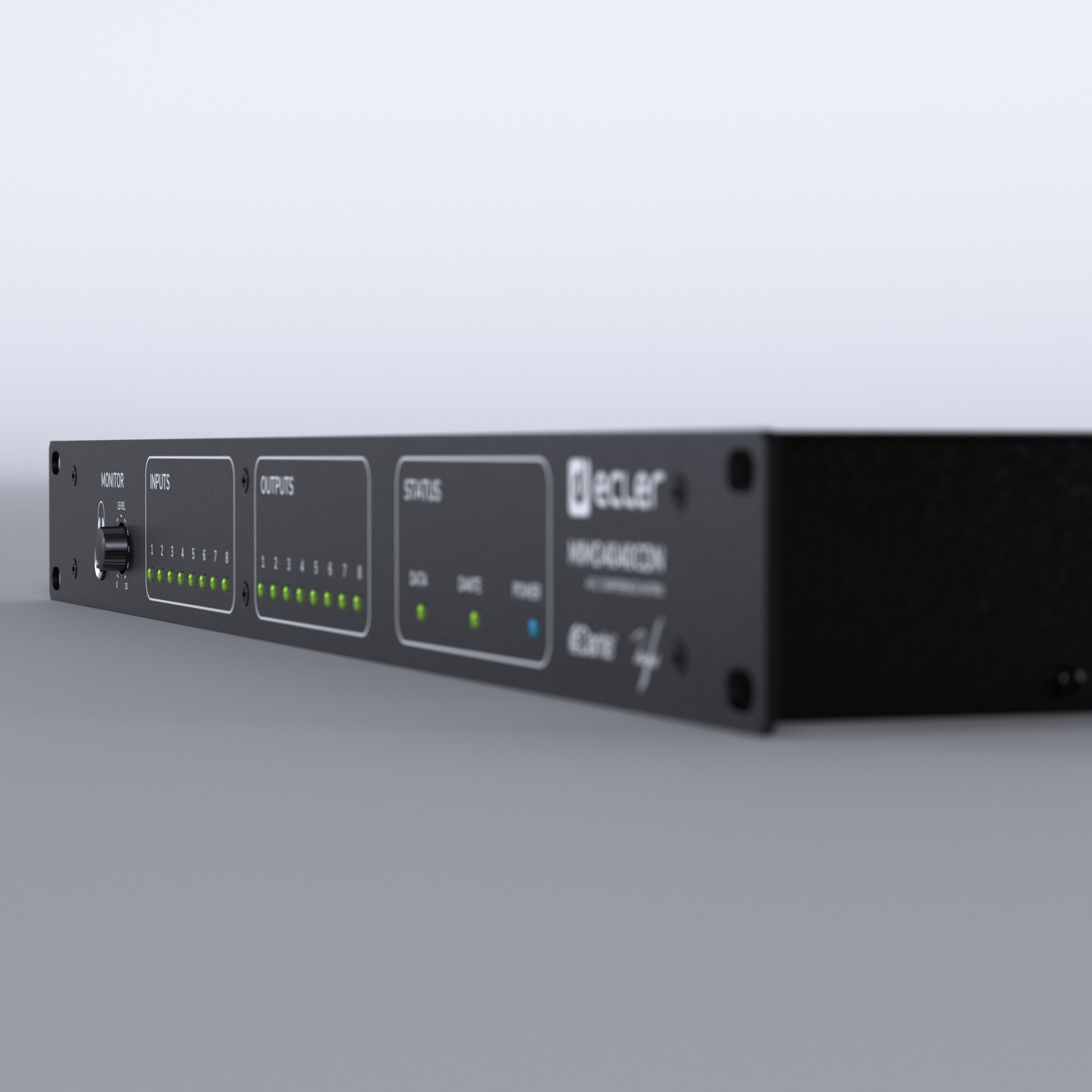

Ecler MIMO4040CDN Tech Persp Detail.jpg
