WP22DN: 2x2 | Dante™ | AES67 | PoE | double gang size. Digital Controls & Panels.

WP22DN

2x2 | Dante™ | AES67 | PoE | double gang size

Digital Controls & Panels | Reference: CWP22DN

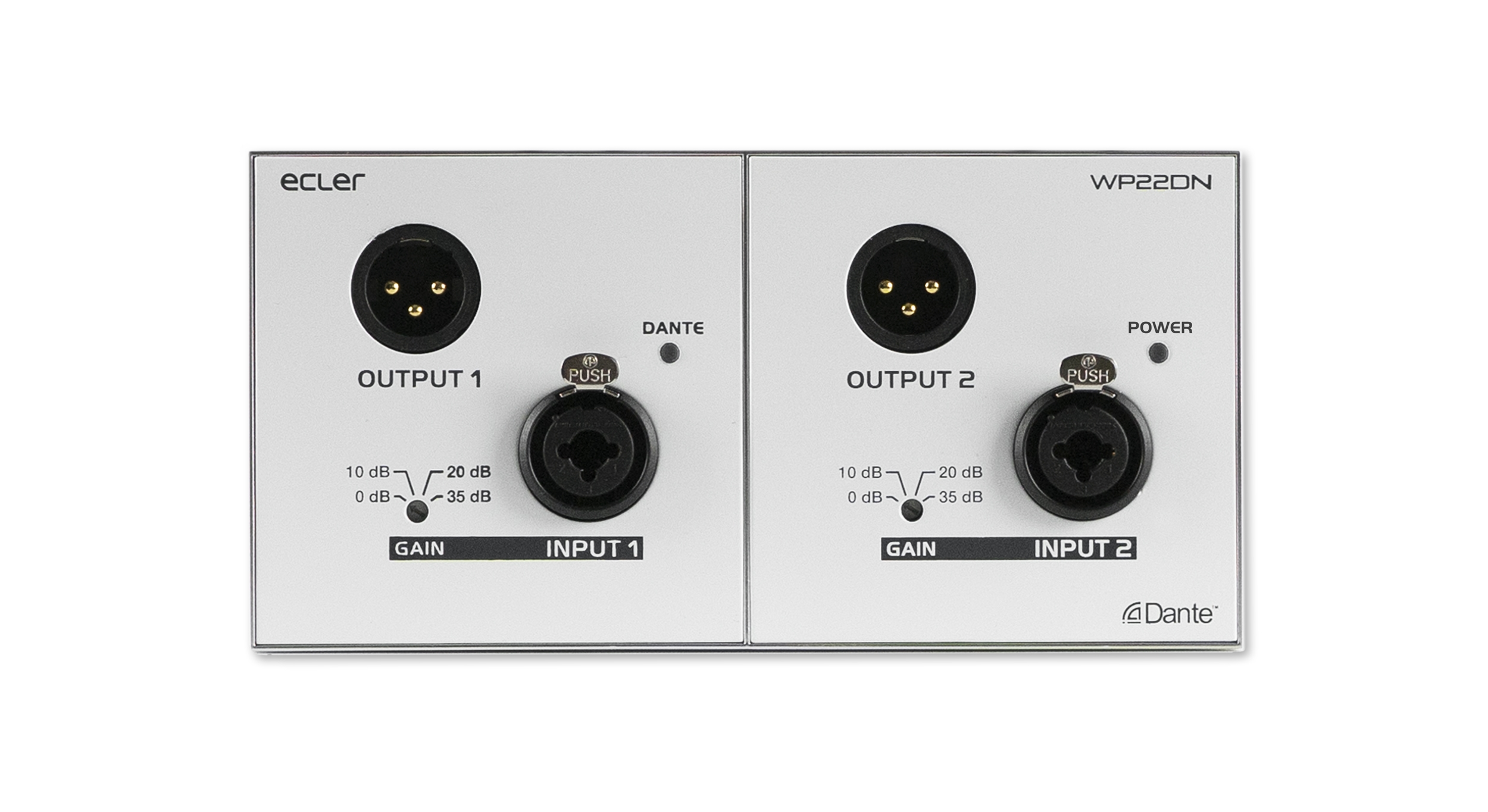

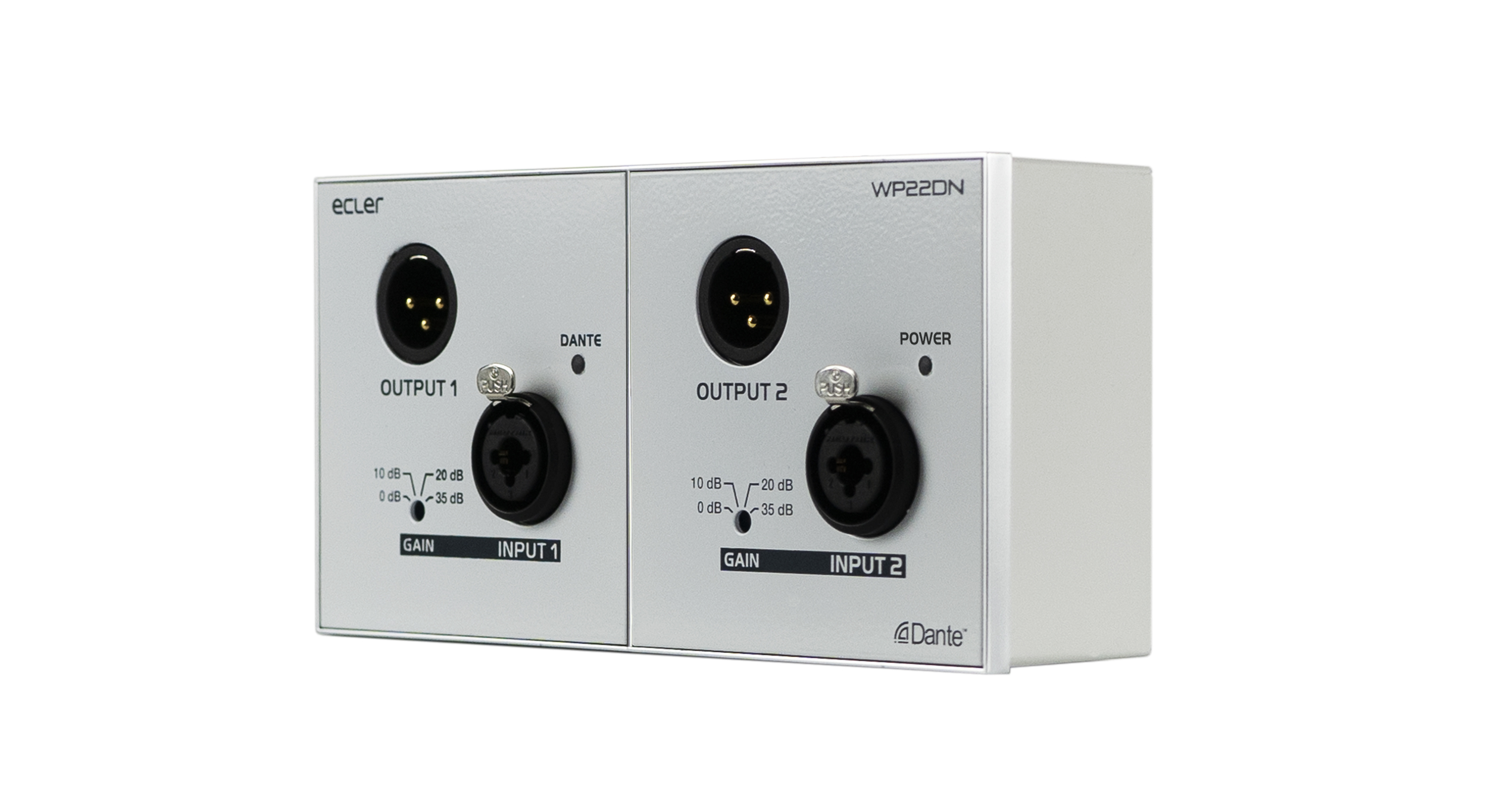

WP22DN is a Dante™ interface in a wall panel format. It features 2 audio MIC/LINE Combo connector inputs in its frontal panel and 2 Dante™ conversion channels either directly or by the sum of channels (stereo to mono conversion). Also, it features 2 analogue outputs with duplicated connectors in XLR format for the front panel and Euroblock on the rear panel, both linked to 2 Dante™ channels coming from the local network.

Dante ™ interface wall panel
PoE power or by local power supply
Ecler Double gang surface mount box included

Applications

Retail Education Corporate Sports & Wellness Hospitality

SYSTEM

Number of output channels

2 + 2 DANTE™/AES67

Number of input channels

2 MIC/LINE + 2 DANTE™/AES67 conversion channels

MIC INPUTS

Phantom power

+48VDC, 5mA max. ON / OFF by DIP SWITCH

LINE INPUTS

Input connection type

2 x XLRF + jack Combo

Input Gain

0 / 10 / 20 / 35dB

Input impedance

Balanced > 4kΩ

Max input level

+10dBV / +12dBu @ 0dB Gain

CMRR

65dB typ. @ 20Hz- 20kHz

THD + Noise

<0.004% @ 1kHz, 0dBV Gain

LINE OUTPUTS

Output connection type

2 XLR M External, 2 Euroblock Internal

Max output level

+10dBV / +12dBu @ 0dB Gain

Frequency response

5Hz to 24kHz (-3dB)

Flatness

better than ±0.1dB

THD + Noise

<0.004% @ 1kHz

Output noise floor FFT

better than 110dB (20Hz - 20kHz)

AUDIO OVER IP

Protocols

Dante™ / AES67

Number of digital input ports

Number of digital output ports

Interfaces

1 x RJ45

Latency

1 / 2 / 5 ms (selectable)

AUDIO CONVERTERS

Sampling rate

48 kHz

Resolution

24 bit AKM

Latency

ADC 0,81ms
DAC 0,56ms

Dynamic range

ADC 110dB
DAC 115dB

MONITORING AND CONTROL

LED indicators

Power ON, Dante

CONNECTIVITY

Ethernet

1 RJ-45 connector, cable: 100m CAT5e/CAT6
Supports PoE

ELECTRICAL

Power supply

External, 12 - 24VDC

PoE

Class 0 802.3af Poe PD compliant

Max power consumption

2.7W from External power supply
2.8W/60mA from PoE

PHYSICAL

Type

Wall panel interface with DANTE™/AES67 digital audio transport protocols compatibility

Format

Double gang size

Installation options

Wall

Operating temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Operating humidity

<85% HR

Storage temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Storage humidity

<90% HR

Included accessories

Double set of front panel plates, Magnet for front plates removal, Ecler Double gang surface mount box, Euroblock aerial connectors, Double frame, screws for fixing to surface

Dimensions

170 x 85 x 40 mm / 6.7 x 3.3 x 1.6 in. (WxHxD)

Weight

0.4 kg / 0.9 lb

Shipping dimensions

120 x 210 x 80 mm / 4.72 x 8.27 x 3.15 in. (WxHxD)

Shipping weight

0.7 kg / 1.54 lb
