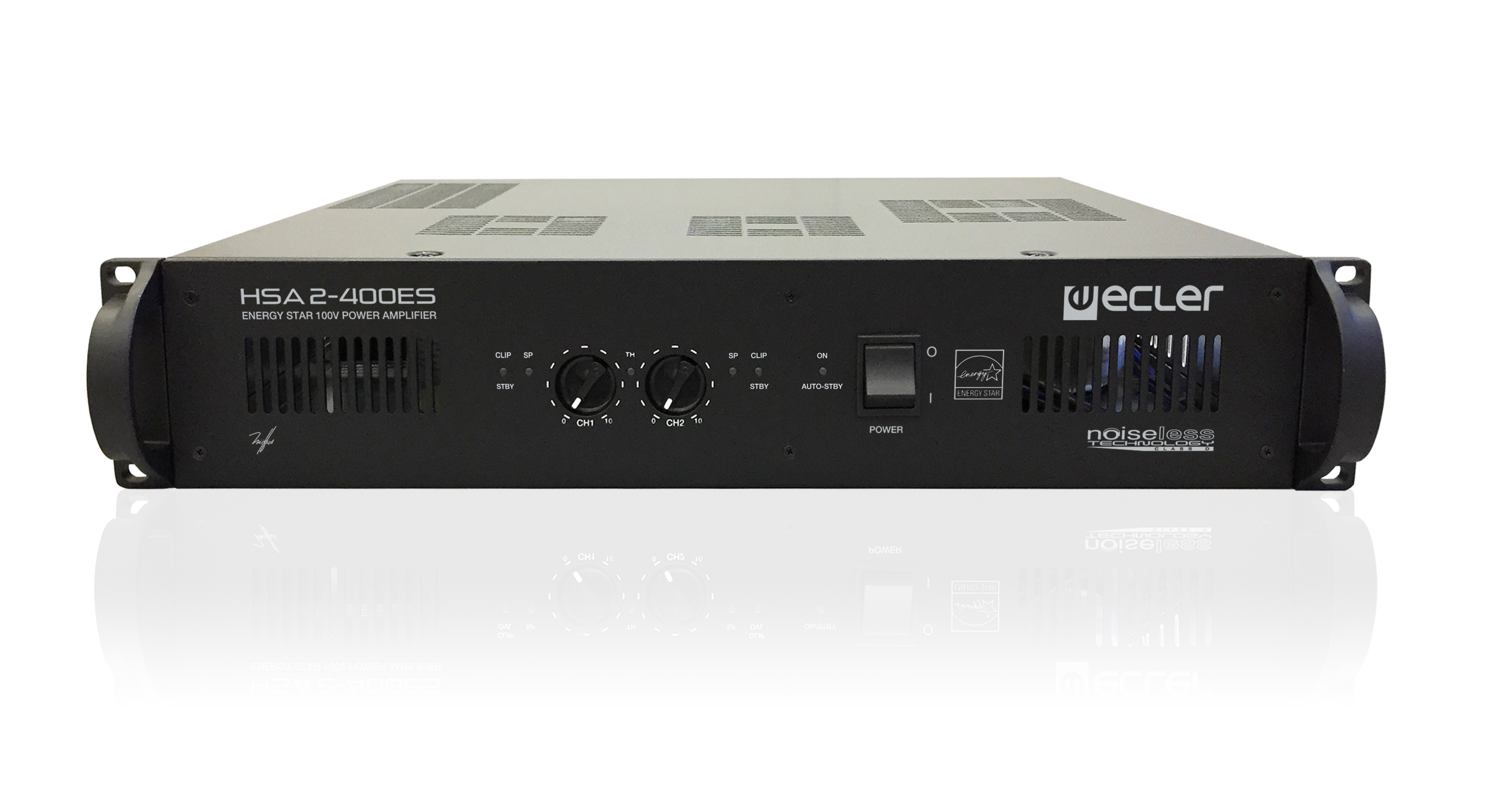

HSA2-400ES: 2x400 WRMS | Energy Star | stereo

HSA2-400ES

2x400 WRMS | Energy Star | stereo | amplifier

Commercial Amplifiers | Reference: CHSA2400ES

HSA2-400ES is a stereo amplifier with low and high impedance powered outputs. A very high efficiency and its auto stand-by function provide this amplifier with a true green profile (Energy Star© Certified).

2 mono balanced inputs (XLR and Euroblock terminals)
2 x 400 W RMS output (4Ω and 70/ 100V line level)
Euroblock output connectors
2 REMOTE volume ports (0-10VDC), compatible with WPa series wall panels
Energy Star© Certfication
High efficiency, auto stand-by function and convection cooling (fanless, 100% silent)

Applications

Retail Education Corporate Hospitality

CHANNELS

Number of output channels

Output connection type

Euroblock

Output configuration

2 x 400 W RMS output (4Ω and 70/ 100V line level)

Number of input channels

Input connection type

XLR, Euroblock

Input configuration

Balanced inputs

OUTPUT POWER - All channels driven @ 1%THD

Max output power @ 4Ω

350W

Max output power @ 8Ω bridge mode

700W

Max output power @ 100V

400W @ 25Ω

SIGNAL

Input sensitivity

0dB

Input impedance

>20kΩ (10kΩ unbalanced)

Frequency response

20Hz – 40kHz (-1dB, -3dB)

THD + Noise

<0.05% @ 1 kHz Full Power

SNR

>85dB @ 1W/4Ω, 20Hz – 20kHz

Crosstalk

>55dB @ 1 kHz

CMRR

>55dB

Damping factor

>360 1kHz @ 8Ω

ELECTRICAL

AC mains requirement

115V/230V @ 47-63Hz. Voltage changed internally (NOT BY SWITCH)

AC mains connector

AC socket connector (IEC)

POWER CONSUMPTION

Power Consumption (1/3 POWER, @ 4Ω all channels driven)

pink noise, 334W

Power Consumption (1/8 POWER, @ 4Ω all channels driven)

pink noise, 143 W / 204 VA

Power Consumption (IDLE)

25 W

Power Consumption (STBY/SLEEP)

0.5 W

TECHNOLOGIES

Energy saving

Auto standby function

Efficiency

85% @ max power

Cooling

Convection (fanless)

PROTECTIONS

AC protection

DC protection

VHF protection

Short-circuit protection

Yes

Clip limiter

Yes

Long term limiter

Thermal protection

Yes

REMOTE CONTROL CONNECTIONS

GPIs

x2 GPIs (0-10VDC) for volume control

SETTINGS

Attenuators

Front panel knobs per channel

Filters

50Hz 3rd order Butterworth High-Pass filter

Output settings

Lo-Z/Hi-Z outputs

Auto standby function

Rear panel switch

Auto standby time

≤120s

Power ON/OFF

Front panel switch & indicator

MONITORING

Signal Present

SP LED (Green) per channel

Cliping

CLIP LED (Red) per channel

Standby

STBY LED (Orange) per channel

Thermal

TH LED (Red)

PHYSICAL

Operating temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Operating humidity

<85% HR

Storage temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Storage humidity

<90% HR

Installation options

19" rack format (2RU)

Optional accessories

WPm series wall panels

Dimensions

482.6 x 88 x 373 mm / 19 x 3.46 x 14.68 in. (WxHxD)

Weight

16.4 kg / 36.15 lb

Shipping dimensions

510 x 200 x 570 mm / 20.1 x 7.88 x 22.45 in. (WxHxD)

Shipping weight

19.3 kg / 42.55 lb
