DN44BOB

4x4 | Dante™ digital audio interface

Digital Matrixes | Reference: CDN44BOB,CDN44BOBC

Download image

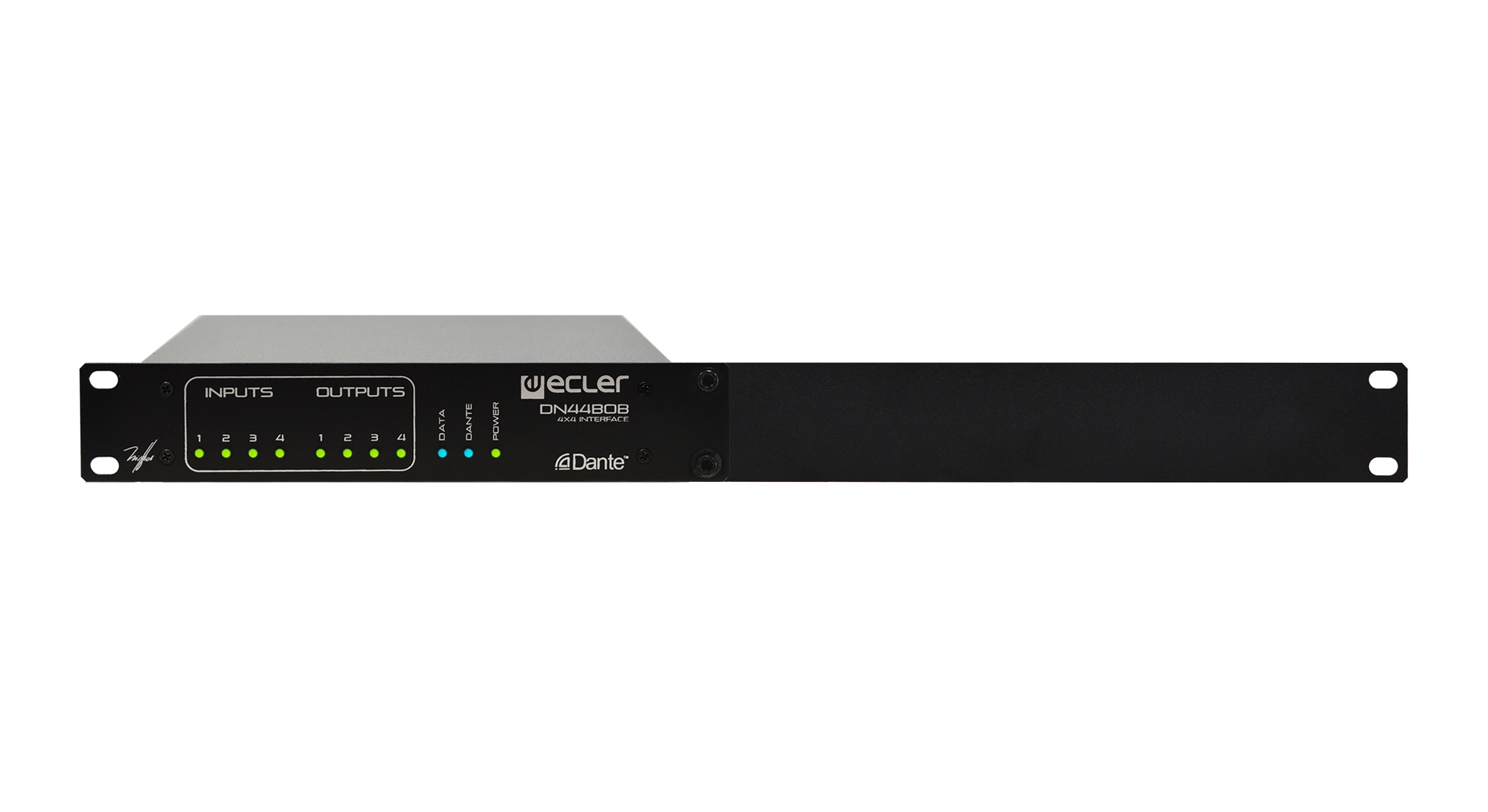

DN44BOB is a 4 inputs and 4 outputs DANTE (Audio Over IP) Break Out Box. It allows to convert 4 analogue audio signals into 4 DANTE channels and send them into an Ethernet LAN, as well as to take 4 DANTE channels from the Ethernet network and convert them to analogue audio signals. It includes 4 GPI control ports (0-10VDC) and 4 GPO control ports (NO/NC relays). Can be used together with EclerNet DANTE ready products or as a stand-alone DANTE interface, together with any audio device including analogue audio inputs and/or outputs.

Ethernet, interface, DANTE audio and EclerNet compatible
4 MIC/LINE balanced inputs, with Phantom Power and 3 sensitivity levels, Euroblock connector
4 balanced LINE Outputs, Euroblock connector
4 GPI ports (0-10VDC)
4 GPO ports, NO / NC
Rack-mount kit included: 1UHRMKIT + PUM3- Rackmount accessories to mount 2 half- width RU devices in 1 standard width RU space or to mount 1 half- width RU device in 1 standard width RU space

Applications

Retail Corporate Sports & Wellness Hospitality

Digital engine

Processor

32 bit, 44.1/ 48 / 88.2 / 96 kHz

Audio converters

Sampling rate

44.1/ 48 / 88.2 / 96 kHz - TBC

Resolution

24 bit AKM

Latency

1ms (fs = 48kHz)

Frequency response

5Hz to 24kHz (-3dB)

Dynamic range

AD:110dB; DA: 115dB

Analogue audio input ports

Number of input ports

4, MIC/LINE

Connection type

Phoenix connector (Symmetrical)

Input sensitivity

-50dBV to +10dBV in 0.5dB step

Input impedanc

Balanced, >4kΩ

Max input level

+27dBV = +30dBu

THD + Noise

THD+Noise @ 1kHz, 0dBV input (line) <0.004%
THD+Noise @ 1kHz, -40dBV input (mic.) <0.008%

CMRR

65dB typ.

Phantom power

+18VDC, 5mA max. software switched

Analogue audio output ports

Number of output ports

4, Line

Connection type

Phoenix connector (Symmetrical)

Max output level

+18dBV = +21dBu

Crosstalk

Better than 90dB (100dB typ.)

Audio over ip

Protocols

Dante™ / AES67

Number of digital input ports

Number of digital output ports

Interfaces

1 x RJ45

Connectivity

Ethernet

1, RJ-45. Ethernet Base-Tx 10/100Mb; Auto X-Over CAT5 up to 100m

Programing and control

EclerNet manager (software) from v3.05r2 version

Remote control connections

Digital remote controls

8, Euroblock connector

GPIs

4, from 0 to 10VDC or TTL level

GPOs

4, 3 poles isolated relay; 1A, 48 VDC max

Electrical

Power supply

DC supply ± 24 VDC

AC mains requirement

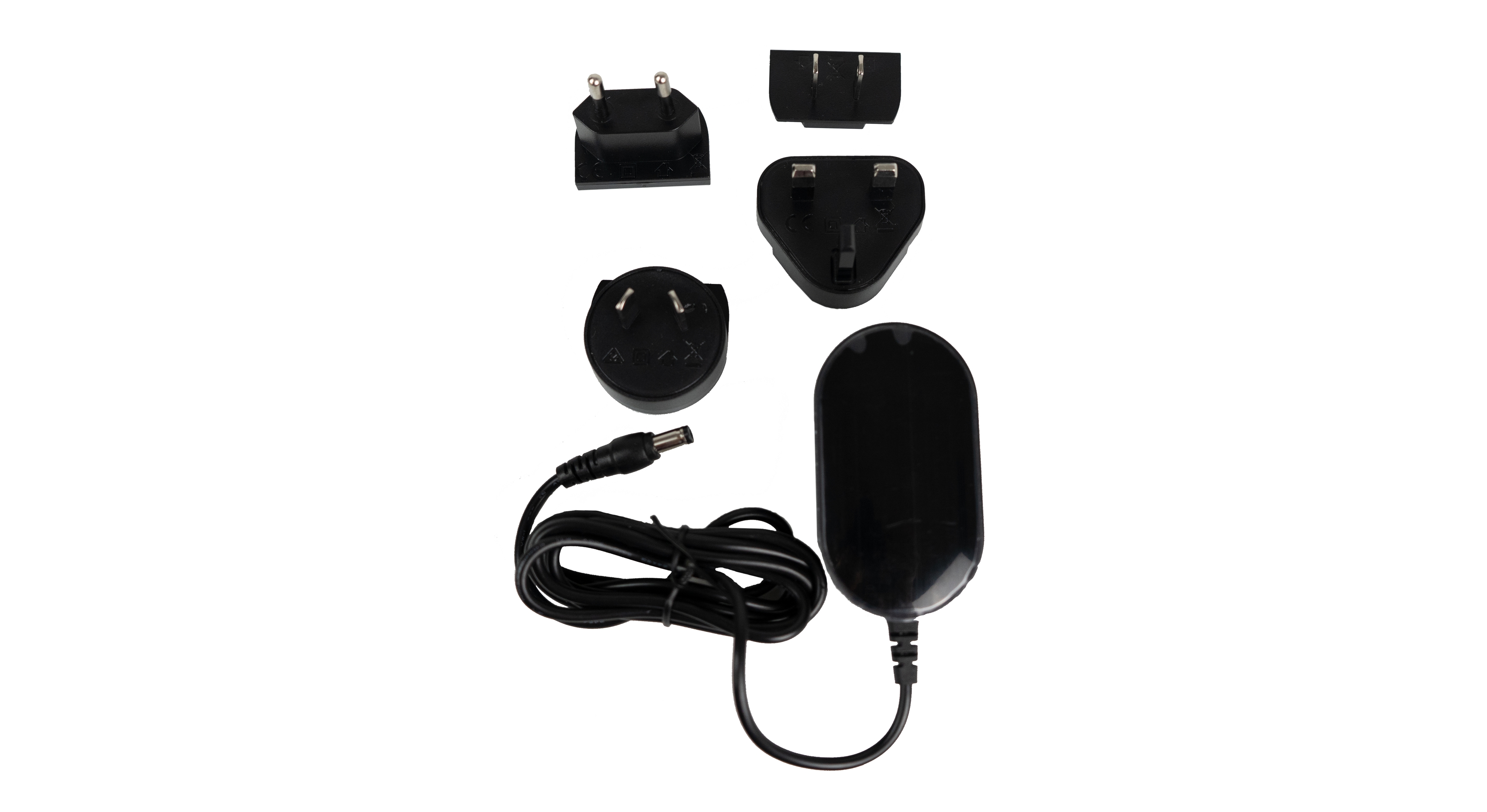

100-240VAC + External PSU 24VDC

AC mains connector

TBC

Power consumption

6.5 W

Physical

Operating temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Operating humidity

<85% HR

Storage temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Storage humidity

<90% HR

Installation options

19" rack format (1RU)

Included accessories

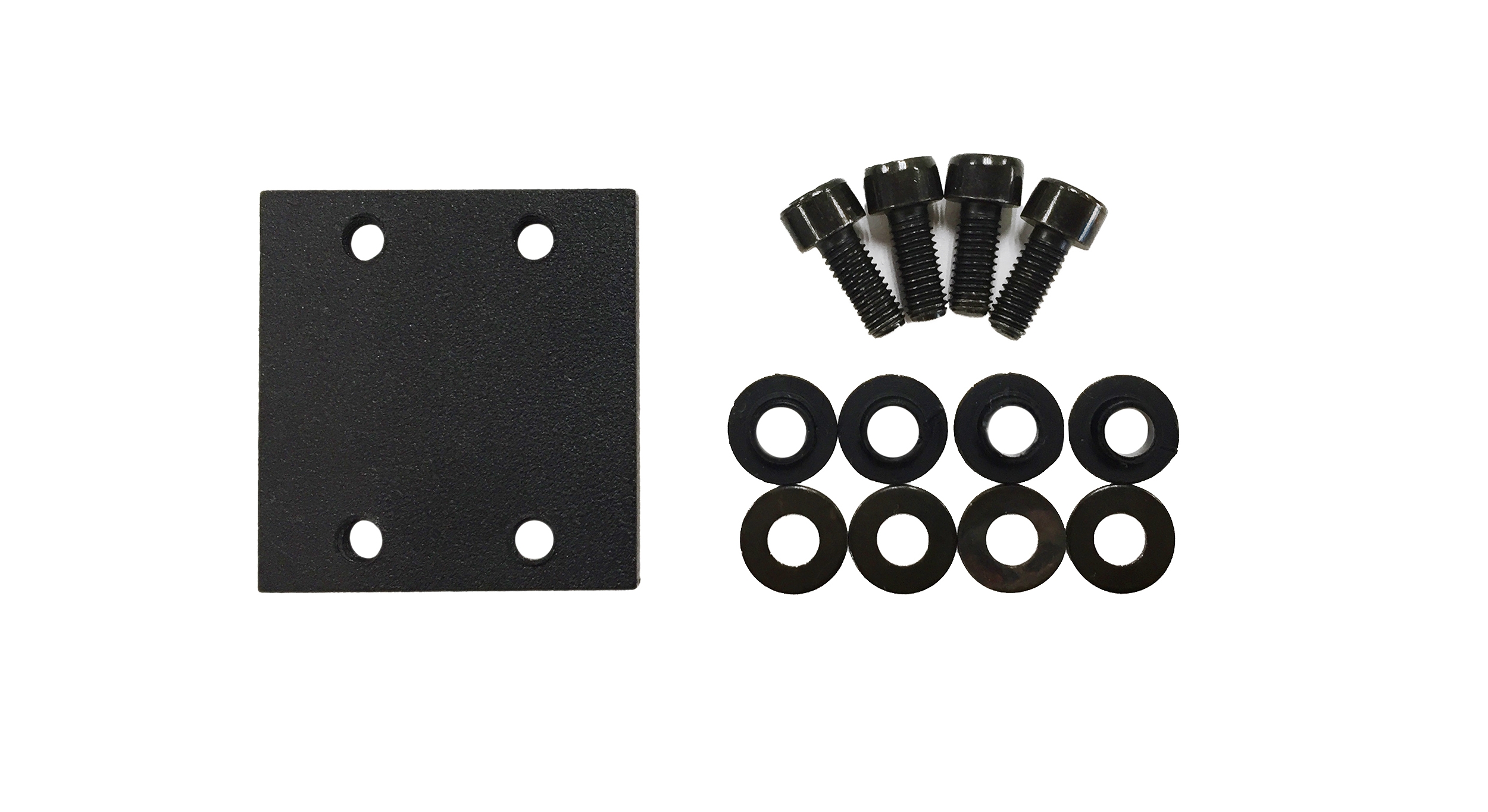

Rack-mount kit included: 1UHRMKIT + PUM3 Rack-mount accessories to mount 2 half-width RU devices in 1 standard width RU space or to mount 1 half- width RU device in 1 standard width RU space

Optional accessories

WPa series control panels for remote control

Dimensions

241 x 44 x 152 mm / 9.49 x 1.73 x 5.98 in. (WxHxD)

Weight

1.1 kg / 2.43 lb

Shipping dimensions

220 x 50 x 410 mm / 8.66 x 1.97 x 16.14 in. (WxHxD)

Shipping weight

1.4 kg / 3.09 lb

Why do I get ‘Firmware error’ message when I try updating firmware?

Verify that the path to the firmware file does not include any special characters or non-standard characters (letters with accents, ñ, ç, ȓ, Ŧ, ł, etc). Please avoid these types of characters in file path because they are ignored by software.

How do I update firmware on device using EclerNet Manager?

ALWAYS CREATE BACKUP BEFORE UPDATING FIRMWARE ON ANY DEVICE

Upgrading firmware on devices is very simple. First you have to download “Setup EclerNet Manager” from our website. When you unzip it, you will find latest .BIN firmware file (eg. firmware_MIMO_v1_10r3.bin –MIMO88 series firmware file). In the following video you can see how to perform firmware upgrade.

Where can I find older firmware/software versions?

We always recommend using latest firmware and software versions. But if you are looking for an older version you can find them here.

Which Windows versions are compatible with EclerNet Manager?

With the following Windows versions: W10, W8.1; W8; W7 Vista (SP1); XP Prof. (SP3); W2000 Prof. (SP4). It’s not supported in Windows Server

How many devices can I connect to one project?

In EclerNet Manager project you can connect max. 253 devices.

What are the network settings in EclerNet Manager?

Default settings:

IP: 192.168.0.100
Mask: 255.255.255.0
Gate: 192.168.0.1
UDP Port: 2210

Can I use EclerNet Manager with Mac or Linux?

EclerNet Manager is not supported by Mac and Linux. It should work in a virtual machine. However, we recommend using Windows to avoid problems.

How to adjust input level signal?

Using the sensitivity input gain setting with +/- 10DB, you can set your input so that the VU meter goes up to the orange level, but never up to clip level (audio cut off and saturation). Generally, it’s recommended that input signal connected to device is of the highest possible level without saturating input converters. If the input is saturated (VU meter goes up to the red level), you should attenuate the level to obtain the best signal without saturation.

Where can I find more information about DANTE?

Dante is an Audinate protocol which integrates various professional audio manufacturers. DANTE is an Audinate© protocol that is integrated by many professional audio manufacturers. You can consult the latest and most relevant information in the "Support" section of the Audinate© website. Although it is essential, if you are going to work with Dante, that you get certificate here. It's free of charge!
