NIMBO-24

Top performance cabinet loudspeaker

High-Performance Loudspeakers | Reference: CNIMBO14TN,CNIMBO24BK,CNIMBO24GD,CNIMBO24WH

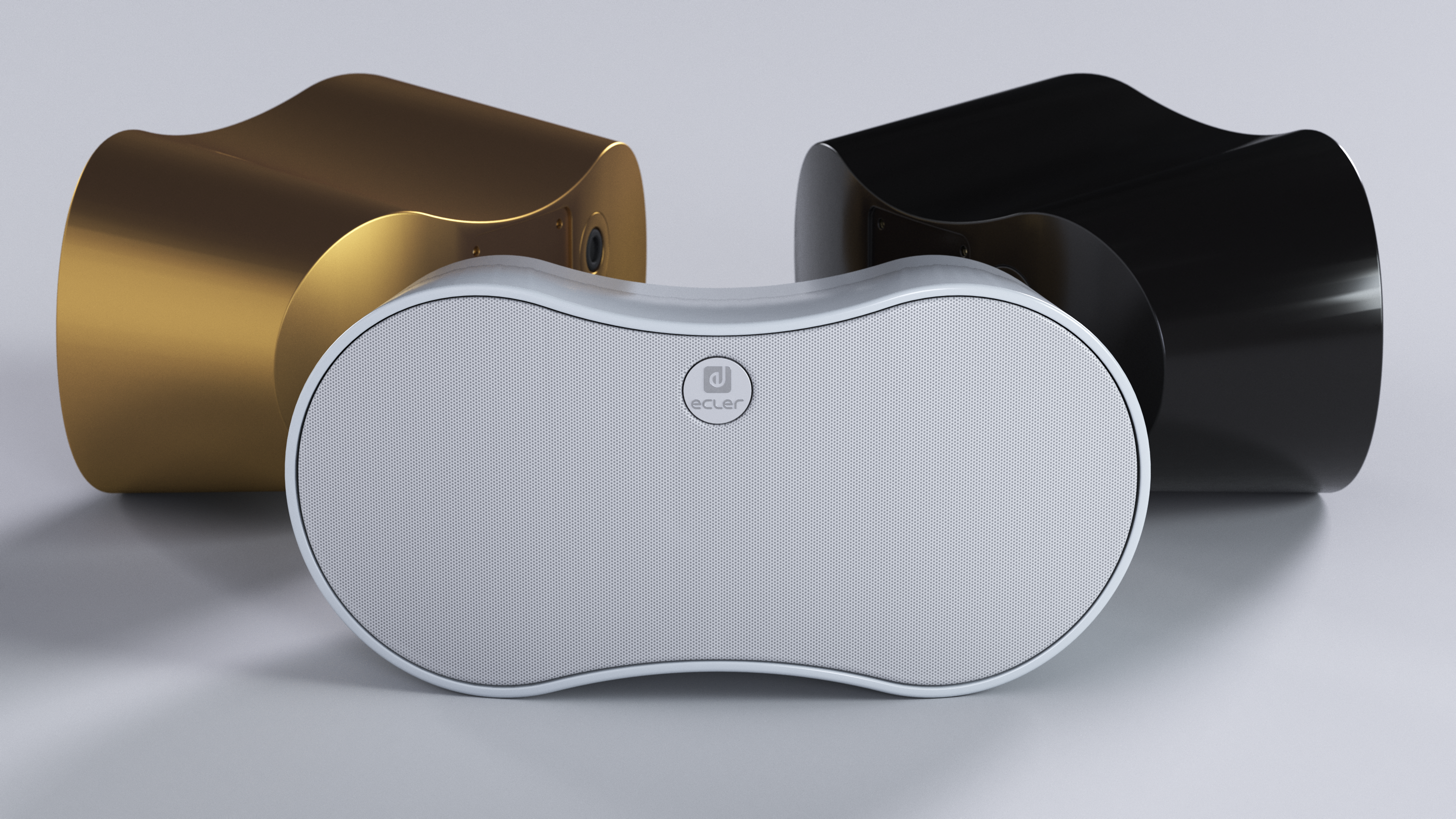

Ecler NIMBO-24 top performance loudspeaker all colours.png


NIMBO-24 is a premium performance 2-way passive loudspeaker with 80W RMS power, in a compact size with extended low frequency response. Suitable for outdoor applications, with a cloud-inspired design, result of Ecler's engineering skills and the collaboration of architects and interior designers. Including 2 x 4" woofers and a 1" silk tweeter located in the acoustic centre, acting as a single point source to disperse the sound evenly. The nominal impedance of the speaker can be selected to 4 ohm or 16 ohm thanks to the front switch located behind the logo, which allows to modify its impedance without removing the aluminium front grille. It includes the robust VEASY wall bracket, allowing tilt and pan adjustment using a single screw.

  • 2-way passive loudspeaker for surface mounting
  • 2x 4" woofers with 4-layer voice coil improves power handling and low frequency response
  • 1" silk tweeter with neodymium magnet and ferrofluid
  • Bass reflex port
  • ABS reinforced with fiberglass non resonant compact enclosure
  • Wide dispersion pattern
  • Stack Output

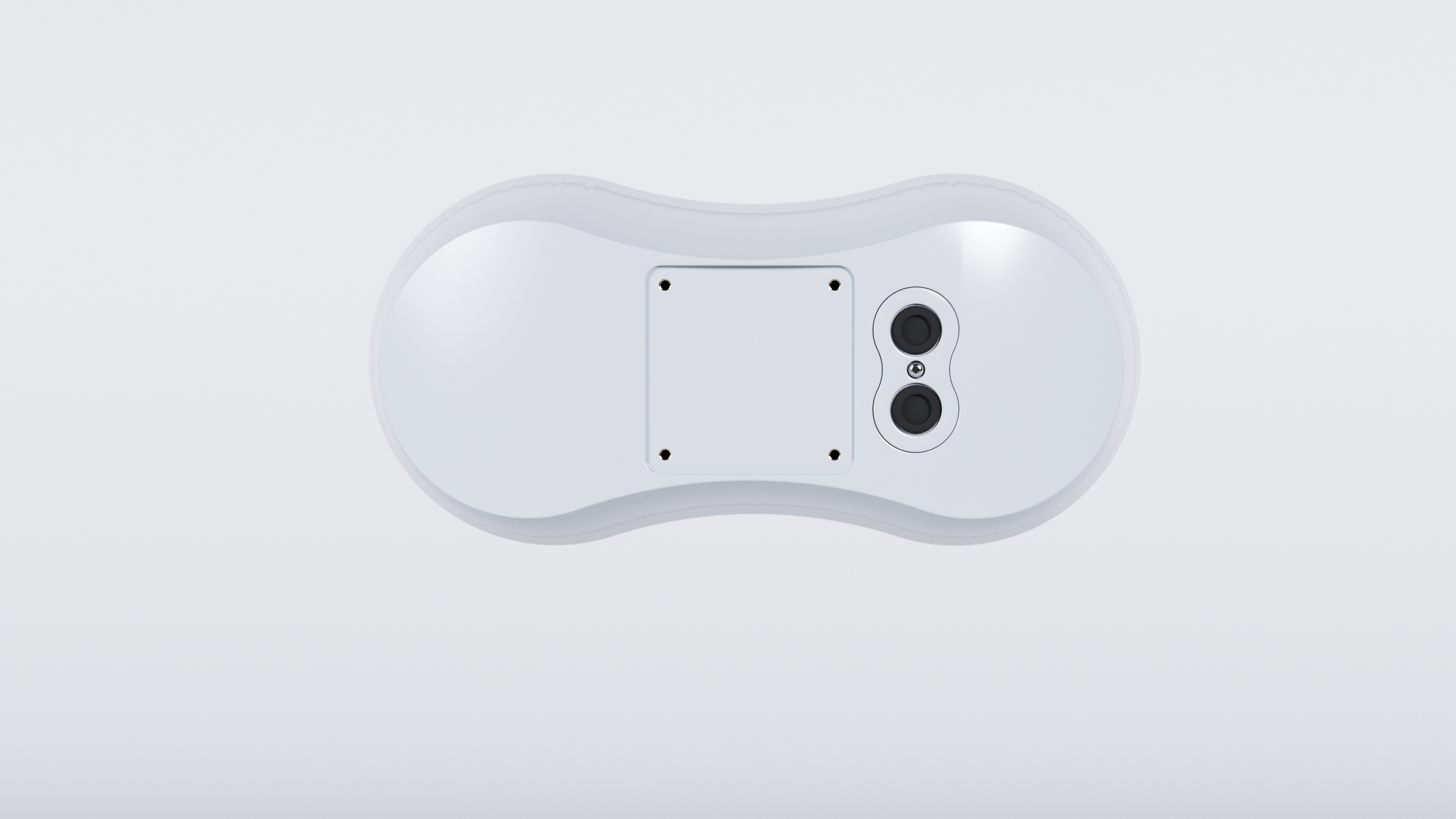

  • VEASY bracket compatible with VESA 75 included. Quick and easy to install, including jumps and markings for repeating speaker orientation.
  • Weather-protected with an IP-44 rating

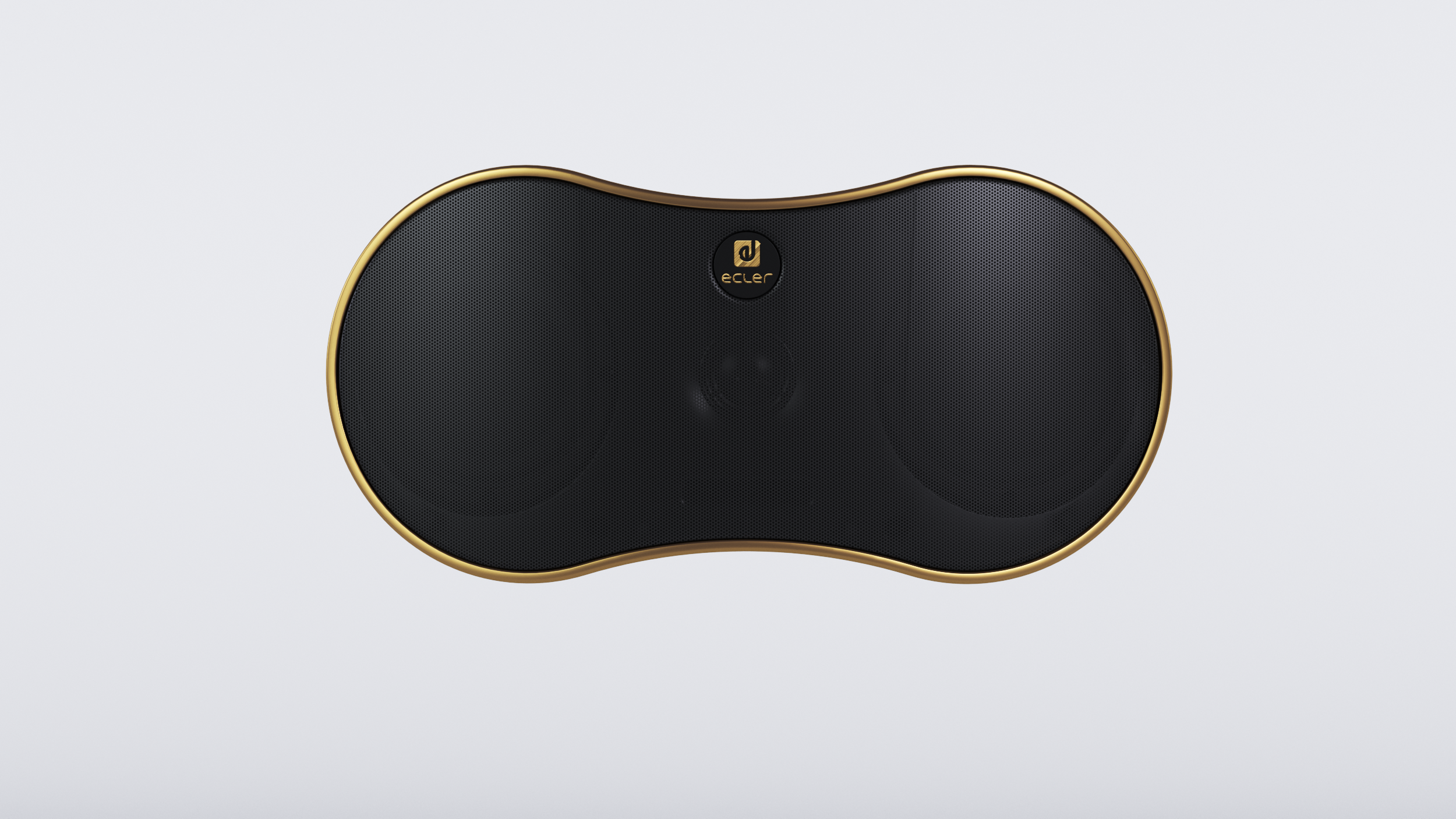

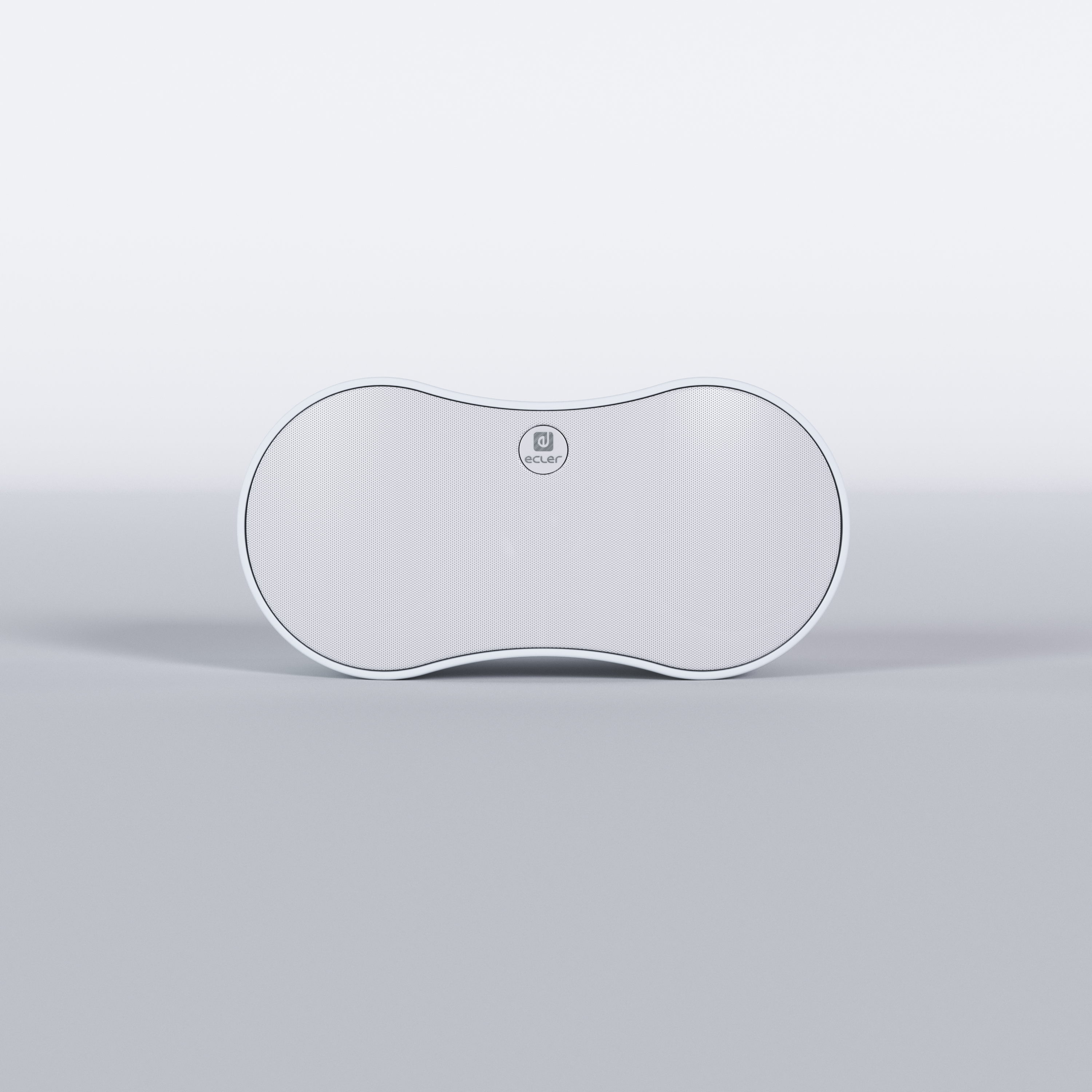

  • Available in white (RAL9003), black (RAL9005) or gold colour (RAL1036, approx.)
  • RAL paint customization available
  • Ease files available

Applications

Retail   Education   Corporate   Leisure   Sports & Wellness   Hospitality

Related solutions

NIMBO and VIDA Series at Circuit Zandvoort DRM lounge

View

NIMBO Loudspeakers at Club Nautique Zandvoort

View

Ecler Audio at Cupra Den Bosch Showroom

View

NIMBO Series video

July 2023 July 2023

Colourful options

Colourful options

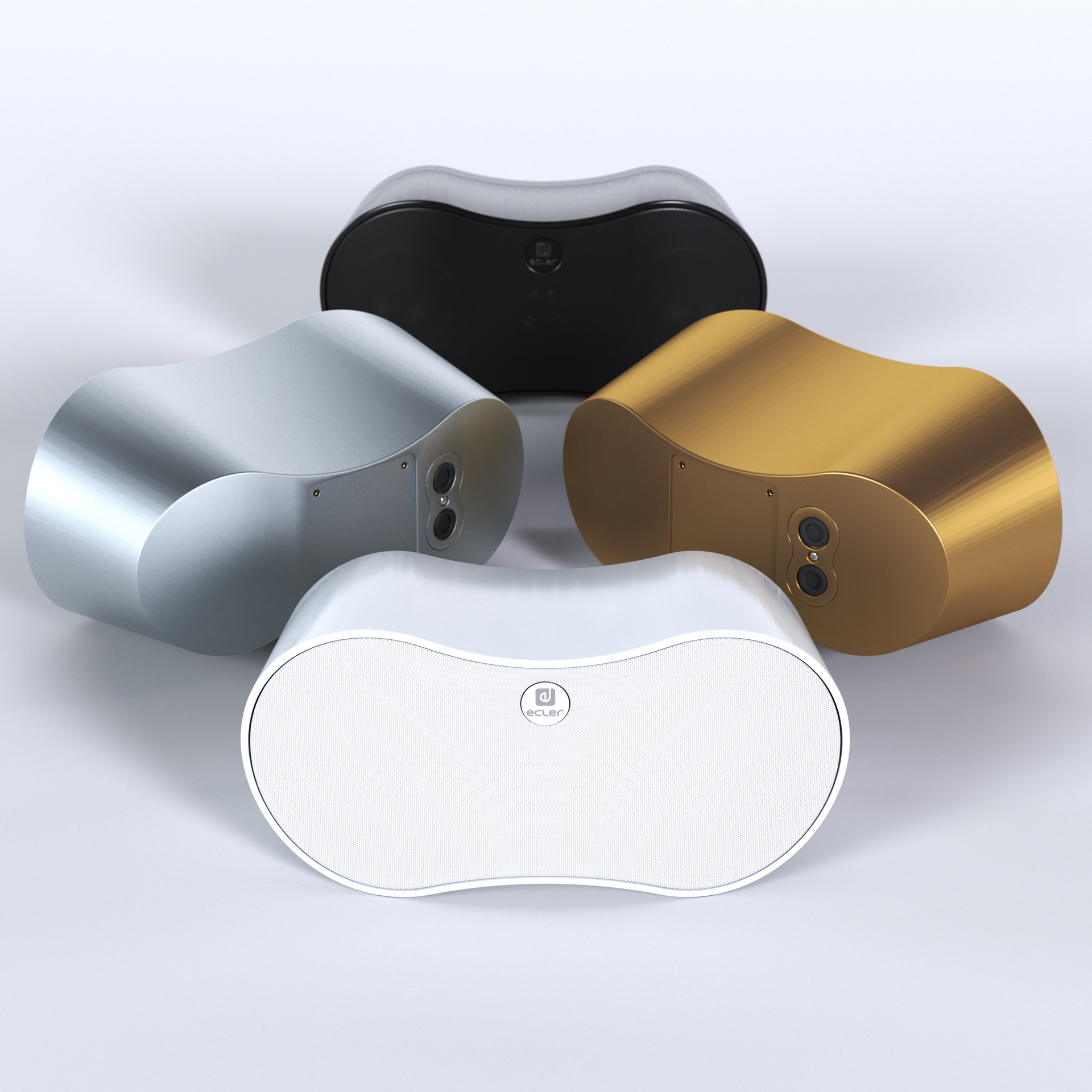

Available in black, white and gold. RAL paint customization by demand.

Suitable for outdoor installations

Suitable for outdoor installations

Wheather-protected with an IP-44 rating

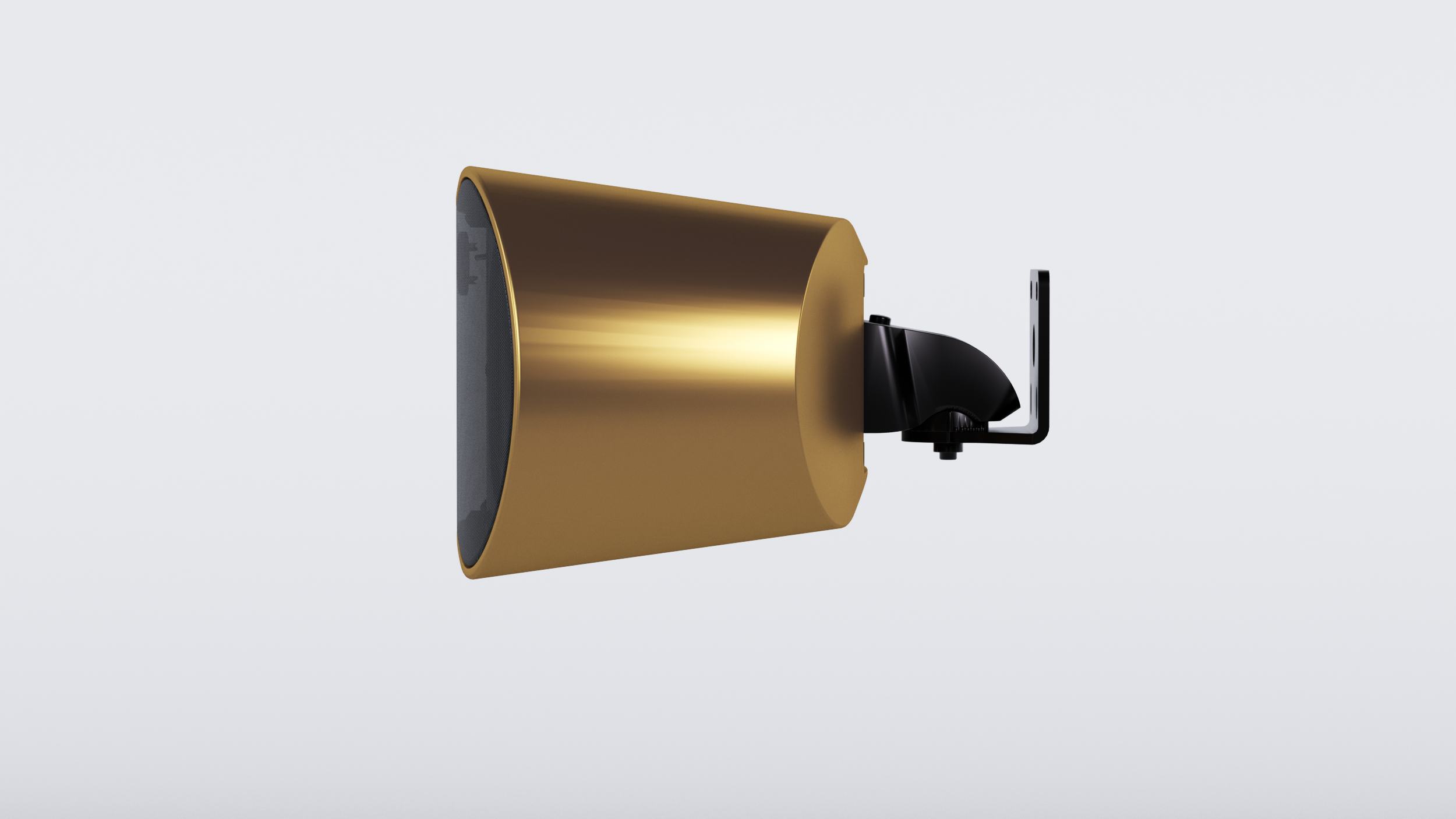

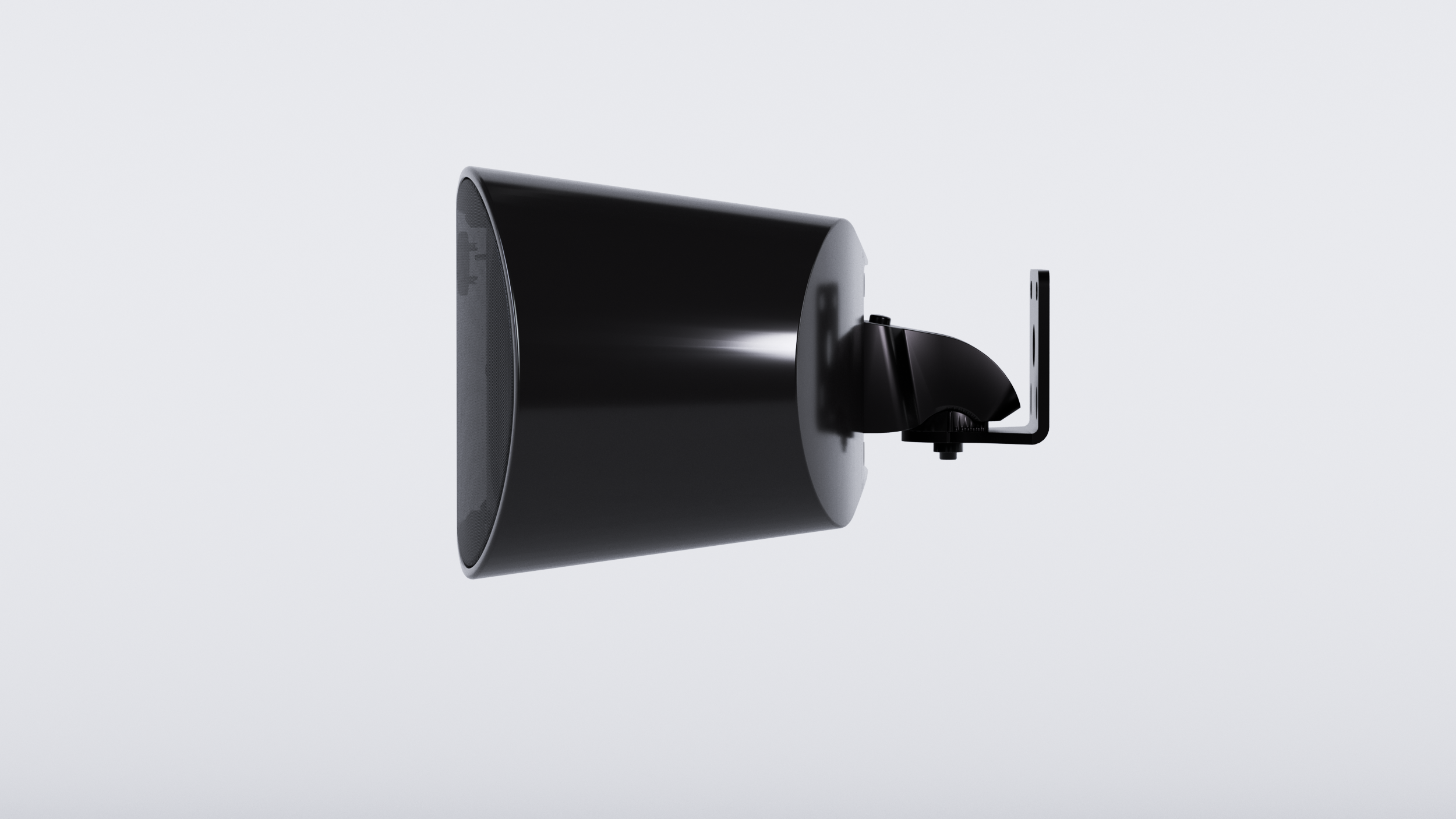

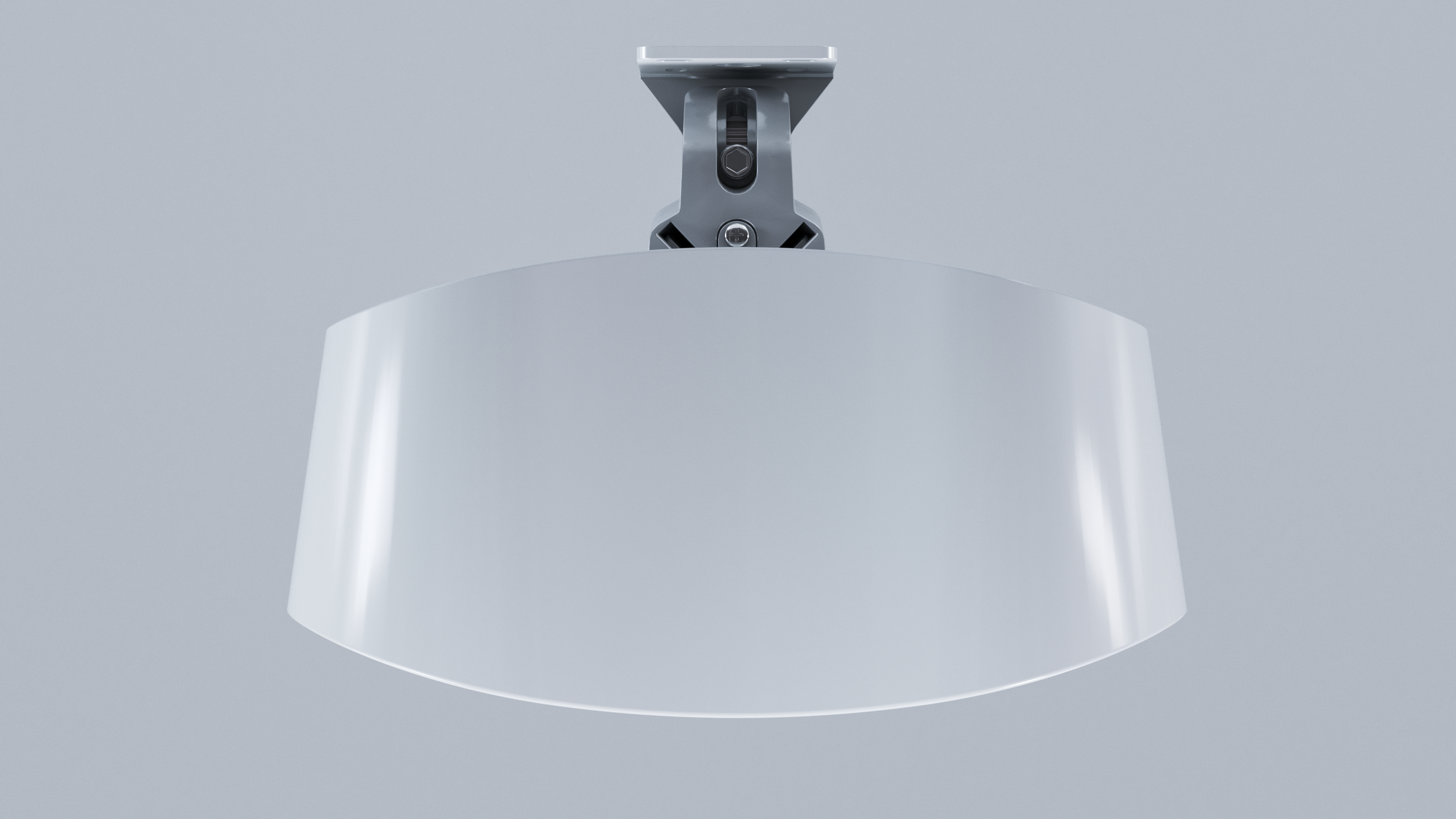

VEASY wall bracket included

VEASY wall bracket included

Compatible with VESA 75, allowing tilt and pan adjustment using a single screw.


    Top performance in a compact size

    Top performance in a compact size

    Improving low frecuency response thanks its bass reflex and it's 2x4" woofers with 4-layer voice coil

    Unique cloud-inspired design

    Unique cloud-inspired design


    Sound to be seen!
