6x200 WRMS | DSP | Class D | Silent | TP-NET | EclerNet

Networkable Amplifiers | Reference: CNXA6200

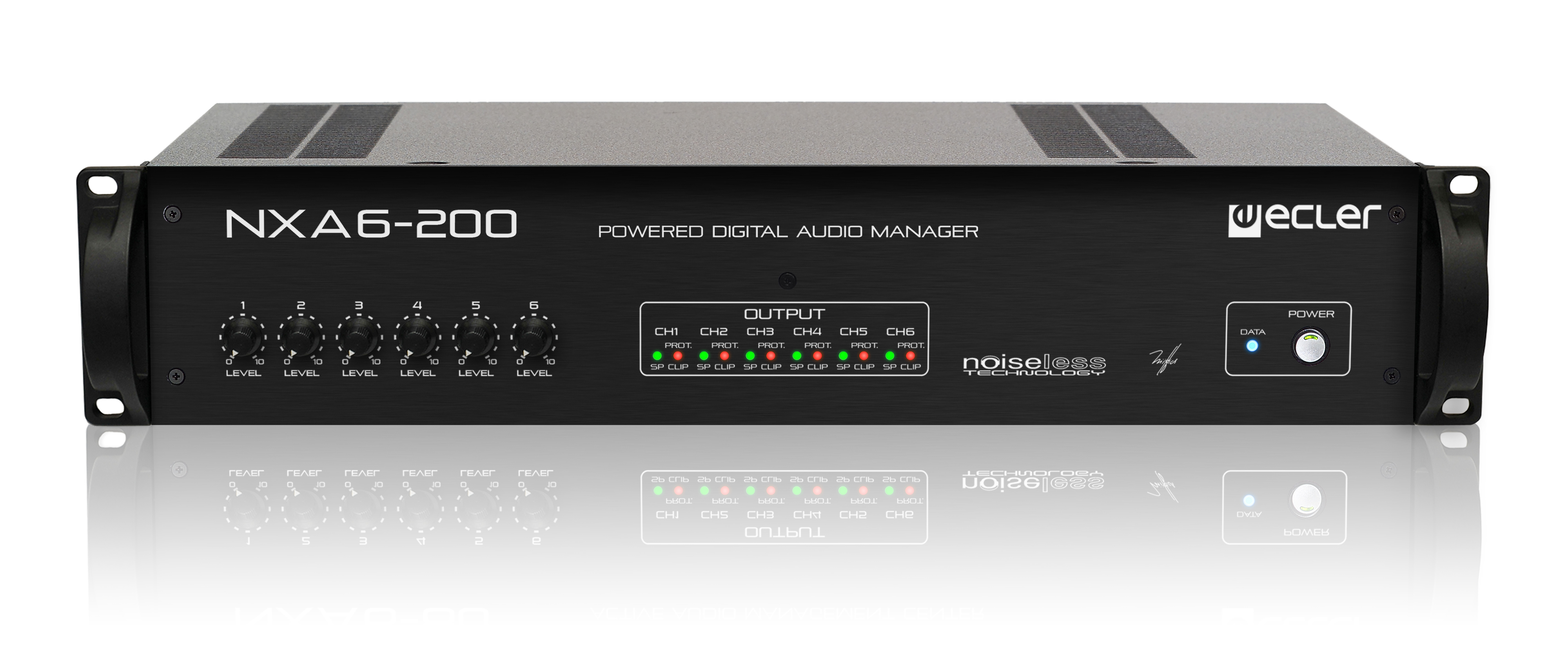

NXA6-200Image 1

NXA6-200 is a 6 channel x 200W self-powered digital manager that stays halfway between a digital matrix and a multichannel amplifier. An "all-in-one" digital audio device that becomes a complete audio solution, including several remote control options and a long list of smart features.

  • 6 analogue audio inputs x 6 powered audio outputs
  • Class D amplifiers (eco friendly)
  • Auto stand-by function (eco friendly)
  • 100% silent (fanless convection cooling system)
  • Health self-test mode function, with FAULT RELAY (for an external redundancy system)
  • Integrated anti-clip system
  • Integrated DSP processor.
  • Inputs mixer independent per channel (all inputs available)
  • VOLUME, MUTE, SOLO, PHASE INVERSION, MAX. VOL limit and MIN.VOL limit, LP and HP Crossover filters, parametric EQ filters bank, Ducker, Delay, Compressor and more settings configurable per channel.
  • Ethernet interface, compatible with EclerNet Manager platform and UCP remote control system
  • RS-232 Interface
  • TP-NET third-party remote control (compatible with CRESTRON®, AMX®, RTI®, VITY®, etc.)


Retail   Education   Corporate   Leisure



EclerNet Touchscreen Control Panel
