VIVO-X8

VIVO-X8 is an EclerPLEX Host matrix with 8 analogue audio input ports and 8 analogue audio output ports, scalable thanks to two X-link ports. Each X-link port allows the connection of one BIO Series expansion unit. VIVO-X8, performing as a Host unit in an EclerPLEX deployment, can contain multiple projects running simultaneously and serve user control panels to end users.

• EclerPLEX ecosystem host matrix unit.
• 8 MIC / LINE analogue audio input ports (+48V Phantom selectable per port).
• 8 LINE analogue audio output ports.
• 4 GPI ports.
• 1 microSD card slot (for the 4 players).
• 2 x X-link audio&control expansion ports (each port allows to locally connect an external BIO Series expansion unit).
• Scalable up to a 32x32 audio matrix size, including:
• • 24x24 analogue audio ports (by adding 2x BIO-X8 or BIO-X8G units).
• • 24x24 GPI ports (by adding 2x BIO-X8 or BIO-X8G units).
• 2x Ethernet (NET1 control, NET2 Control).
• 1 x RS-232 control port.

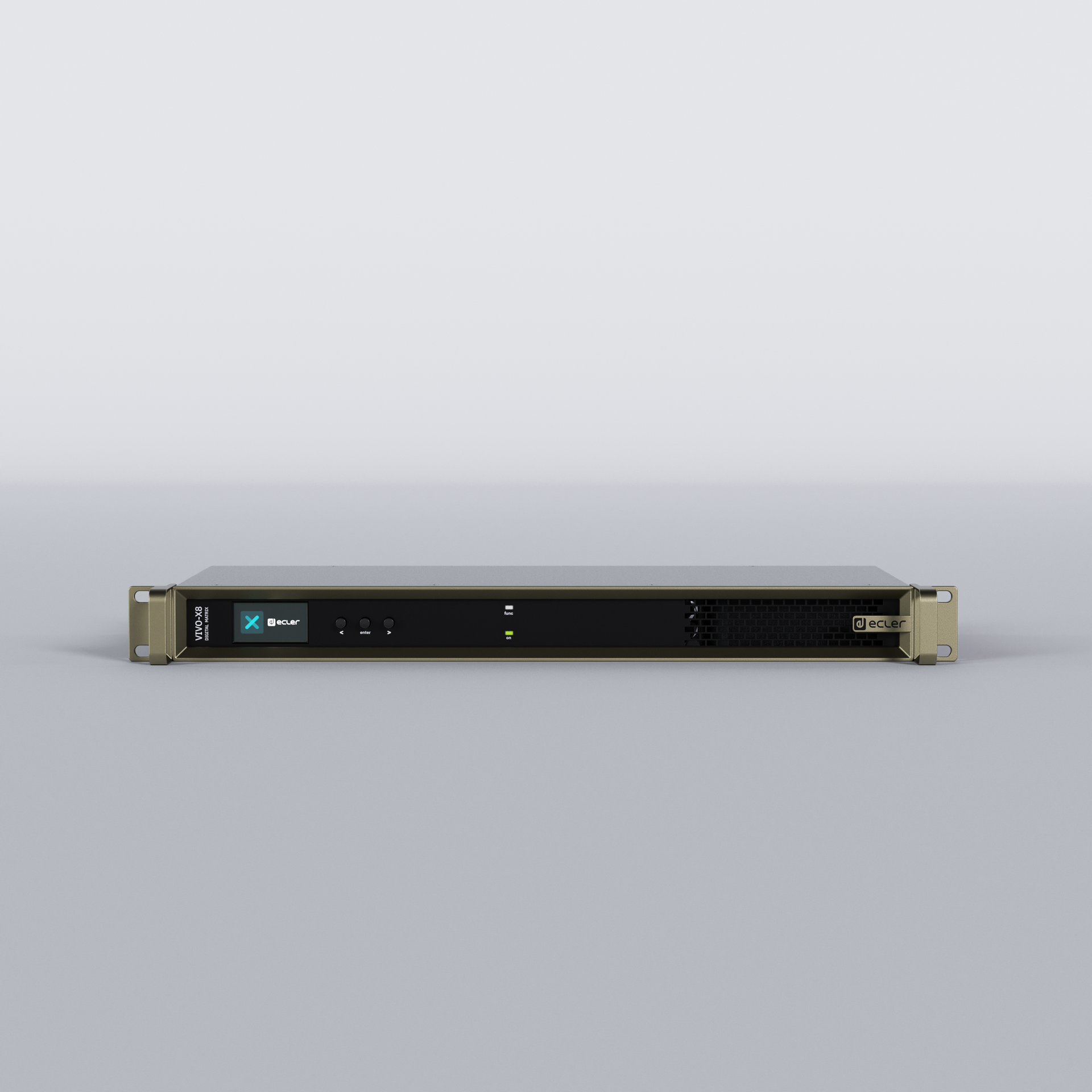

• 1 x 1.9” Colour TFT Display.
• Flexible processing structure (allows for custom-size matrix size matrices and custom-DSP power projects).
• Embedded EclerPLEX application that includes:
• • A Workspace, including multiple types of custom-size simultaneous projects running simultaneously, events, calendars, presets and more.
• • An editor, manager and server of User Control Panels.
• • Scripting automation & control system.
• • 4 Internal SW audio players.
• • 2 Internal audio generators.
• • EclerCLOUD monitor and control native device.
• • Auto update feature.
• * The hardware is designed to support all the features described in this document. Some are available from version 1.0, while others will be enabled progressively through future software updates.
