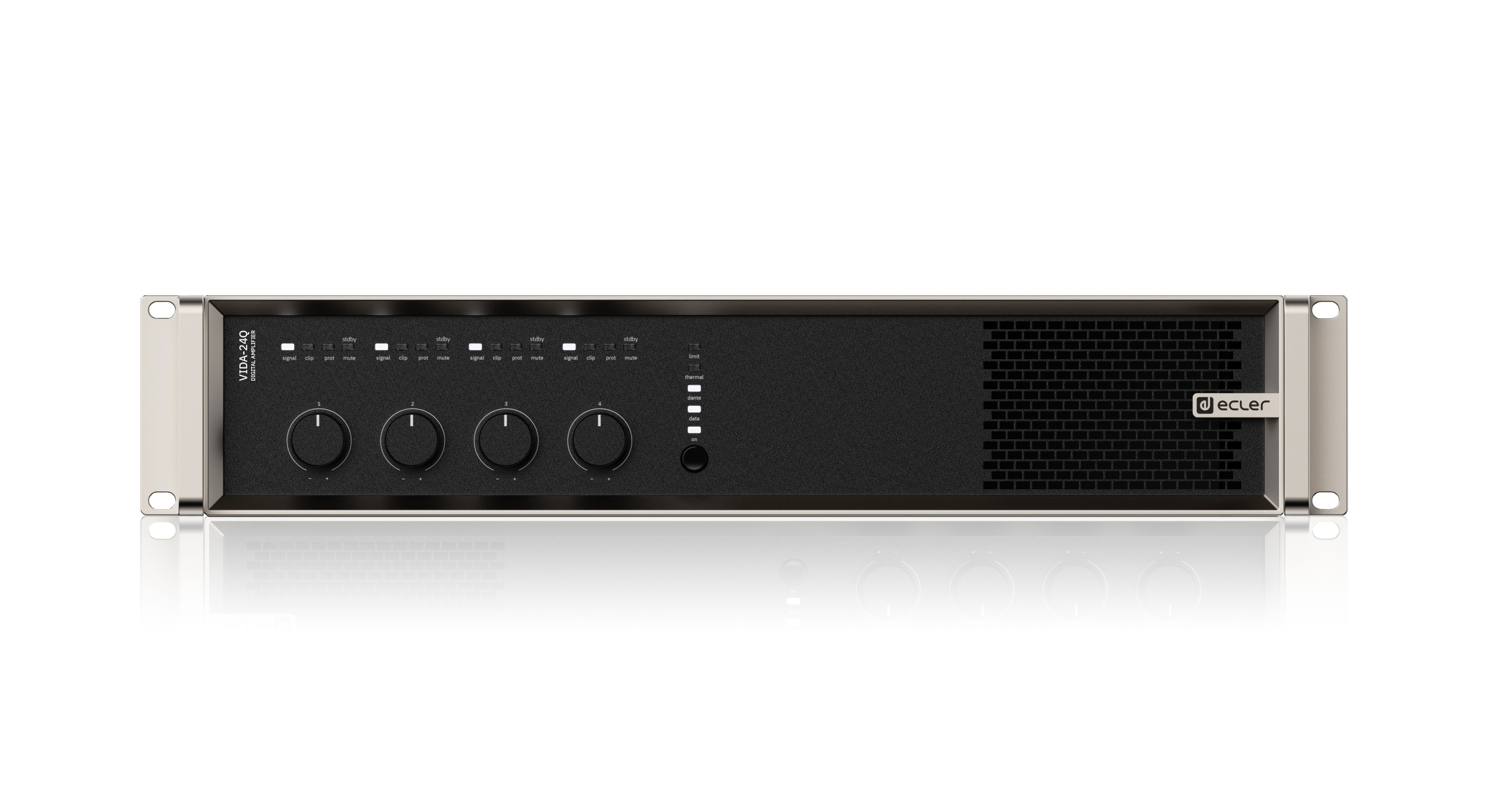

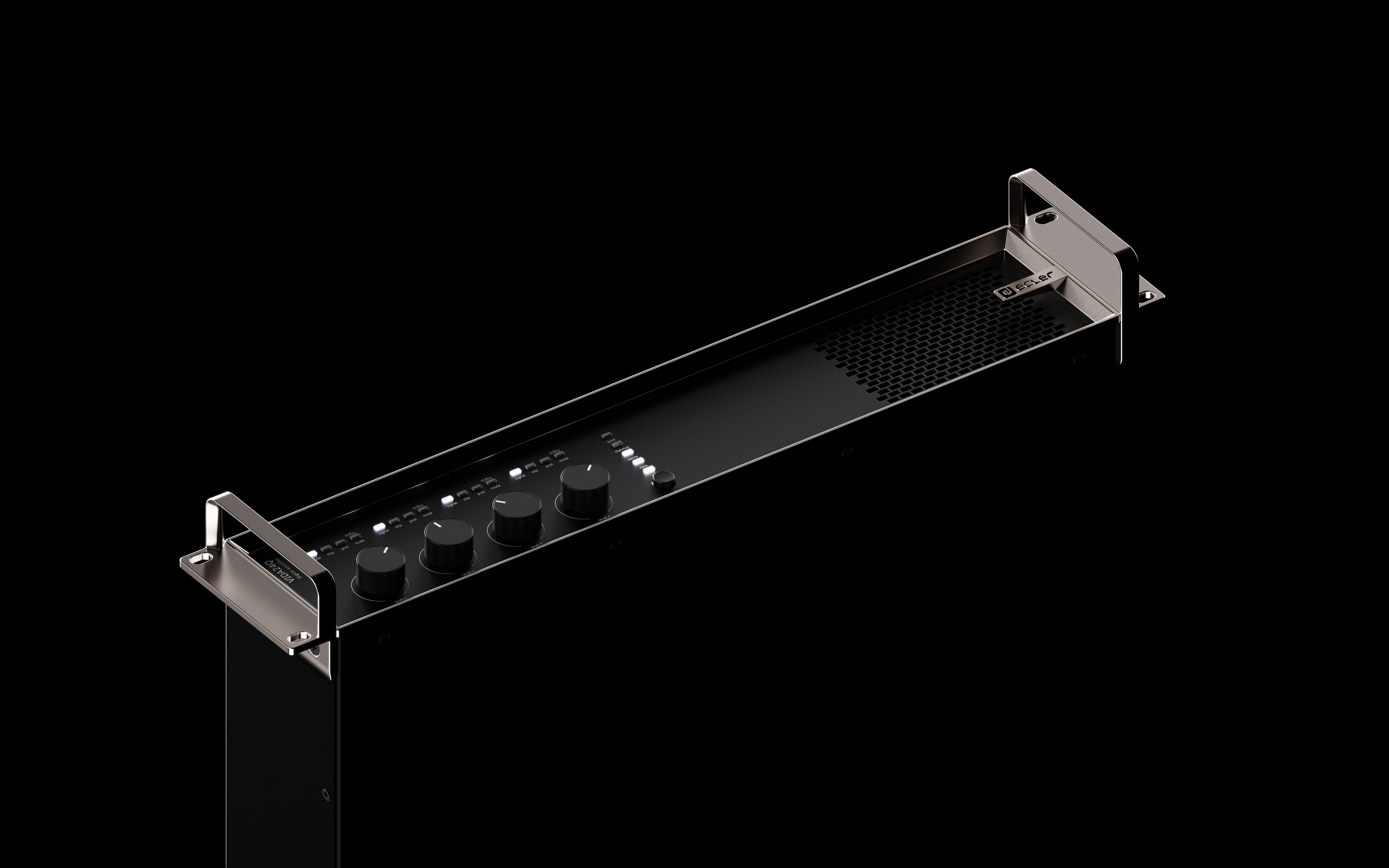

VIDA-24Q Digital Amplifier with 2400W and VersaPower

VIDA-24Q

Dante/AES67 Digital Amplifier with DSP and Player

Networkable Amplifiers | Reference: CVIDA24Q

Download image

Download image

VIDA-24Q is a 2400W digital amplifier, with 4 amplified outputs that can be independently configured in high (100/70V) or low (8/4/2ohm) impedance. The VersaPower technology, developed by Ecler, allows an asymmetrical power distribution, and thanks to the Smart VersaPower tool it helps installers by facilitating a smart and fast configuration. In addition, the Class D amplification technology as well as the configurable 4-outputs auto standby and sleep mode functions, both configurable, further improve energy efficiency. This device offers a wide range of possibilities thanks to its 4 analogue and 4 Dante/AES67 digital inputs, audio player - with microSD slot for local audio files – as well as signal generator, plus 2 auxiliary line outputs and Dante/AES67 digital outputs. All these features are managed from its intuitive web application which, among other functionalities, allows signal routing - matrix -, audio signal processing - such as equalisation or limiters -, priority management, GPIO configuration through events, as well as calendar events, playlist management and SD card content, thus facilitating the start-up of the audio-visual installation, its maintenance and customisation. Thanks to the Android/iOS/Web application available to the end user, the audio installation can be managed by them in an easy, intuitive, and customised way.

4 amplified outputs VersaPower asymmetrical 2400W power management
4 Dante outputs and 4 Dante/AES67* (*supported from firmware version v1.02 or higher)
2 auxiliary outputs
4 analogue inputs
MicroSD/SDHC audio player
Internal matrix and signal processing

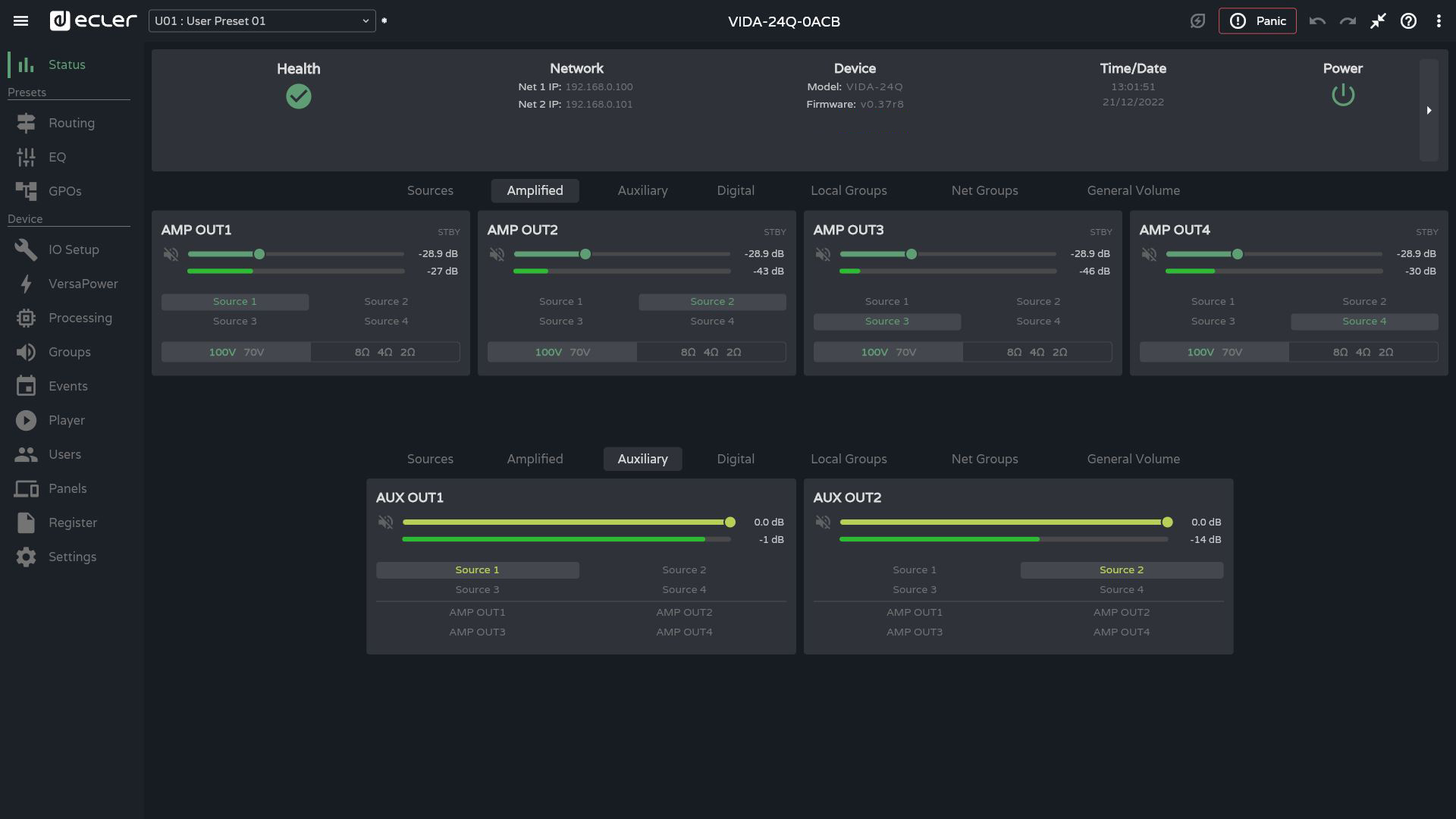

Web application for device configuration
Smart power management VersaPower
Control and scheduled events for automation
Customized User Panels
Remote control user application for iOS/Android/Web
Ultra low power consumption mode "Sleep Mode"
Compatible with the Remote Monitoring & Control Platform EclerCLOUD.

Applications

Education Corporate Leisure Sports & Wellness Hospitality

CHANNELS

Number of output channels

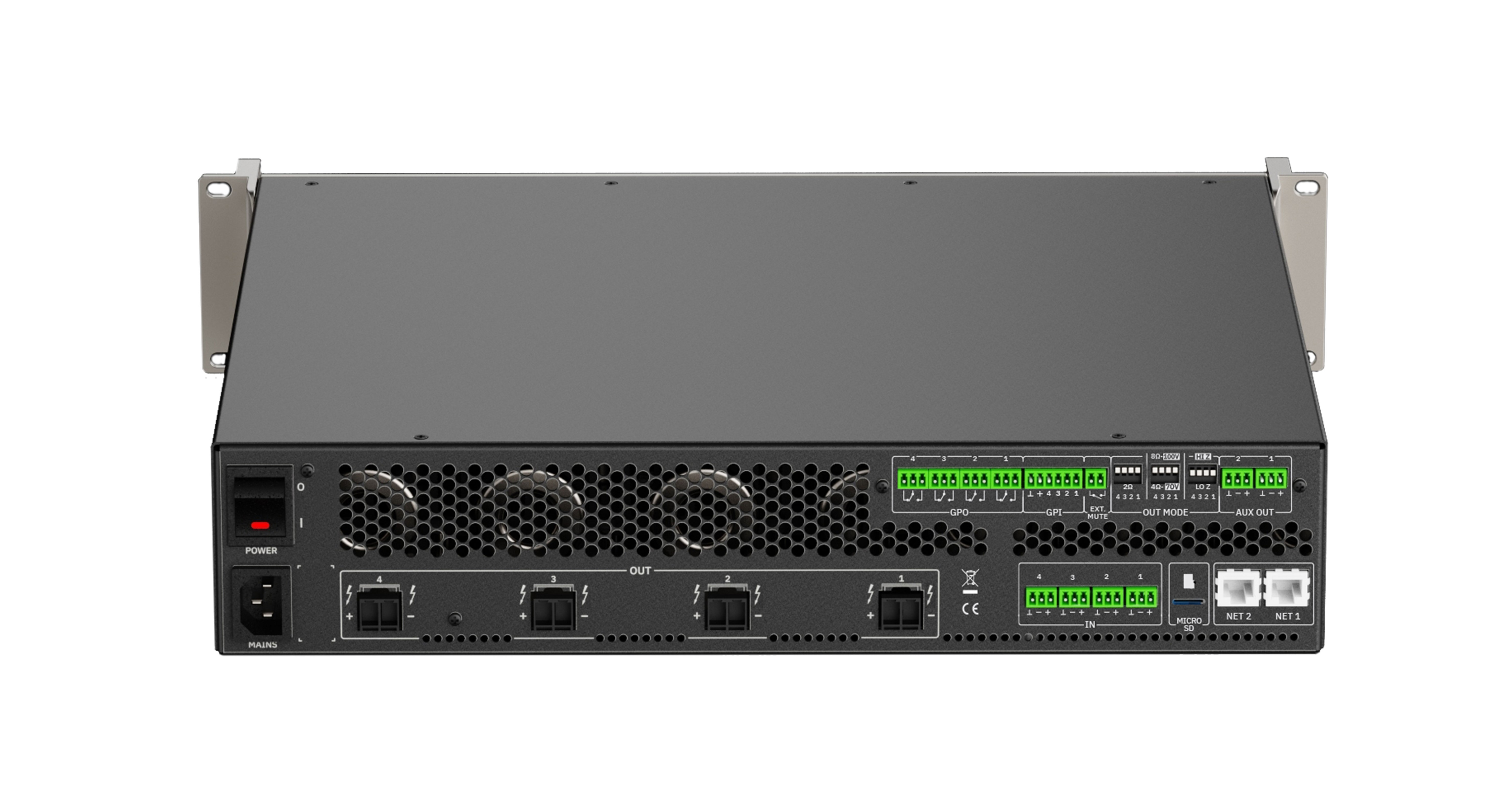

Output connection type

2-pin Euroblock. Pitch: 7,62 mm
Ref: DEGSON 5EDGRC-7.62

Output configuration

Lo-Z/Hi-Z, 70V/100V, 4Ω/8Ω/2Ω.
Output mode selection per channel.
Rear panel DIP SWITCH selectors

Number of input channels

4 analogue input channels.
4 DANTE/AES67 Network Rx channels.
1 embedded player, 1 embedded signal generator

Input connection type

Digital: Ethernet, managed via Dante/AES67 Controller
Analogue: IN1-4: 3-pin Euroblock, balanced, pitch 3,5 mm

Input configuration

Digital matrix 4 in x 6 out

AUXILIAR OUTPUTS

Number of auxiliar outputs

Auxiliar output connection type

AUX1-2: 3-pin Euroblock, balanced

DIGITAL OUTPUTS

Number of digital outputs

Digital output connection type

Ethernet, managed via Dante/AES67 Controller

VERSAPOWER - SYMMETRICAL All channels driven @1kHz @CF9dB @ 1%THD

Max output power @ 8Ω

600W

Max output power @ 4Ω

600W

Max output power @ 2Ω

600W

Max output power @ 100V

600W

Max output power @ 70V

600W

VERSAPOWER - ASYMMETRICAL Single channel driven @1kHz @CF9dB @ 1%THD

Max output power @ 8Ω

1400W

Max output power @ 4Ω

2400W

Max output power @ 2Ω

1600W

Max output power @ 100V

2400W

Max output power @ 70V

2000W

SIGNAL

Voltage gain

28 to 40 dBV
30,2 to 42,2 dBu

Input sensitivity

-6 to +6 dBV
-3,78 to 8,2 dBu
0,5 to 2 Vrms

Input impedance

>24kΩ

Max input level

+18 dBV
+20,2 dBu

Frequency response

15Hz-25kHz

THD + Noise

< 0,1%
0,015 Typ

SNR

95 dBA

Crosstalk

>80 dB

CMRR

>65 Typ

Damping factor

>500

ELECTRICAL

Power supply

Universal, regulated SMPS with PFC

AC mains requirement

100-240 V @ 50-60Hz (±10%)

Power factor correction

> 0,96

AC mains connector

IEC C14 inlet

POWER & HEAT @230VAC - 1/4 POWER, @ 4Ω (all channels driven)

Power

848 W
888 VA

Current Draw

3,88 Arms

Thermal Loss

214,1 kcal/h
849,8 BTU/h

POWER & HEAT @230VAC - 1/8 POWER, @ 4Ω (all channels driven)

Power

498 W
536 VA

Current Draw

2,33 Arms

Thermal Loss

170,3 kcal/h
675,8 BTU/h

POWER & HEAT @230VAC - IDLE

Power

72 W
122 VA

Current Draw

0,52 Arms

Thermal Loss

61,9 kcal/h
245,7 BTU/h

POWER & HEAT @230VAC - STANDBY/SLEEP MODE

Power

4,1 W
23,8 VA

Current Draw

0,1 Arms

Thermal Loss

3,5 kcal/h
14 BTU/h

POWER & HEAT @120VAC - 1/4 POWER, @ 4Ω (all channels driven)

Power

855 W
865 VA

Current Draw

7,37 Arms

Thermal Loss

219,3 kcal/h
870,3 BTU/h

POWER & HEAT @120VAC - 1/8 POWER, @ 4Ω (all channels driven)

Power

483 W
493 VA

Current Draw

4,16 Arms

Thermal Loss

157,4 kcal/h
624,6 BTU/h

POWER & HEAT @120VAC - IDLE

Power

68 W
89 VA

Current Draw

0,75 Arms

Thermal Loss

58,5 kcal/h
232,1 BTU/h

POWER & HEAT @120VAC - STANDBY/SLEEP MODE

Power

3,6 W
10,2 VA

Current Draw

0,09 Arms

Thermal Loss

3,1 kcal/h
12,3 BTU/h

TECHNOLOGIES

Amplification technology

Class D

Energy saving

Auto standby function programmable per channel
Sleep Mode function selectable

Efficiency

72%

Cooling

Fan

Maximum fan noise

53 dB

DSP

Latency

2,8 ms

Digital processing

32/64 bit

Inputs processing

Noise gate, HPF, Freq. Shifter, compressor/limiter

Outputs processing

Delay, Parametric EQ, Graphic EQ independent for every amp out and aux out
Limiters independent for every amp out
Smart VersaPower management

Others

Preset management, Internal matrix, priority & backup signals managemnet, local & network groups, events management incl. calendar

PROTECTIONS

DC protection

Yes

HF protection

Yes

Short-circuit protection

Yes

Clip limiter

Yes

Long term limiter

Yes

Thermal protection

Yes

REMOTE CONTROL CONNECTIONS

ON / OFF

GPIs

x4 GPIs (0-10V)

GPOs

x4 NC / NO contacts

External MUTE

Yes, contact

LOCAL CONTROL

Attenuators

Programmable Front panel knobs

Output mode settings

Lo-Z/Hi-Z, 70V/100V, 4Ω/8Ω/2Ω
Output mode selection per channel

RUN/SLEEP mode

Yes, front panel push-button

Power ON/OFF

Yes, back panel switch

CONNECTIVITY

Ethernet

Ethernet Base-Tx 10/100/1000Mb Auto X-Over

DANTE Protocol

Dante/AES67 4x Tx / 4x Rx channels (2/2 flows)
Primary and secondary capability. RJ-45 ports
(Settings by embedded web application)

Programing and control

Embedded web application

MONITORING

Signal Present

SP LED (White) per channel

Cliping

CLIP LED (Red) per channel

Protect

PROT LED (Red) per channel

Standby / Mute

STBY/MUTE LED (White) per channel

Limit

LIMIT LED (Red) per unit

Thermal

THERMAL LED (Red) per unit

Dante

DANTE/AES67 LED (White) per unit

Data

DATA LED (White) per unit

On

ON LED (White) per unit

DIGITAL ENGINE

Processor

Quad core 64bits 1,5GHz

AUDIO CONVERTERS

Sampling rate

48 kHz

Resolution

24 bit

Dynamic range

114 dB

REAL-TIME CLOCK

Retention time

> 5 years

Accuracy

±1 minute / month

Battery

VARTA CR2032 3V, 230mAh

LOCAL STORAGE

Micro SD

SDXC

Capacity

Up to 2TB

File system

FAT16, FAT 32, VFAT (read/wirte)
NTFS (read)
Multi-partition up to 1

Playable audio files

mp3, ogg, WAV, FLAC, AIFF

Files analysis

65354 playable folders
65354 playable folders within each folder
65354 playable files within each folder

Folder hierarchy

Up to 8 containing the root directory

Sorting

UNICODE, in alphabetical order
Up to 100 folders / files by folder
Folders/files over 100 sorted in the FAT order

PHYSICAL

Operating temperature

Min: -10⁰C ; 14⁰F
Max: 50⁰C ; 122⁰F

Operating humidity

5 - 85% RH, non-condensing

Storage temperature

Min: -10⁰C ; 14⁰F
Max: 50⁰C ; 122⁰F

Storage humidity

5 - 85% RH, non-condensing

Installation options

Rack 19" installation & desktop

Included accessories

Mains cords, Euroblock Connectors (inputs /outputs), Desktop feet, rack 19" installation hardware

Dimensions

482.6 x 88 x 410 mm / 19 x 3.46 x 16.14 in. (WxHxD)

Weight

9.3 kg / 20.5 lb

Shipping dimensions

650 x 125 x 600 mm / 25.59 x 4.92 x 23.62 in. (WxHxD)

Shipping weight

12.3 kg / 27.1 lb
