Dante™/AES67 Digital Amplifier with DSP and Player

Networkable Amplifiers | Reference: CVIDA16Q


VIDA-16Q is a 1600W digital amplifier, with 4 amplified outputs that can be independently configured in high (100/70V) or low (8/4/2ohm) impedance. The VersaPower technology, developed by Ecler, allows an asymmetrical power distribution, and thanks to the Smart VersaPower tool it helps installers by facilitating a smart and fast configuration. In addition, the Class D amplification technology as well as the configurable 4-outputs auto standby and sleep mode functions, both configurable, further improve energy efficiency. This device offers a wide range of possibilities thanks to its 4 analogue and 4 Dante™/AES67 digital inputs, audio player - with microSD slot for local audio files – as well as signal generator, plus 2 auxiliary line outputs and 4 Dante™/AES67 digital outputs. All these features are managed from its intuitive web application which, among other functionalities, allows signal routing - matrix -, audio signal processing - such as equalisation or limiters -, priority management, GPIO configuration through events, as well as calendar events, playlist management and SD card content, thus facilitating the start-up of the audio-visual installation, its maintenance and customisation. Thanks to the Android/iOS/Web application available to the end user, the audio installation can be managed by them in an easy, intuitive, and customised way.

  • 4 amplified outputs VersaPower asymmetrical 1600W power management
  • 4 Dante™ outputs and 4 Dante™/AES67 inputs
  • 2 auxiliary outputs
  • 4 analogue inputs
  • MicroSD/SDHC audio player
  • Internal matrix and signal processing
  • Web application for device configuration
  • Smart power management VersaPower
  • Control and scheduled events for automation
  • Customized User Panels

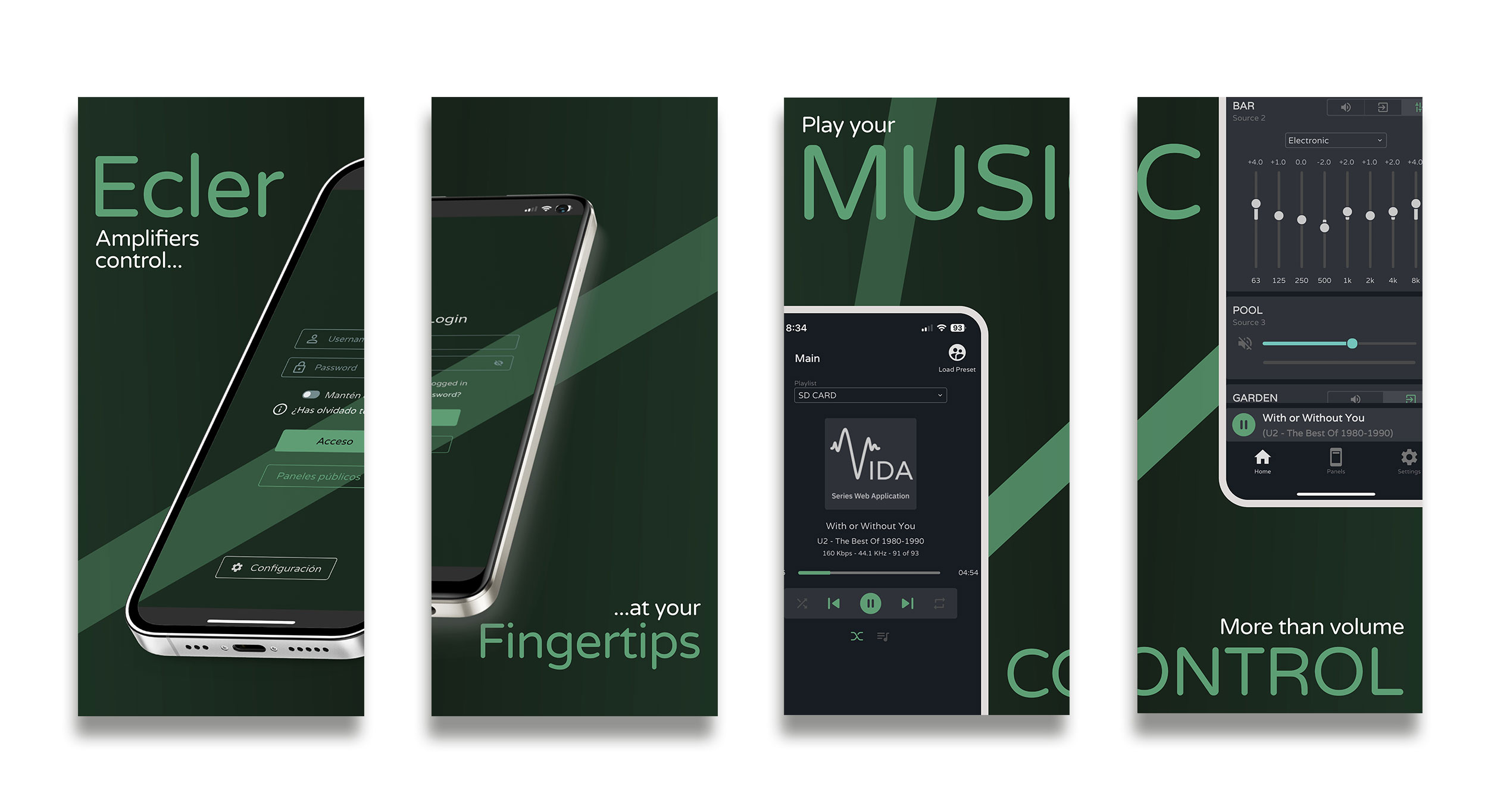

  • Remote control user application for iOS/Android/Web
  • Ultra low power consumption mode "Sleep Mode"
