TUBE

TUBE

Wireless Receivers | Reference: CTUBE3BK,CTUBE3WH

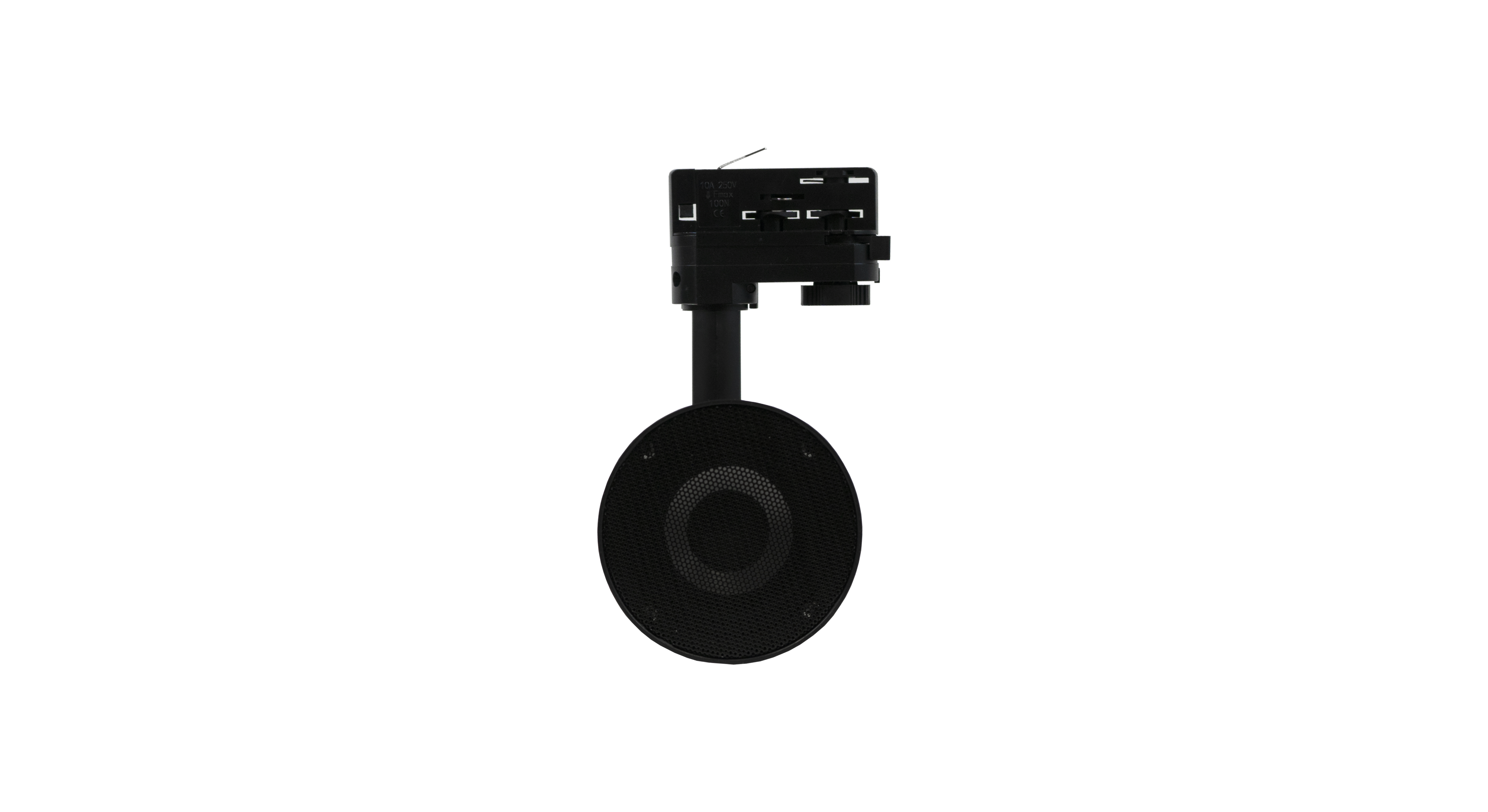

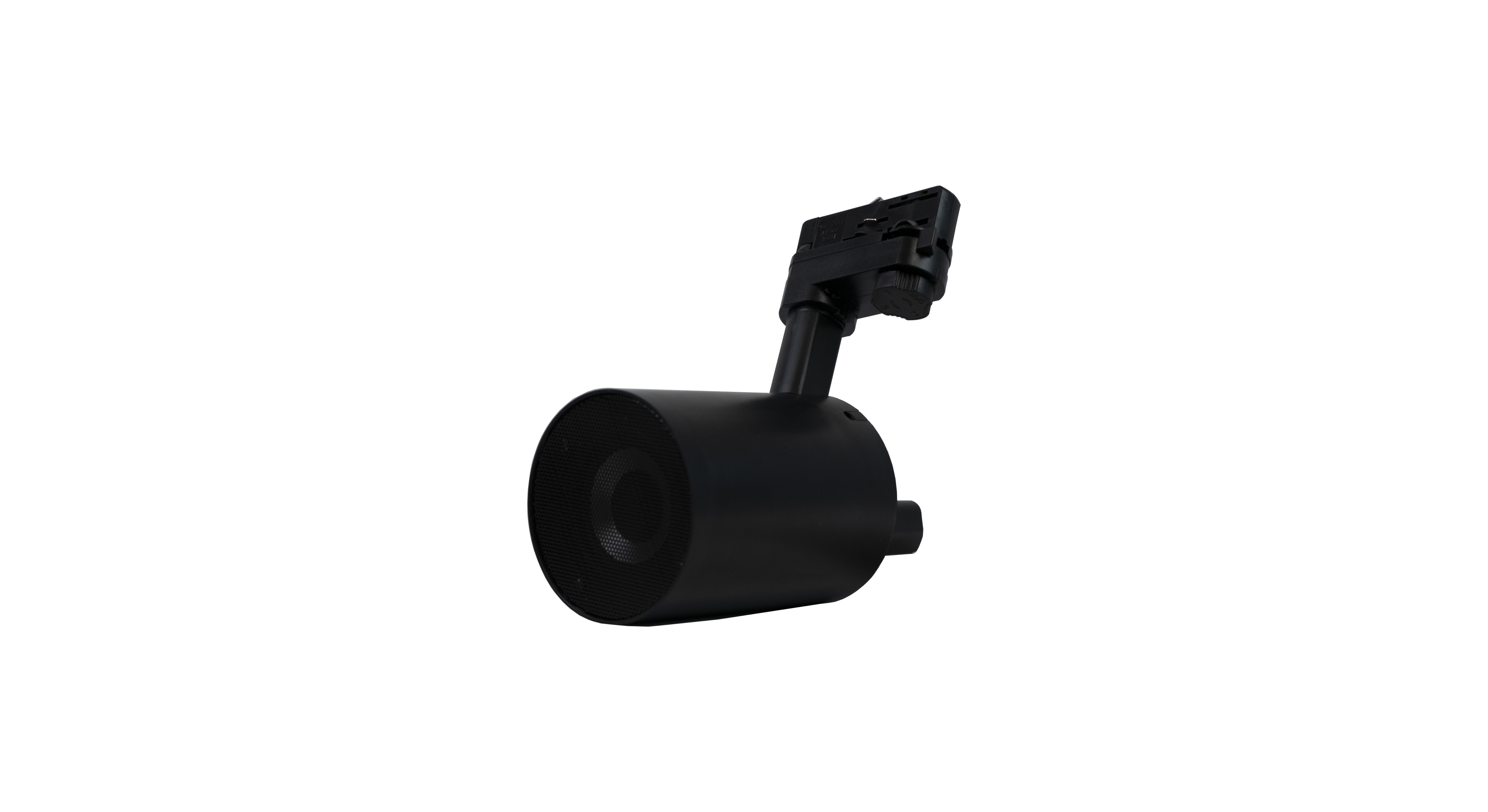

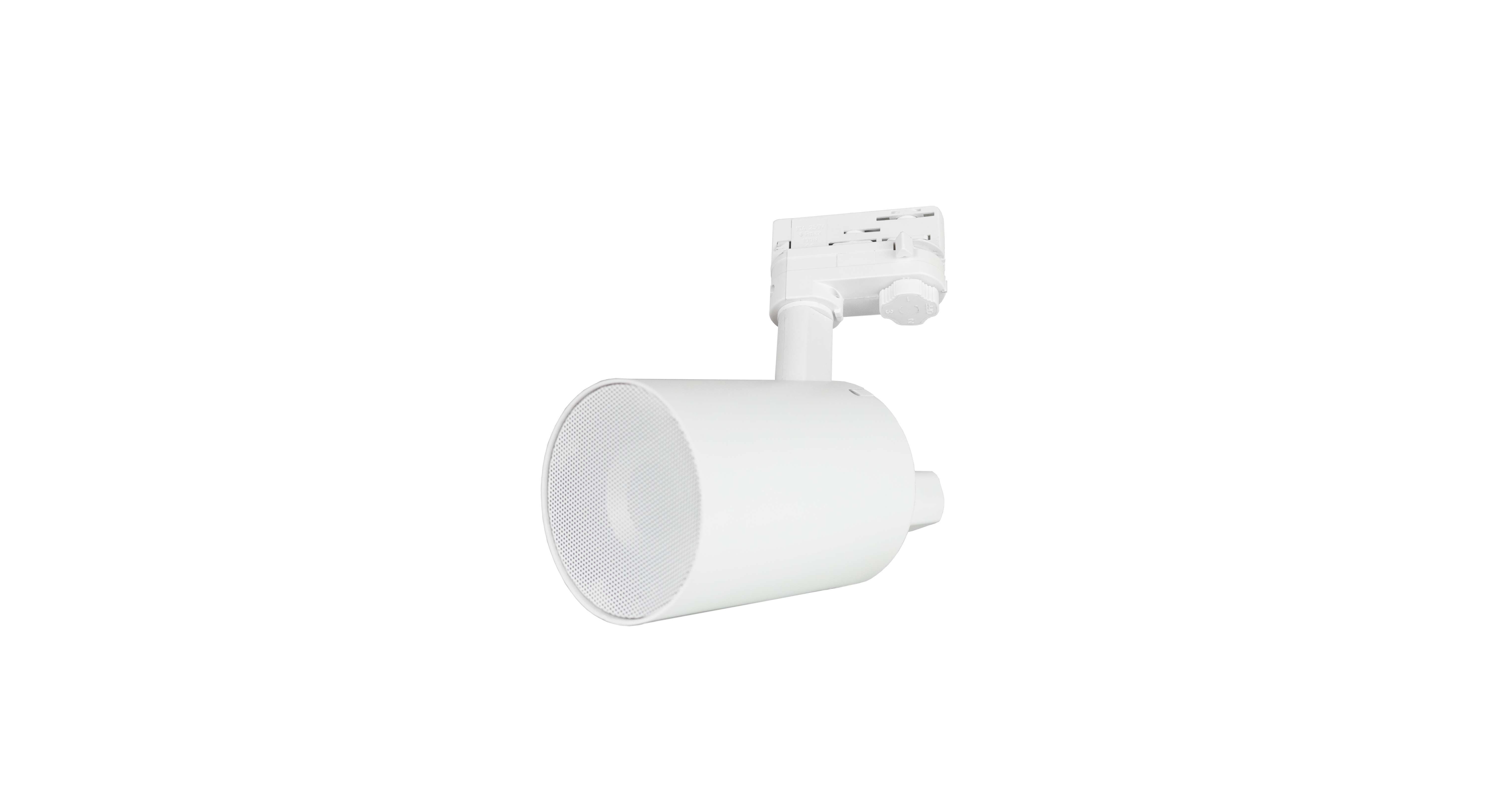

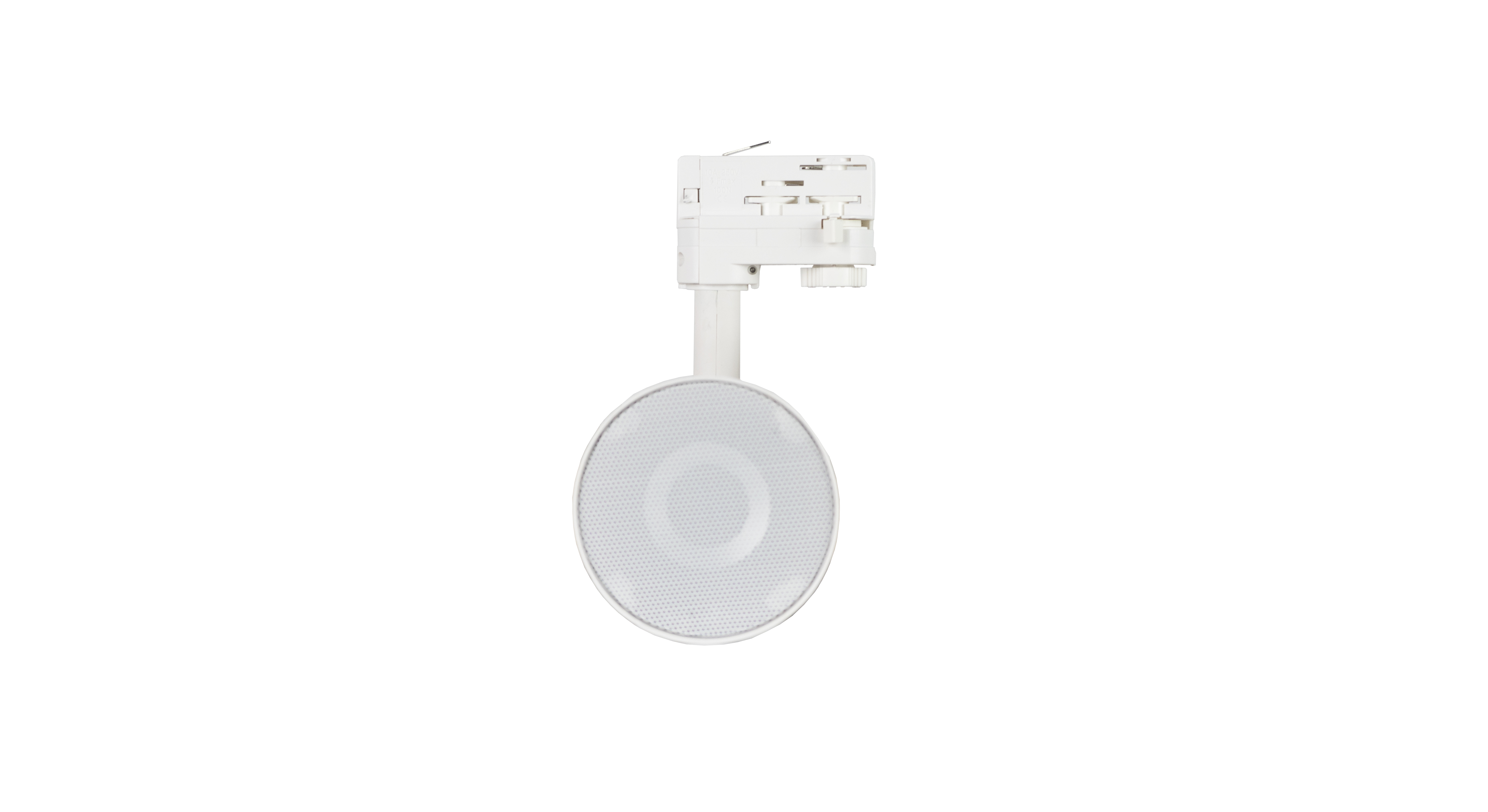

Download image

WiSpeak TUBE is a self-powered 3" lamp style loudspeaker with wireless audio reception and control capabilities under the control of the Master unit, featuring an installation system which is compatible with ceiling light rails.

Lamp style self-powered WiSpeak receiver, including 3” driver
Lighting rail mount included
Surface mount accessory available, optional (ref. TUBE SMA)
Universal, internal power supply, taking mains AC from the lighting rail bracket (100-240VAC 50-60Hz)
1 x WiSpeak wireless audio signal received, from the transmitter it is paired to
1 x AUX OUT analogue signal available (a copy of the received WiSpeak signal). It can be used for linking the unit to another WiSpeak transmitter, to extend the network, or to external audio devices, such as amplifiers, mixers or subwoofer units

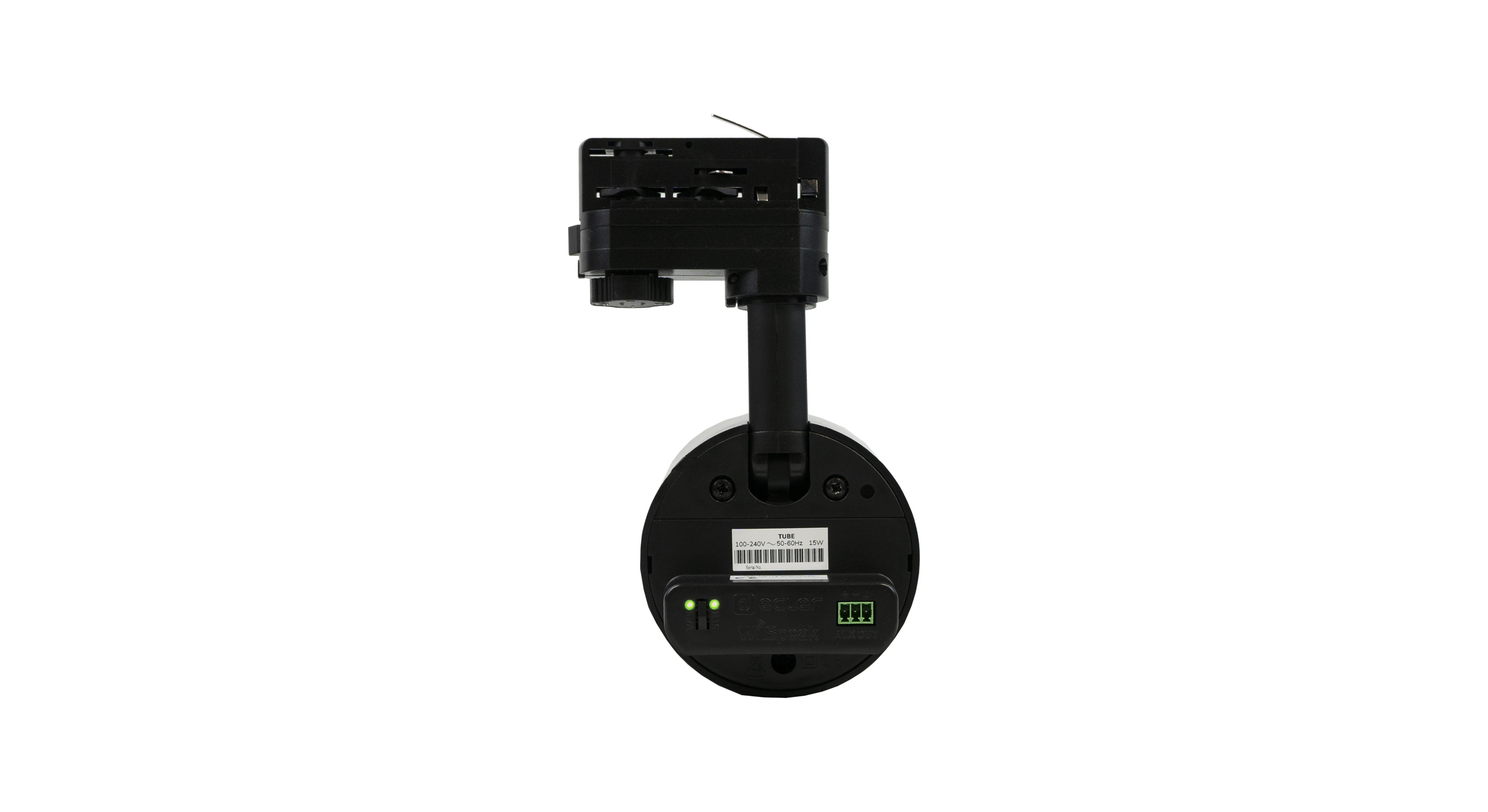

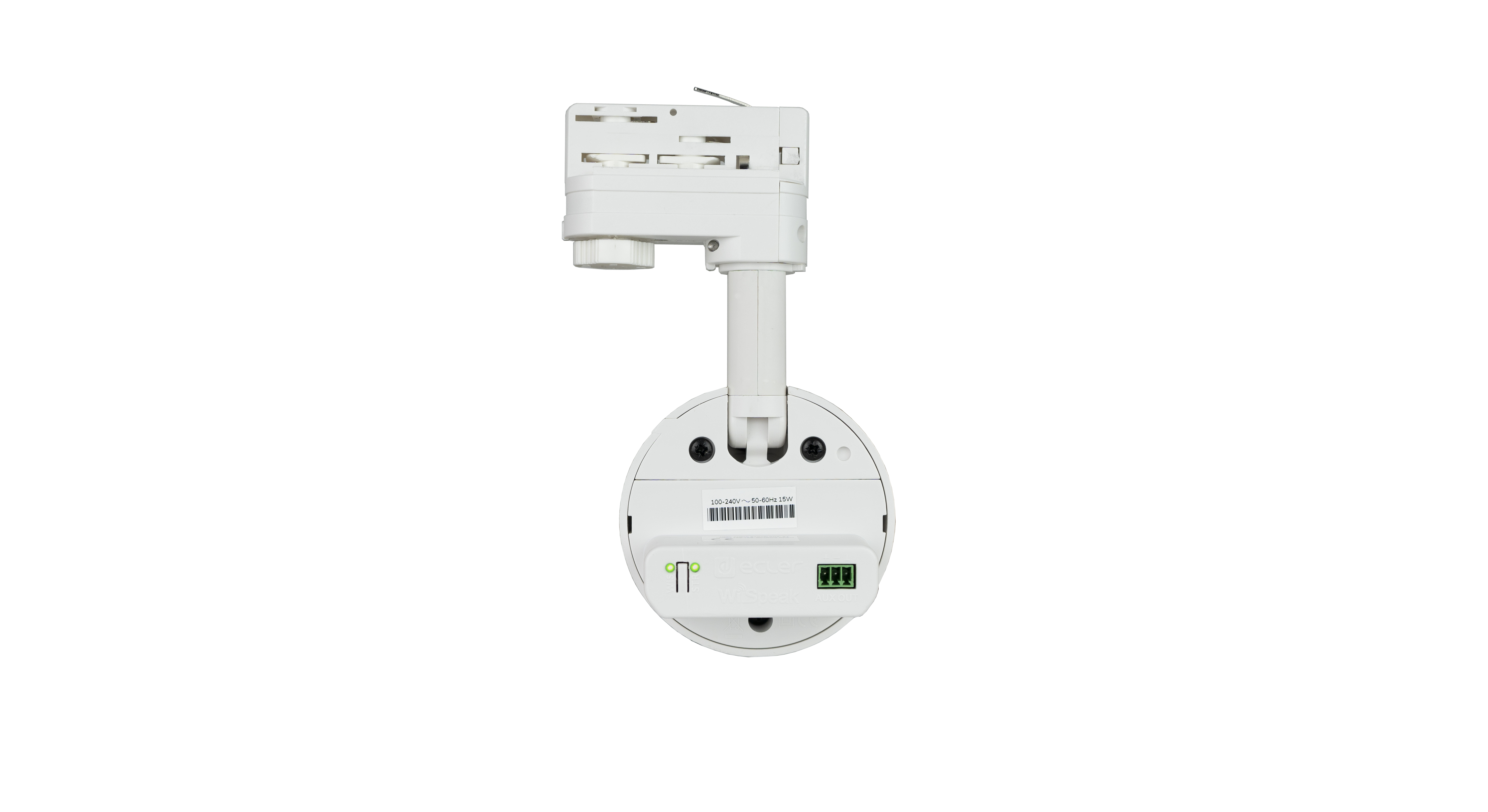

Back panel UNPAIR control and LED indicators

Applications

Retail Education Corporate Sports & Wellness Hospitality

Wis (rf wireless digital audio)

Frequency band

U-NII 5.1 – 5.8GHz (supported worldwide)
Up to 24 non-overlapping RF channels
DFS support

Coverage range

Up to 12m from a TX to any paired RX, direct
line of sight

Audio channels

WiSpeak CH1 / CH2

Audio transmission

24bit uncompressed, 48kHz SR

Digital Audio Sample size

24 bits

Digital Audio Sampling rate

48kHz

Digital Audio Frequency Response

20Hz – 20kHz (-0.1dB)

Digital Audio converters

DAC Resolution: 24 bit
DAC Dynaimic range: 100dB

Latency

From TX IN to RX AUX OUT <6ms
From TX IN to RX Speaker <6ms
Jitter among receivers ±1us

Pairing time

Up to 120s

Reconnection time

Up to 120s

System

Effective Freq. Range

105 - 20kHz (-10dB)

Coverage angle

180x180 (HxV)

Sensitivity

83 dB (1W/1m)

Maximum SPL

96 dB continuous / 102 dB peak

Transducers

Ways

1-way

Driver

3” driver

Nominal impedance

4Ω

Powered

Power

18 W RMS / 72 W Peak

Audio inputs

CH1 / CH2: Digital, Mono, RF Wireless Audio

Audio outputs

Internal Loudspeaker: Analog, Mono, Self powered
AUX OUT: Analog, Mono, Balanced, Euroblock

THD + Noise

<0.15% @1kHz Full power

Signal Noise Ratio

>95dB at RX AUX OUT

Input sensitivity

0dBV / 10kΩ

Electrical

Power supply

Universal, internal power supply

AC mains requirement

100-240VAC @ 50-60Hz

AC mains connector

From lighting rail bracket

Power consumption

15W (rated)

Monitoring and control

Volume control

via WiSpeak grip app.

Other controls

SOLO: via WiSpeak grip app
ID TEST SIGNAL: via WiSpeak grip app
PAIR / UNPAIR: via WiSpeak grip app and
Panel button

LED Indicators

WiS and STR LEDs

Programing and control

WiSpeak grip app

Physical

Connection type

Ceiling rail AC connection

Installation options

Ceiling light rails, or suface using TUBE SMA

Environmental

Certifications

FCC, EMC

Enclosure material

Grille material

Grille fixing system

Mounting system

Lighting rail mount compatible

Pan and tilt wall-mount

Swivel (pan and tilt)

Rail fixing system

4 wire 3 circuit track system compatible

Compatible rail systems

Global Track Pro or compatibles

Operating temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Operating humidity

<85% HR

Storage temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Storage humidity

<90% HR

Included accessories

Lighting rail mount

Optional accessories

Surface mount accessory (TUBE SMA)

Finished colour

White (RAL 9003) or black (RAL 9005)

Dimensions

96x110mm / 3.8” x 4.3” (∅xD)

Weight

0.8 kg / 1.76 lb

Pieces per box

1 unit

Shipping dimensions

195 x 185 x 245 mm / 7.68 x 7.28 x 9.65 in. (WxHxD)

Shipping weight

1.12 kg / 2.47 lb

Why there are audio drops in one or more speakers?

Why there is no audio at all or there are drops in all the speakers?

Check that the transmitter is powered ON and the WIS LED of the transmitter is permanently ON. If the STR LEDs of all the speakers are blinking, this means that there are problems with the WiS network.

Ensure that all the recommended distances are respected.
Ensure that there are not two transmitters in the same coverage radius
Ensure that there are no new wireless devices in the surroundings that can create RF contamination.

Why the system is not working correctly and the WiS LED blinks once every three seconds after a disc

This means that the discover process has not been completed. This is called a partial discover and it will be necessary to repeat the discover process until the WiS LED stays permanently ON. Ensure that all the previous discovered speakers are ON and in STREAMING MODE (WIS LED permanently ON). If not, it will be necessary to relocate the speaker trying to avoid obstacles as much as possible. If the problem persist and all the speakers are in the recommended coverage area, unpair all the speakers and perform a discover operation again.

Why some speakers are not paired?

Repeat the discover process again and check that all the speakers has been successfully paired. If the problem persists, unpair all the speakers and perform another discover operation. WARNING, if a speaker has not been paired after a discover operation it could mean that this speaker has coverage problems. It could be necessary to relocate the speaker trying to avoid obstacles as much as possible.

Why speaker quality LED in WiSpeak grip app is orange or red almost all the time?

The recommended speaker quality colour is green. If it is not green, it could mean that there are coverage problems.
