eGPA8-150

8x150 WRMS | class D | stereo | amplifier

Low Impedance | Reference: CEGPA8150C

eGPA8-150 is an 8x150 W RMS @ 4 ohm, high efficiency multichannel amplifier (class D). Auto stand-by function and fanless design, 100% silent. Thermal and overload protections. Anti-clip system.

8 analogue audio inputs x 8 powered audio outputs

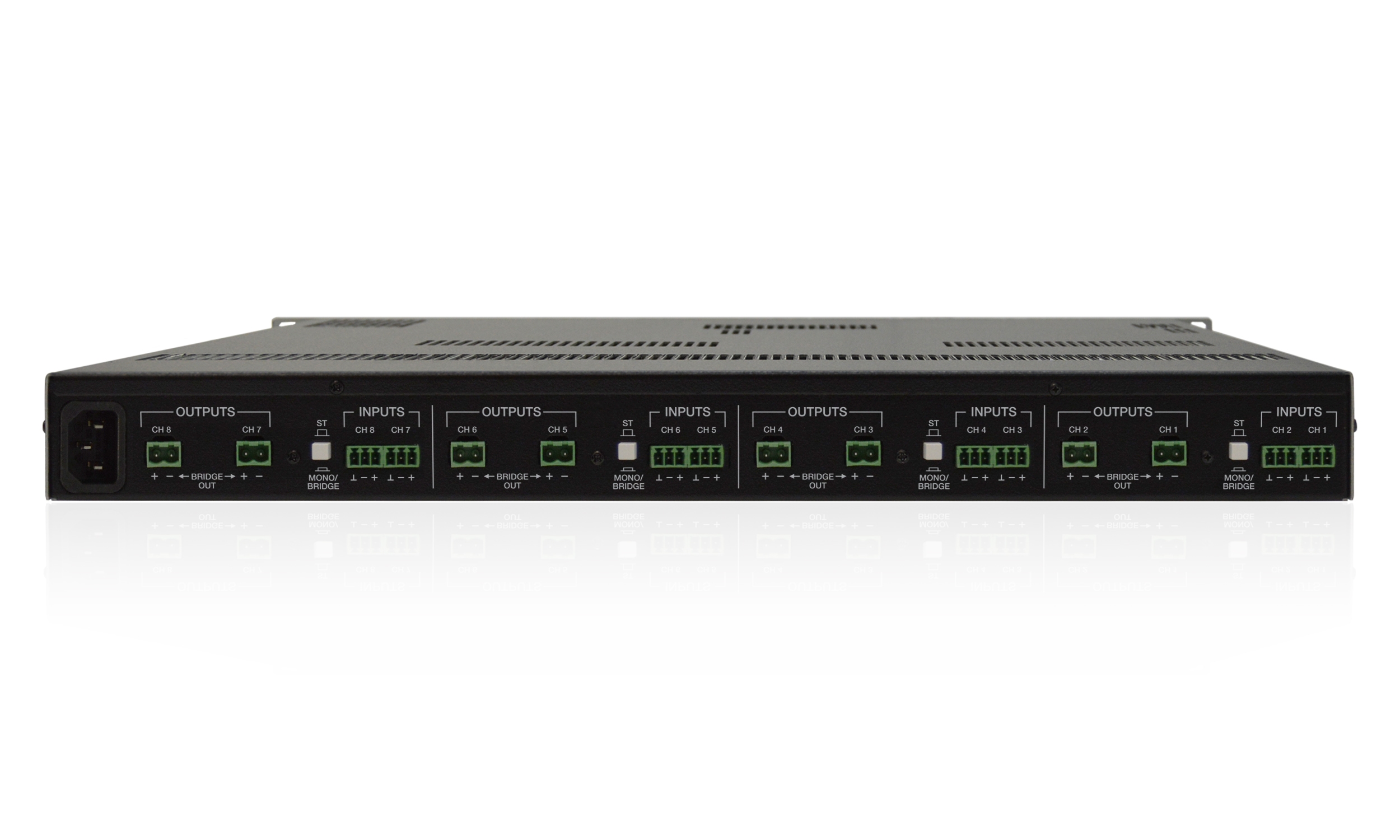

Euroblock input and output connectors
High efficiency, auto standby function and convection cooling (fanless, 100% silent)
BRIDGE mode ready
Thermal protection
Overload protection
Anti-clip system

Applications

Education Corporate Leisure Sports & Wellness Hospitality

Channels

Number of output channels

Output connection type

Euroblock

Output configuration

8x150 W RMS @ 4 Ω

Number of input channels

Input connection type

Euroblock

Input configuration

Analogue audio inputs

Output power

Max output power @ 4Ω

144W

Max output power @ 8Ω bridge mode

290W

Signal

Input sensitivity

0dB

Input impedance

>20kΩ (10kΩ unbalanced)

Frequency response

20Hz - 25kHz (-1dB, -3dB)

THD + Noise

<0.05% @ 1kHz Full Power

SNR

>85dB 20Hz - 20kHz @ 1W/4Ω

Crosstalk

>55dB @ 1kHz

CMRR

>55dB

Damping factor

>150 1kHz @ 8Ω

Electrical

Power supply

Universal, regulated switch mode with PFC (Power Factor Correction)

AC mains requirement

100-240 V @ 50-60Hz

AC mains connector

AC socket connector (IEC)

Power consumption

Power Consumption (1/3 POWER, @ 4Ω)

pink noise, 536 W

Power Consumption (1/8 POWER, @ 4Ω)

pink noise, 226 W / 260 VA

Power Consumption (IDLE)

58 W

Power Consumption (STBY)

36 W

Technologies

Amplification technology

Class D

Energy save

Auto standby function

Efficiency

80% @ max power

Cooling

Convection (fanless)

Protections

AC protection

DC protection

VHF protection

Shrot-circuit protection

Yes

Clip limiter

Yes

Long term limiter

Thermal protection

Yes

Settings

Attenuators

Front panel knobs per channel

Filters

15Hz 3rd order Butterworth Hihg-Pass filter

Output settings

Operating mode selector: STEREO, MONO - BRIDGE (Lo-Z)

Auto stand-by function

Front panel switch

Auto stand-by time

90 seconds

Power ON/OFF

Front panel switch & indicator

Monitoring

Signal Present

SP LED (Green) per channel

Cliping

CLIP LED (Red) per channel

Thermal

TH LED (Red)

Protect

PROT LED (Red)

Standby

STBY LED (Orange)

Physical

Operating temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Operating humidity

<85% HR

Storage temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Storage humidity

<90% HR

Installation options

19" rack format (1RU)

Dimensions

440 x 44 x 341 mm / 17.32 x 1.73 x 13.43 in. (WxHxD)

Weight

6.5 kg / 14.43 lb

Shipping dimensions

510 x 70 x 590 mm / 20.1 x 2.76 x 23.23 in. (WxHxD)

Shipping weight

7.9 kg / 17.42 lb
