eHMA60: 60 WRMS | powered |audio mixer. Mixing Amplifiers.

eHMA60

60 WRMS | powered |audio mixer

Mixing Amplifiers | Reference: CEHMA60C

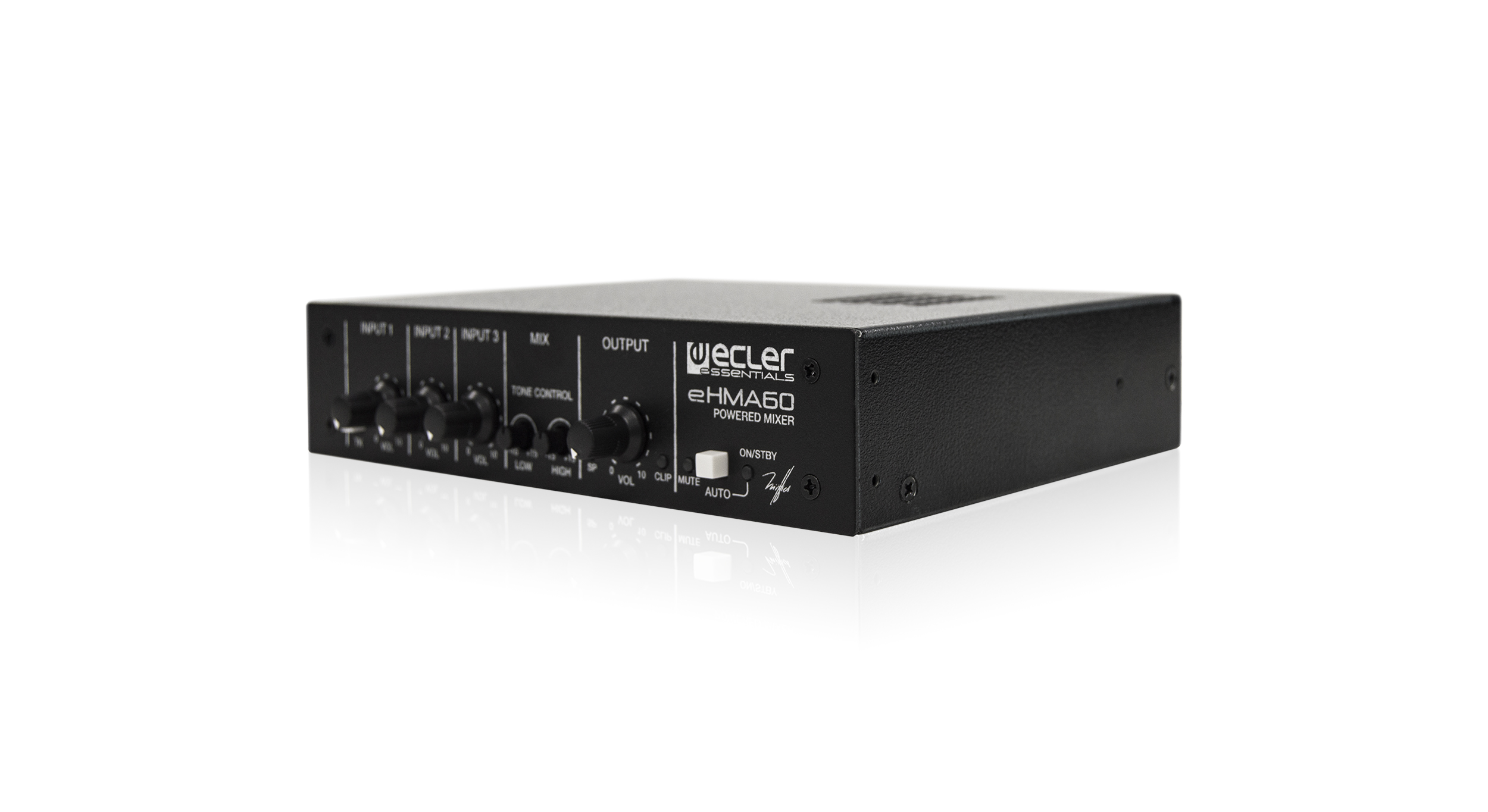

eHMA60 is a self-powered audio mixer including one MIC input and two MIC/LINE ST inputs. It features a 60W powered mono output that supports both low (4 ohm) and high impedance (70V, 100V) loudspeaker lines. It also includes an audio priority system (paging, emergencies, etc.), 2 band tone control, auto stand-by mode, MUTE port, universal power supply unit and auto standby function.

1x60W @ 4ohm / 70V / 100V
1 MIC input
2 MIC / LINE inputs (INPUT 1 - Talkover function)
2-band EQ (BASS/TREBLE) for Mix Output
24VDC power supply included
24VDC Phantom Power (external switch)
MUTE port to remotely mute the unit from an external device, via dry contact closure
Auto Stand-by function
Rack mount kit included

Applications

Retail Leisure Hospitality

CHANNELS

Number of output channels

Output connection type

Euroblock

Output configuration

1 x 60 W @ 4Ω or 70V/100V

Number of input channels

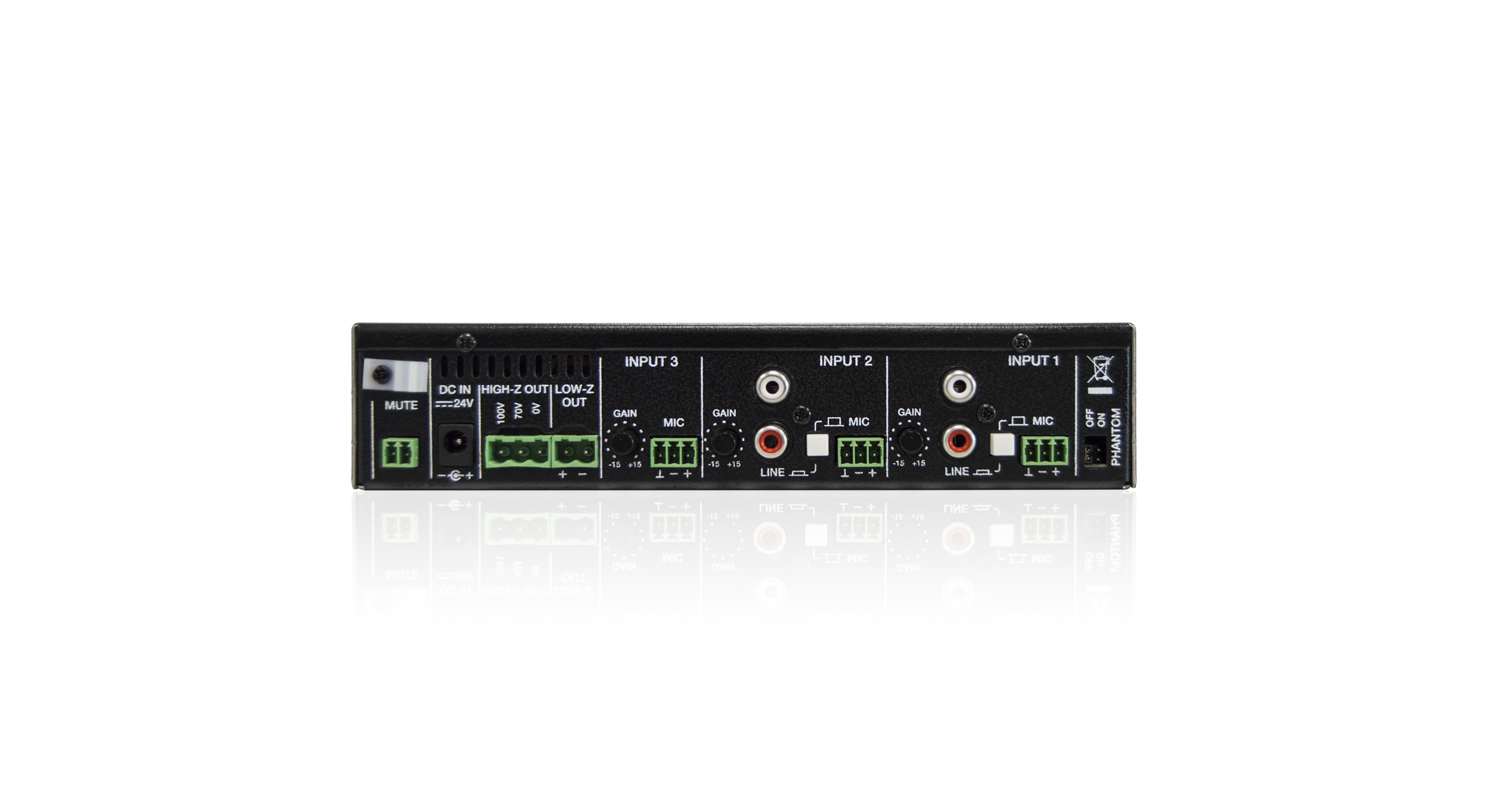

Input connection type

MIC: balanced Euroblock
LINE: unbalanced double RCA

Input configuration

1 MIC input
2 MIC/LINE inputs

OUTPUT POWER

Max output power @ 4Ω

66W

Max output power @ 100V

60W @ 166Ω

ANALOGUE AUDIO INPUT PORTS

Number of input ports

Connection type

Euroblock and double RCA

Input sensitivity

LINE1-2: -15dBV to + 15dBV
MIC1-3: -20dBV to -50dBV

Input impedance

LINE1-2: >10 kΩ
MIC1-3: >1 kΩ

CMRR

MIC (BAL): >65dB @ 1kHz

Phantom power

24VDC (external switch)

ANALOGUE AUDIO OUTPUT PORTS

Number of output ports

Connection type

Euroblock

Crosstalk

>65dB @ 1kHz

DEVICE CONTROL

Tone Control

2-band tone control

Tone Frequency Cut

BASS: 100Hz ±15dB
TREBLE: 10kHz ±15dB

Talkover

Yes

Control Buttons

1x Talkover switch, 1x Auto-standby switch, 1x phantom ON/OFF,

Status Indicators

SP, CLIP, MUTE, ON/STBY

ELECTRICAL

Power supply

Universal

Secondary power supply

External 24VDC IN backup supply systems compatible

AC mains requirement

100-240VAC + External PSU 24VDC

AC mains connector

DC24V socket connector

POWER CONSUMPTION

Power Consumption (1/3 POWER, @ 4Ω)

pink noise, 36W / 62VA

Power Consumption (1/8 POWER, @ 4Ω)

pink noise, 17W / 33VA

Power Consumption (STBY)

<4W

TECHNOLOGIES

Energy save

Auto standby function

Efficiency

TBC

PROTECTIONS

AC protection

DC protection

VHF protection

Short-circuit protection

Clip limiter

Long term limiter

Thermal protection

REMOTE CONTROL CONNECTIONS

External MUTE

External dry contact closure

SETTINGS

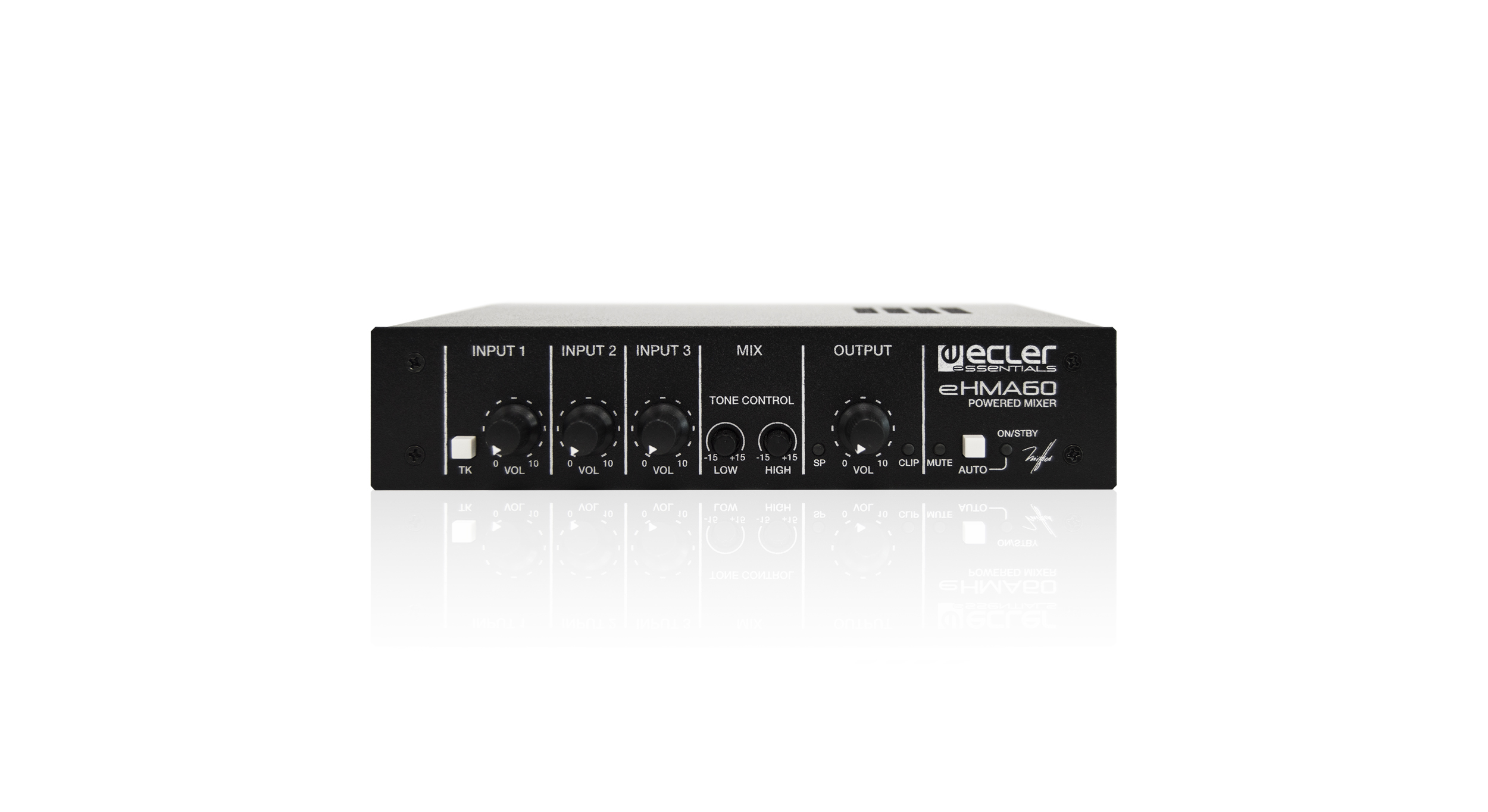

Attenuators

Front panel knobs per channel

Tone control

2-band EQ (BASS/TREBLE) for Mix Output

Filters

70Hz Hig Pass Filter

Output settings

Lo-Z/70V/100V outputs

Gain

Rear panel knobs

Auto stand-by function

Front panel switch

Auto stand-by time

120 seconds

Power ON/OFF

Power mains switch (or by supplying power from external power supply)

MONITORING

Signal Present

SP LED (Green)

Cliping

CLIP LED (Red)

Standby

STBY LED (Orange)

PHYSICAL

Operating temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Operating humidity

<85% HR

Storage temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Storage humidity

<90% HR

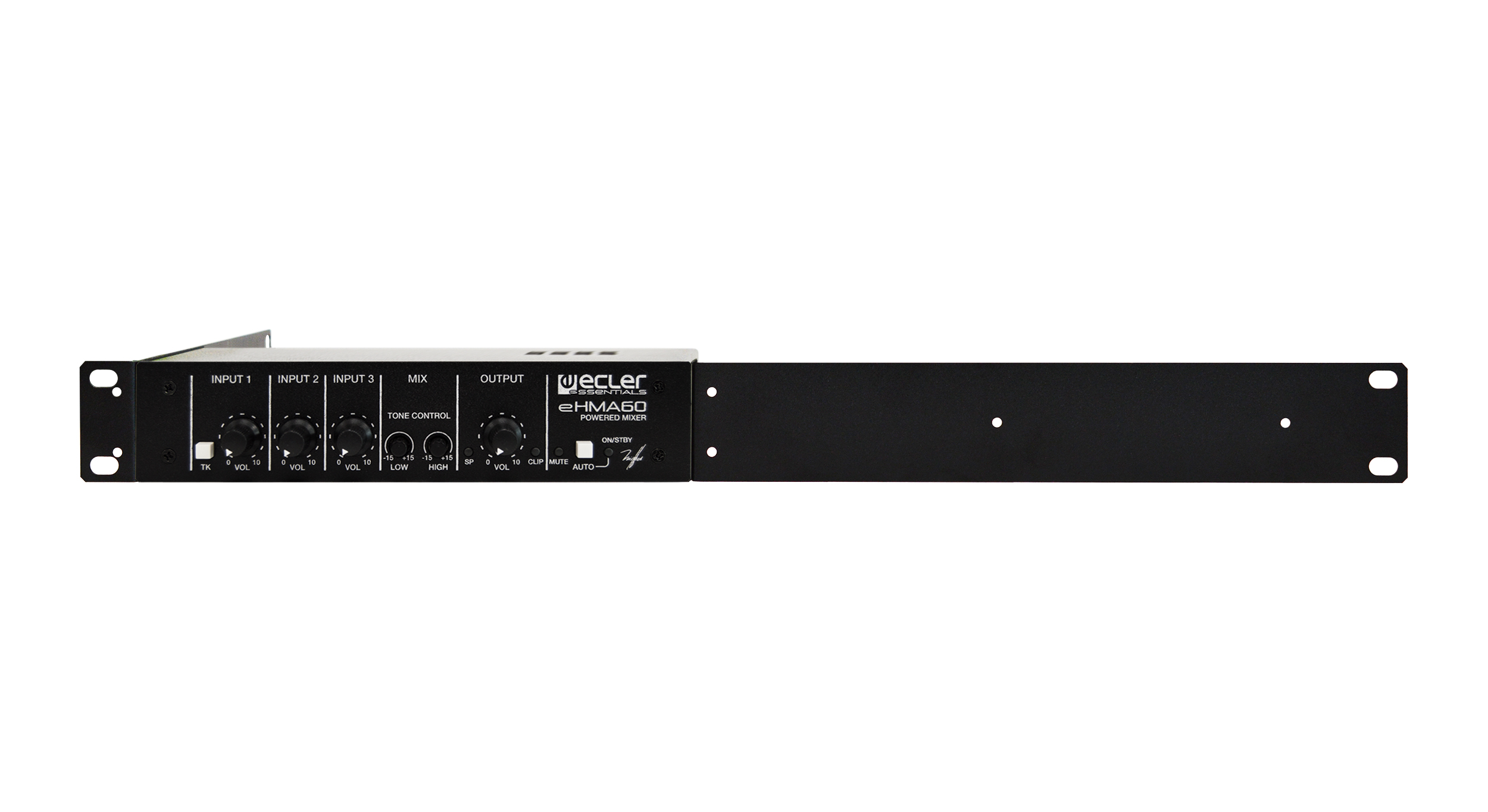

Installation options

19" rack format (1 or 2 RU)

Included accessories

24VDC power supply

Optional accessories

UHRMKIT

Dimensions

Knobs excluded: 200 x 44 x 150 mm / 7.87 x 1.73 x 5.91 in. (WxHxD)

Weight

1.9 kg / 4.19 lb

Shipping dimensions

260 x 60 x 450 mm / 10.24 x 2.36 x 17.72 in. (WxHxD)

Shipping weight

2.8 kg / 6.17 lb
