CA40: 2x20 WRMS | stereo | micro-amplifier

CA40

2x20 WRMS | stereo | micro-amplifier | EQ

Ultra-Compact Amplifiers | Reference: CCA40

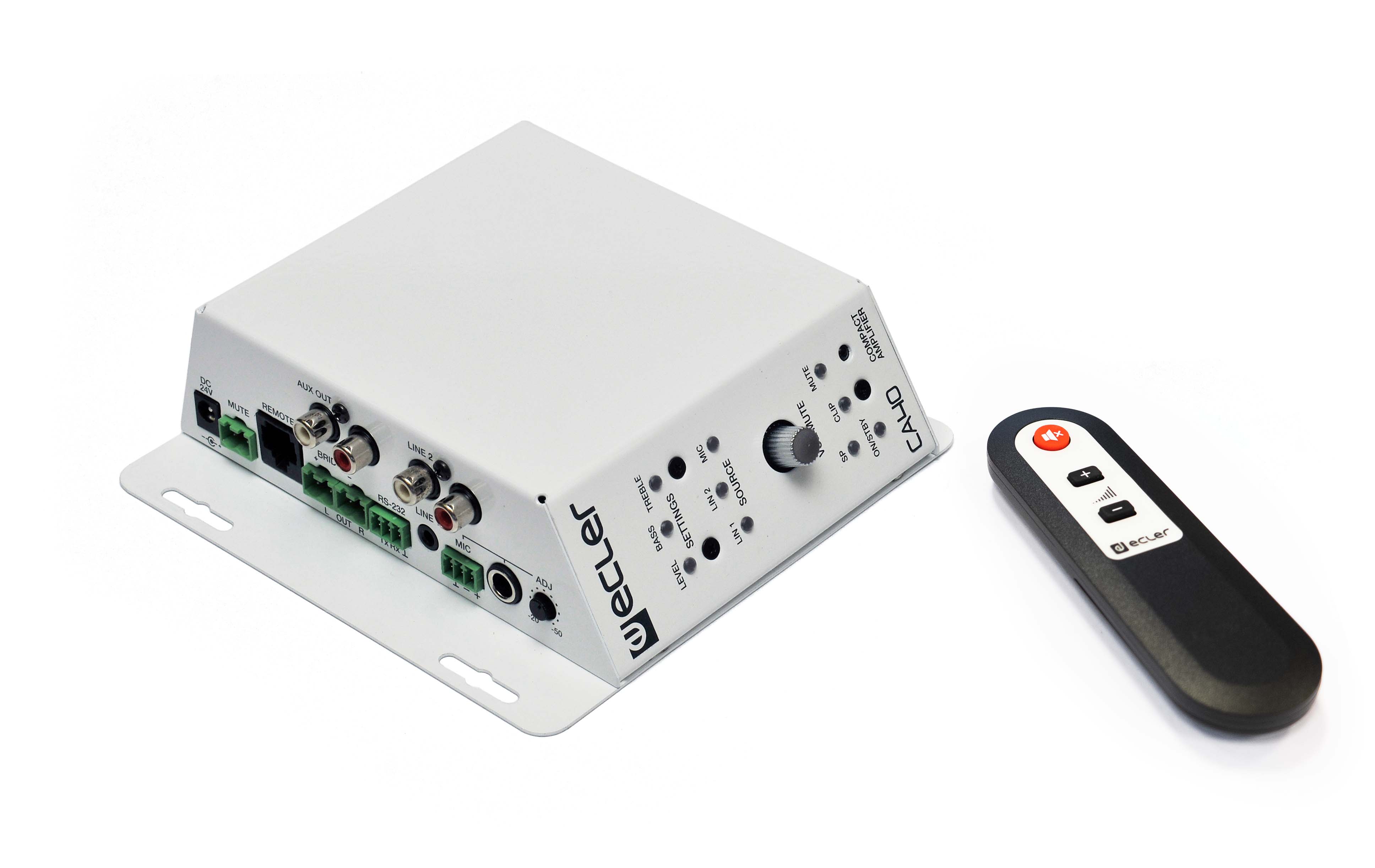

CA40 is a 2 x 20 WRMS @ 4Ω stereo amplifier with a tiny size but amazing remote control features: serial RS-232 port, IR receiver and 0-10 VDC remote port. It is an ideal solution in those audiovisual applications which require integration with external control devices: education classrooms, meeting rooms, multimedia presentations, retail shops, etc.

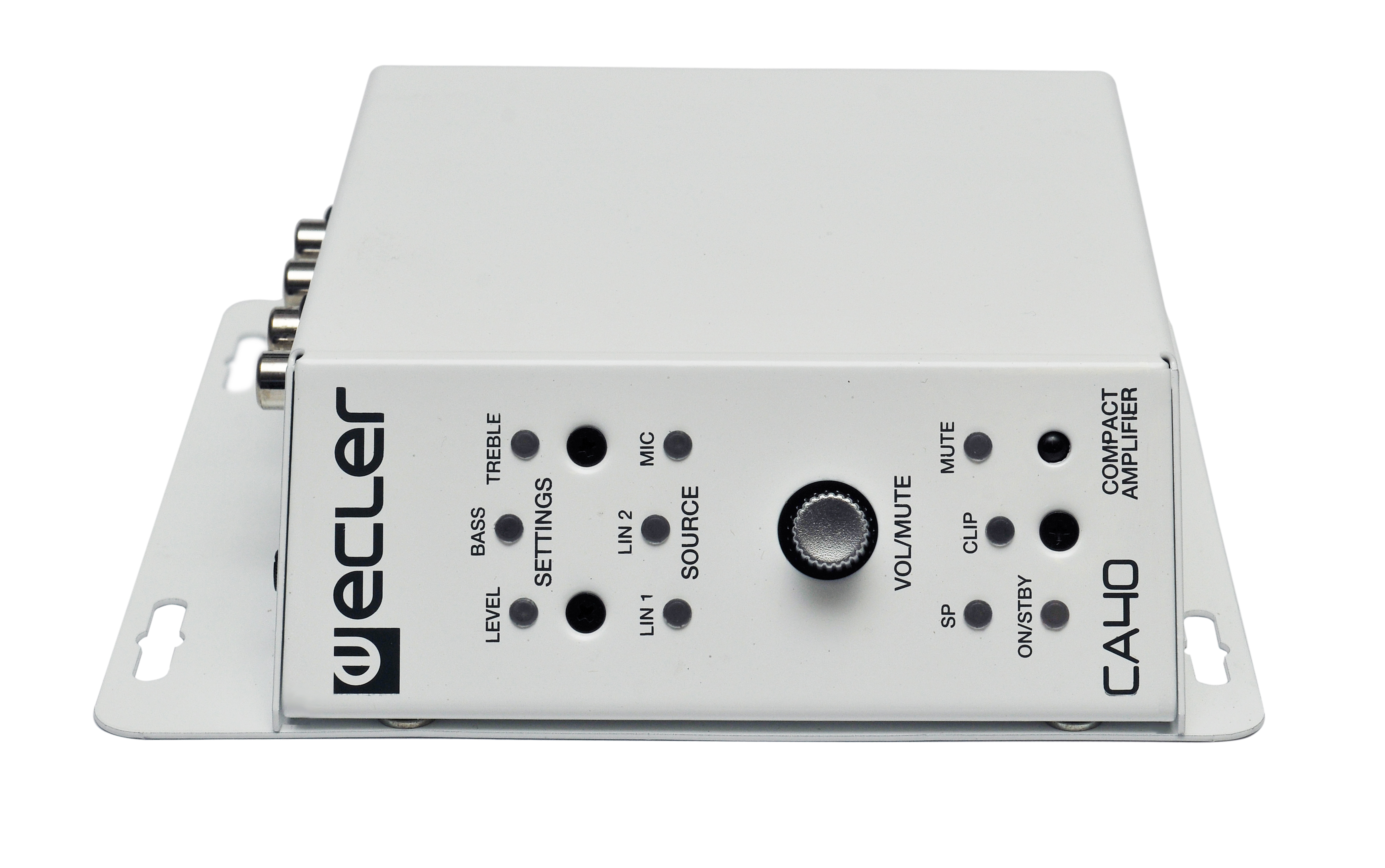

Digital local control, encoder type
Infrared remote control included
Remote control compatible with WPaVOL and WPaVOLSR wall panels (0-10 VDC)
RS-232 control port compatible with EclerCOMM software and CA-NET protocol
MUTE port for external muting of the unit when an evacuation system must be activated
Presets / sources management via RS-232 or 0-10 VDC remote control port
AUTO STANDBY function
Light and silent (fanless) design

Applications

Retail Education Corporate Leisure

CHANNELS

Number of output channels

2 + 1 AUX

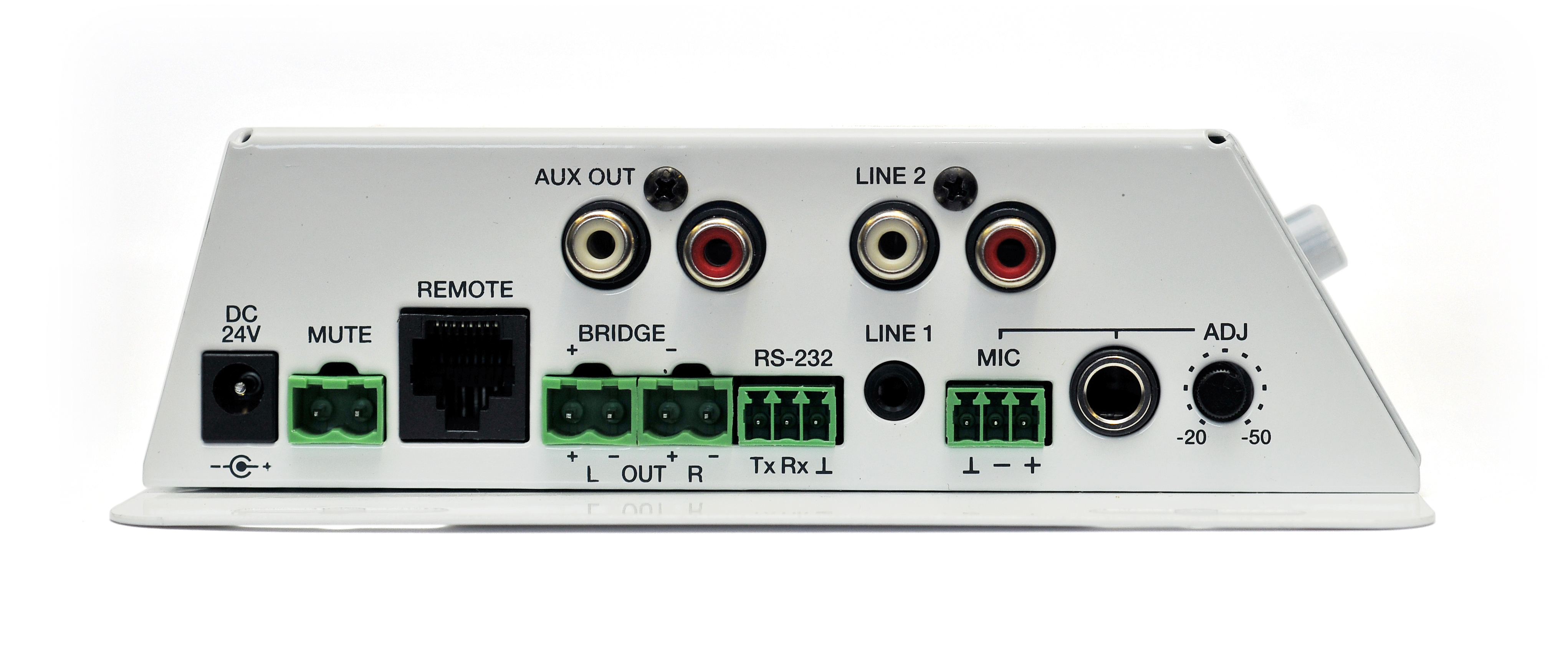

Output connection type

Euroblock

Output configuration

2 x 20 W RMS @ 4Ω amplifier

Number of input channels

Input connection type

MIC: balanced Euroblock or jack
LINE: unbalanced minijack or double RCA

Input configuration

1 MIC input
2 LINE inputs

OUTPUT POWER - All channels driven @ 1%THD

Max output power @ 8Ω

STEREO 2x10W

Max output power @ 4Ω

STEREO 2x18W

Max output power @ 8Ω bridge mode

1x36W

SIGNAL

Input sensitivity

LINE: 0dBV (-6dBV internally selectable)
MIC: -20 to -50dBV

Input impedance

LINE: >8kΩ
MIC: >1kΩ

Frequency response

20Hz - 50kHz (-3dB)

THD + Noise

SPRK OUT: < 0.15% @ 1kHz
AUX OUT: < 0.02%

SNR

LINE: >85dB
MIC (BAL): >65dB

Crosstalk

>55dB @ 1kHz

CMRR

MICRO (BAL): >65dB @ 1kHz

ELECTRICAL

Power supply

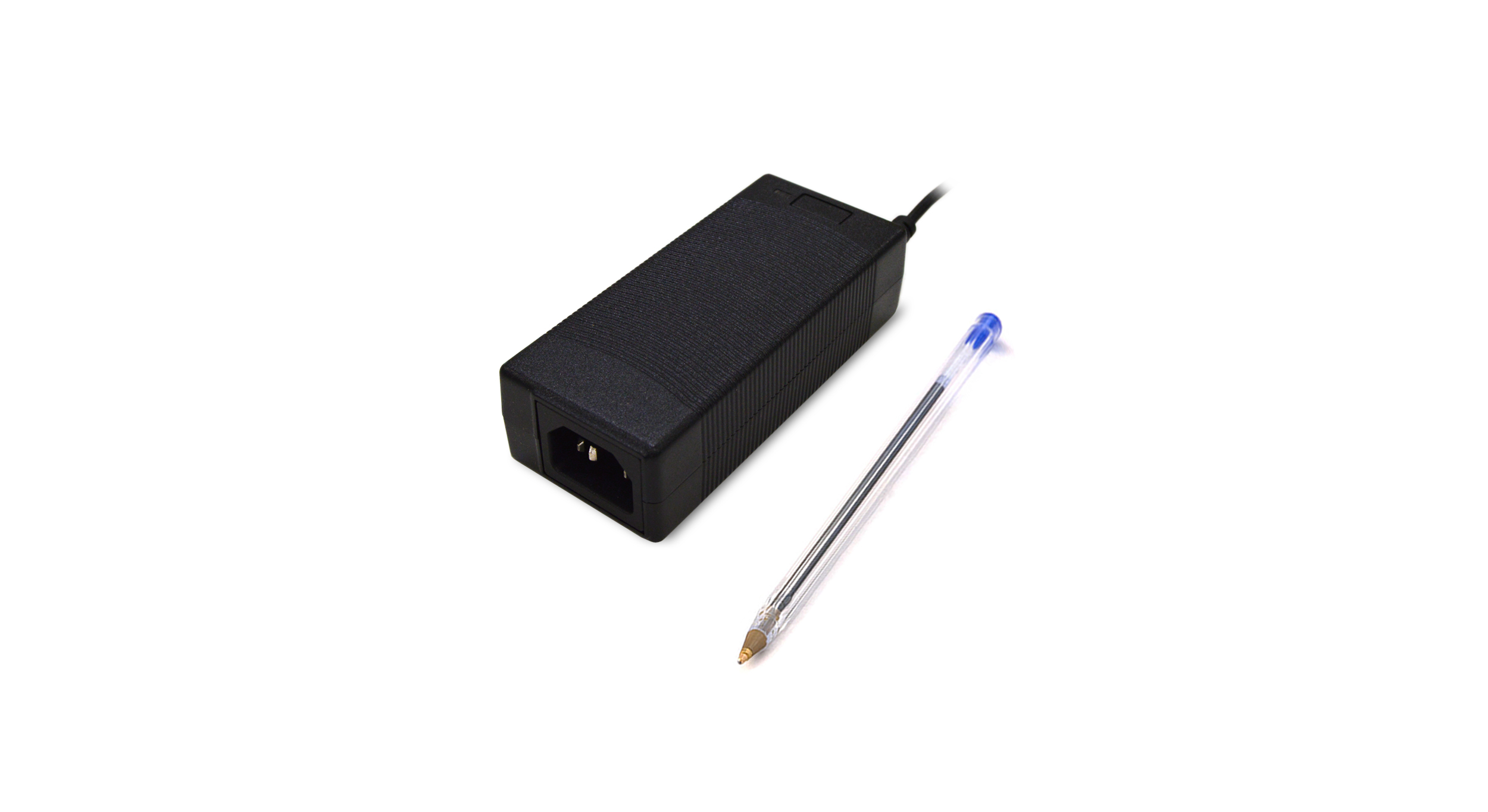

Universal external power source

AC mains requirement

100-240 V @ 50-60Hz + External PSU 24VDC

AC mains connector

DC24V power connector

POWER CONSUMPTION

Power Consumption (1/3 POWER, @ 4Ω all channels driven)

pink noise, 13W / 32VA

Power Consumption (1/8 POWER, @ 4Ω all channels driven)

pink noise, 7W / 21VA

Power Consumption (STBY/SLEEP)

<3W

TECHNOLOGIES

Energy saving

Auto standby function

Cooling

Convection (fanless)

PROTECTIONS

AC protection

DC protection

VHF protection

Short-circuit protection

Clip limiter

Long term limiter

Thermal protection

REMOTE CONTROL CONNECTIONS

GPIs

Volume & Input selection (0-10V. based)

External MUTE

Power free contact (infrared remote)

SETTINGS

Attenuators

Front panel knob

Tone control

2-band independent tone control (Bass, Treble) for the microphone in-jack and 1&2 line-in connection.

Output settings

Stereo, parallel, and bridged mono outputs

Auto standby function

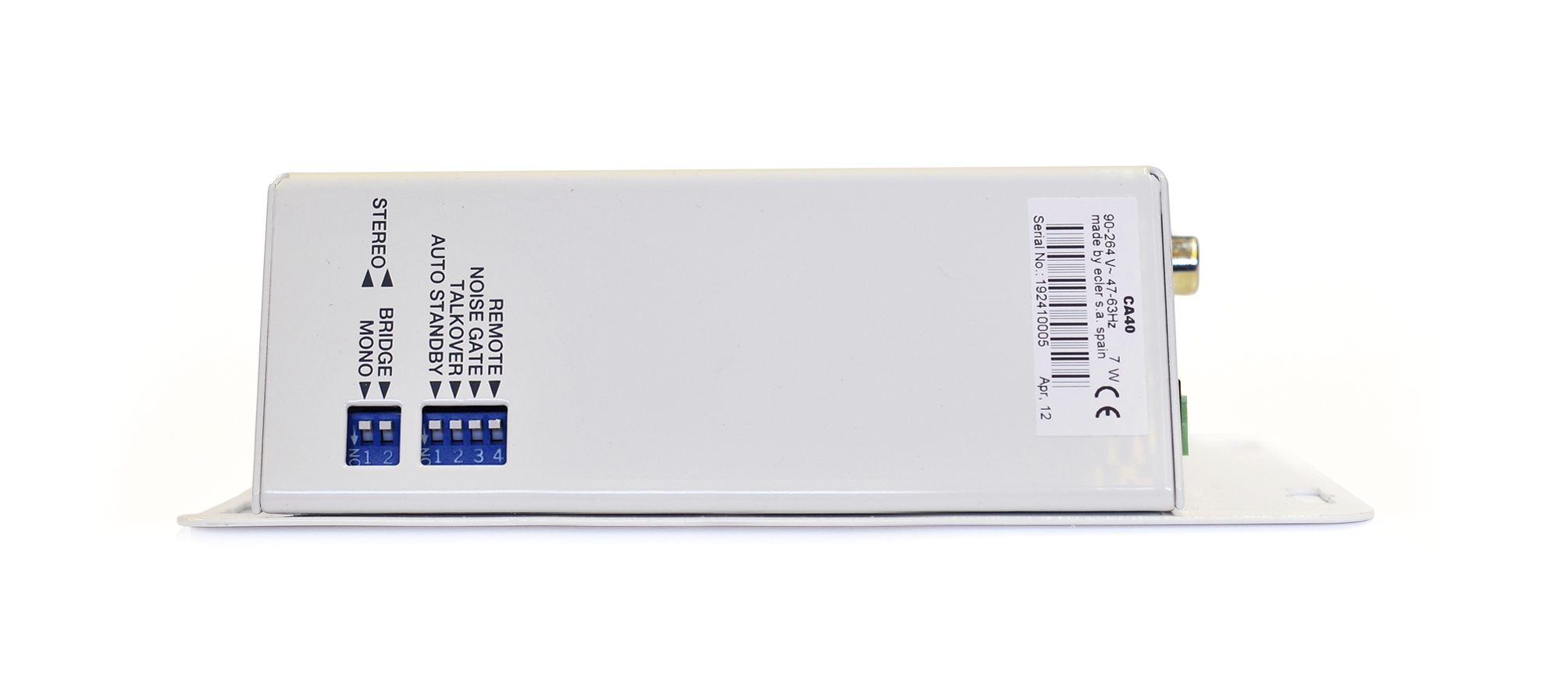

Rear panel micro switch

Auto standby time

120 seconds

CONNECTIVITY

Serial port

RS-232

Programing and control

EclerCOMM software or CA-NET protocol

MONITORING

Signal Present

SP LED (Green)

Cliping

CLIP LED (Red)

Standby

STBY LED (Orange)

PHYSICAL

Operating temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Operating humidity

<85% HR

Storage temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Storage humidity

<90% HR

Installation options

Wall or under a surface (table, shelf, cupboard, etc.)

Included accessories

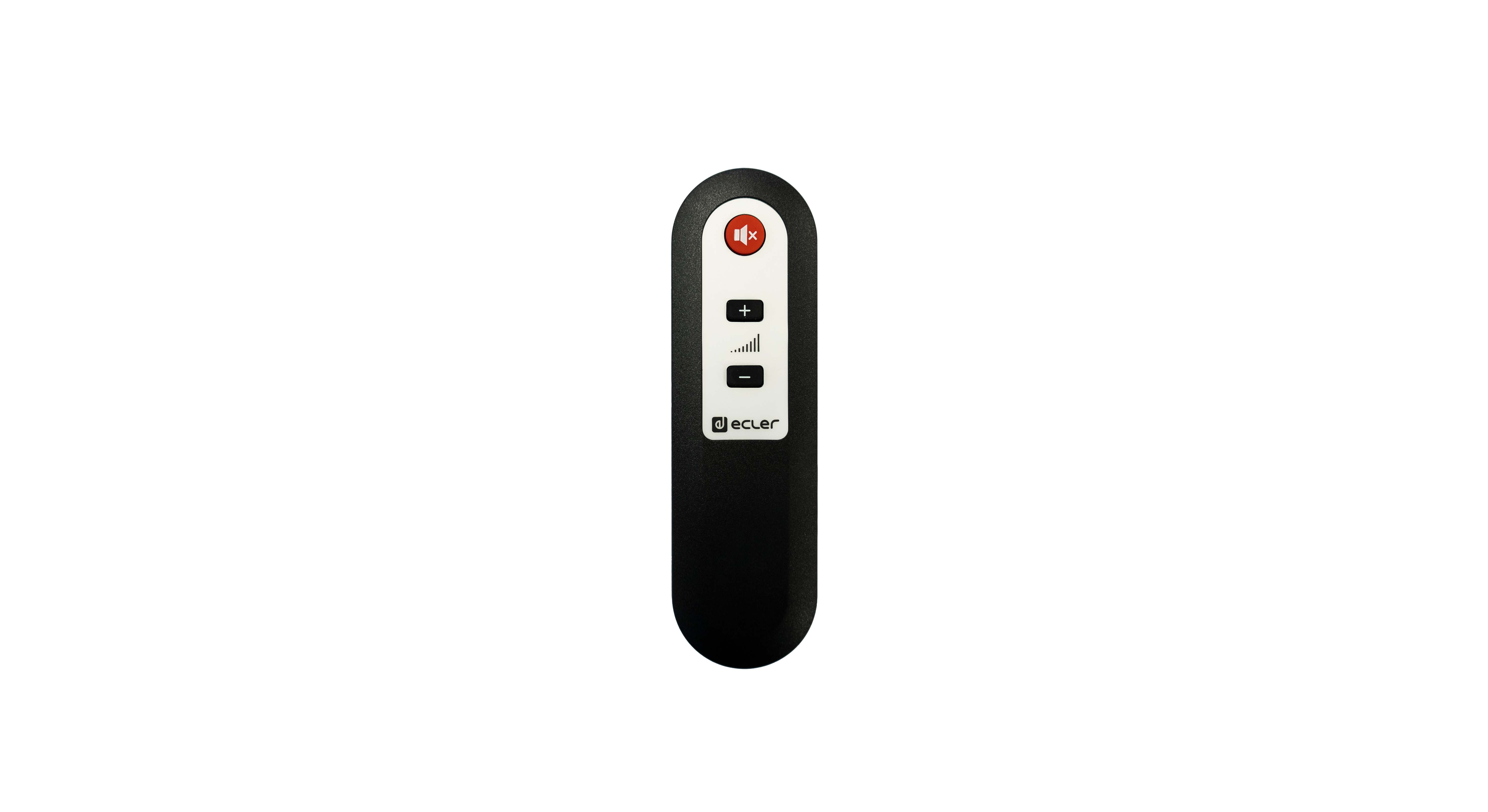

REVO-IR remote control

Optional accessories

WPaVOL or WPaVOL-SR for remote control

Dimensions

155 x 45 x 155 mm / 6.1 x 1.77 x 6.1 in. (WxHxD)

Weight

0.65 kg / 1.43 lb

Shipping dimensions

220 x 60 x 170 mm / 8.66 x 2.36 x 6.7 in. (WxHxD)

Shipping weight

1.4 kg / 3.1 lb
