HDMI 2.0 HDbaseT Extender | with Audio Extraction

HDBaseT | Reference: CVEOXPT44A

VEO-XPT44AImage 1

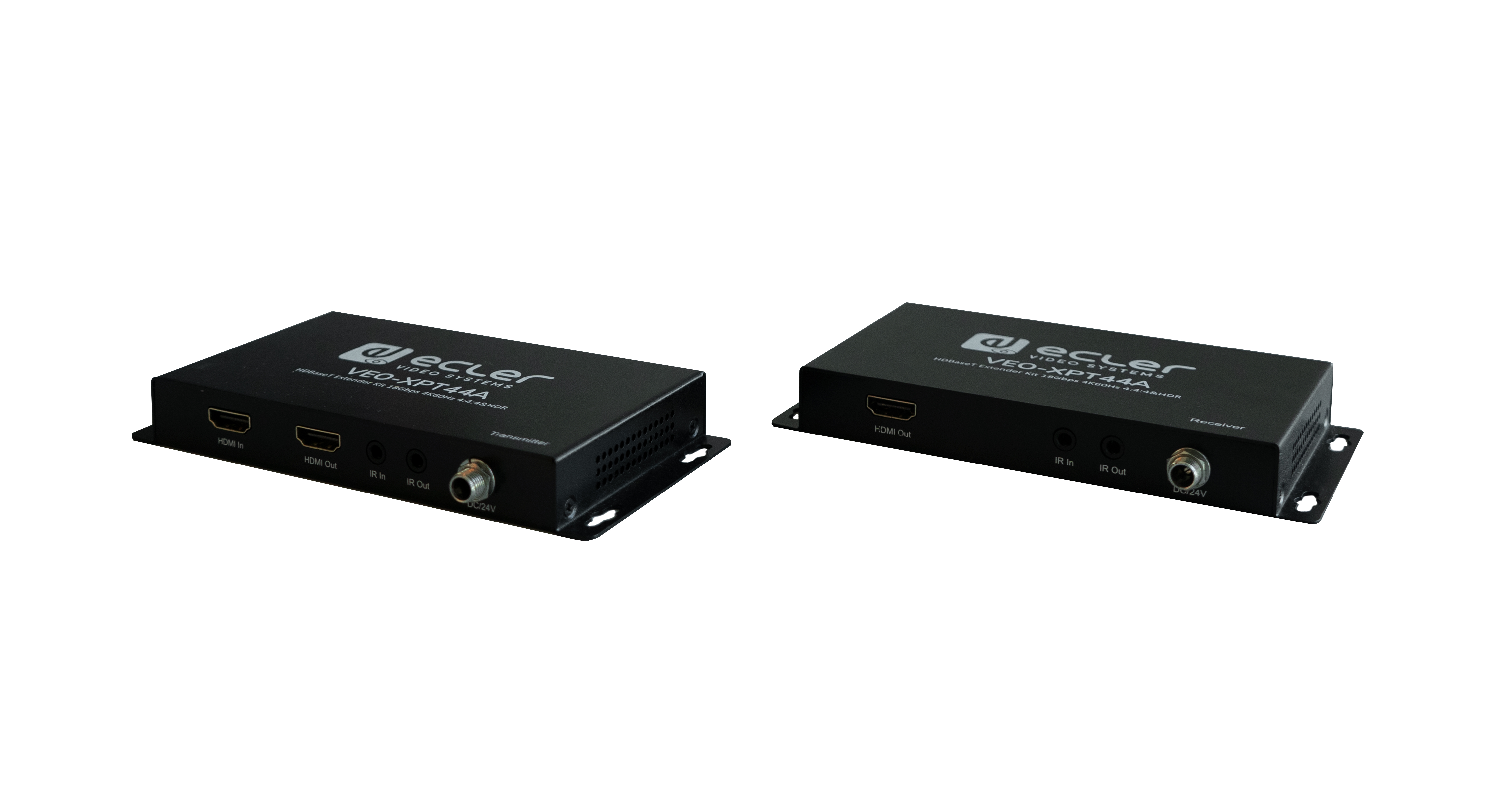

VEO-XPT44A is a professional HDBaseT extension kit that includes a transmitter and a receiver. It allows to extend a 4K video signal up to 40m or a Full HD signal up to 70m over a single Cat 5e/6 cable. It supports 4K video signals at 60Hz with 4:4:4 YUV chroma subsampling and HDR10. The transmitter includes a HDMI loop output for monitoring or daisy-chain connection. A stereo unbalanced output on Euroblock connector is available both, on the transmitter and the receiver, for easy integration. In addition, VEO-XPT44A includes bidirectional PoH feature so the transmitter can be powered by the receiver and vice versa. With a reduced form factor and the added features of RS-232 and bidirectional IR, this is the perfect solution for any applications where AV and control extensions are required.

  • Complete HDBaseT extender kit, no settings needed
  • Supports up to 4K@60hz, YUV, 4:4:4 resolution
  • Transmission distance reaches up to 70 meters when Full HD and 40 meters when 4Ksignal
  • HDMI loop out on Transmitter
  • Bi-directional IR and RS-232 pass-through
  • Bi-directional POH (Receiver powered by TRANSMITTER or vice versa)
  • PCM 2.0 Audio de-embedding on TRANSMITTER and RECEIVER
  • HDCP2.2/1.4 compliant
  • Support for HDR10 and 3D
  • ESD protection
