VEO-SWM44

4K 4x1 Presentation SWITCHER with VEOCast

Switchers And Matrixes | Reference: CVEOSWM44

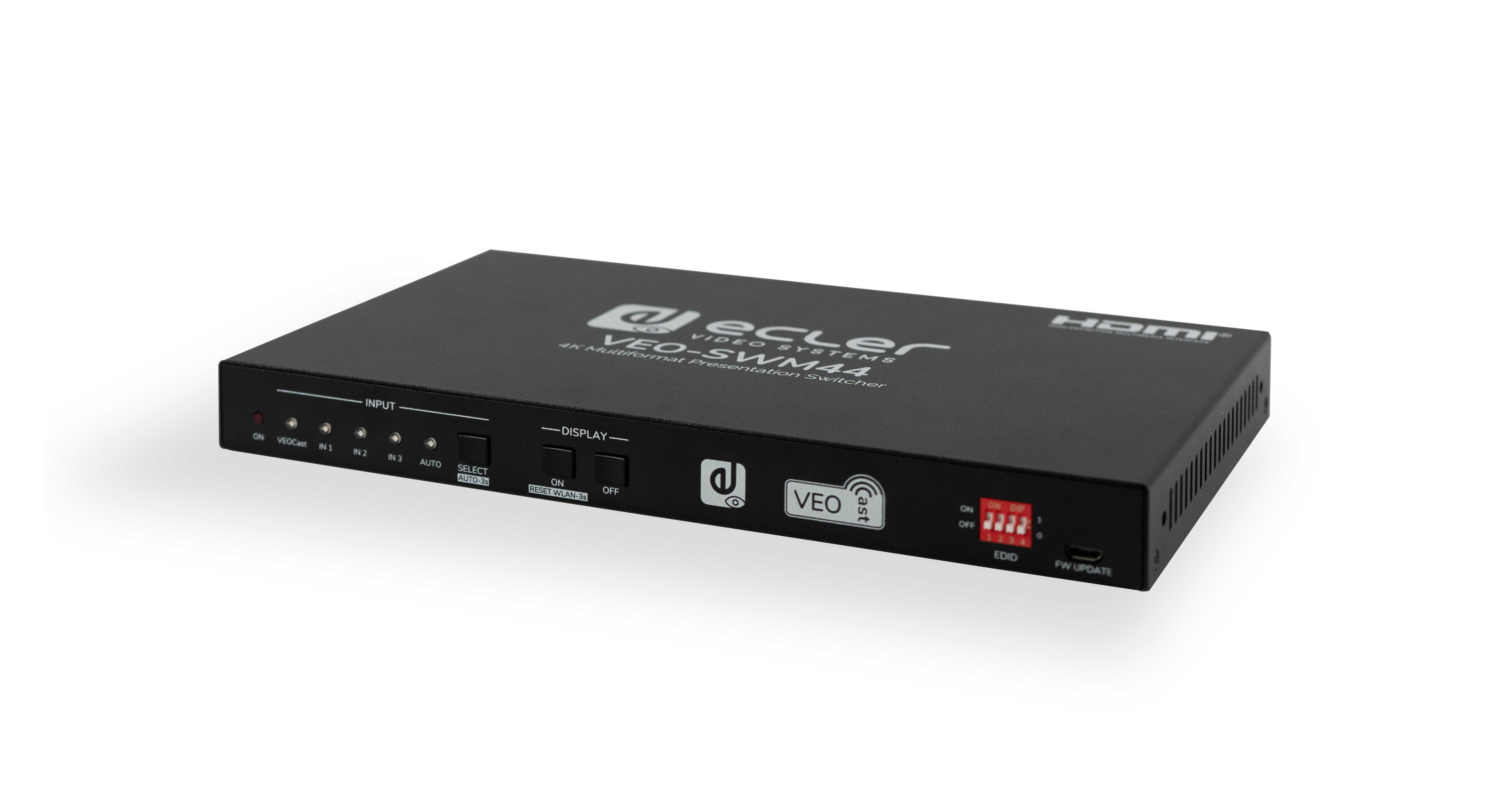

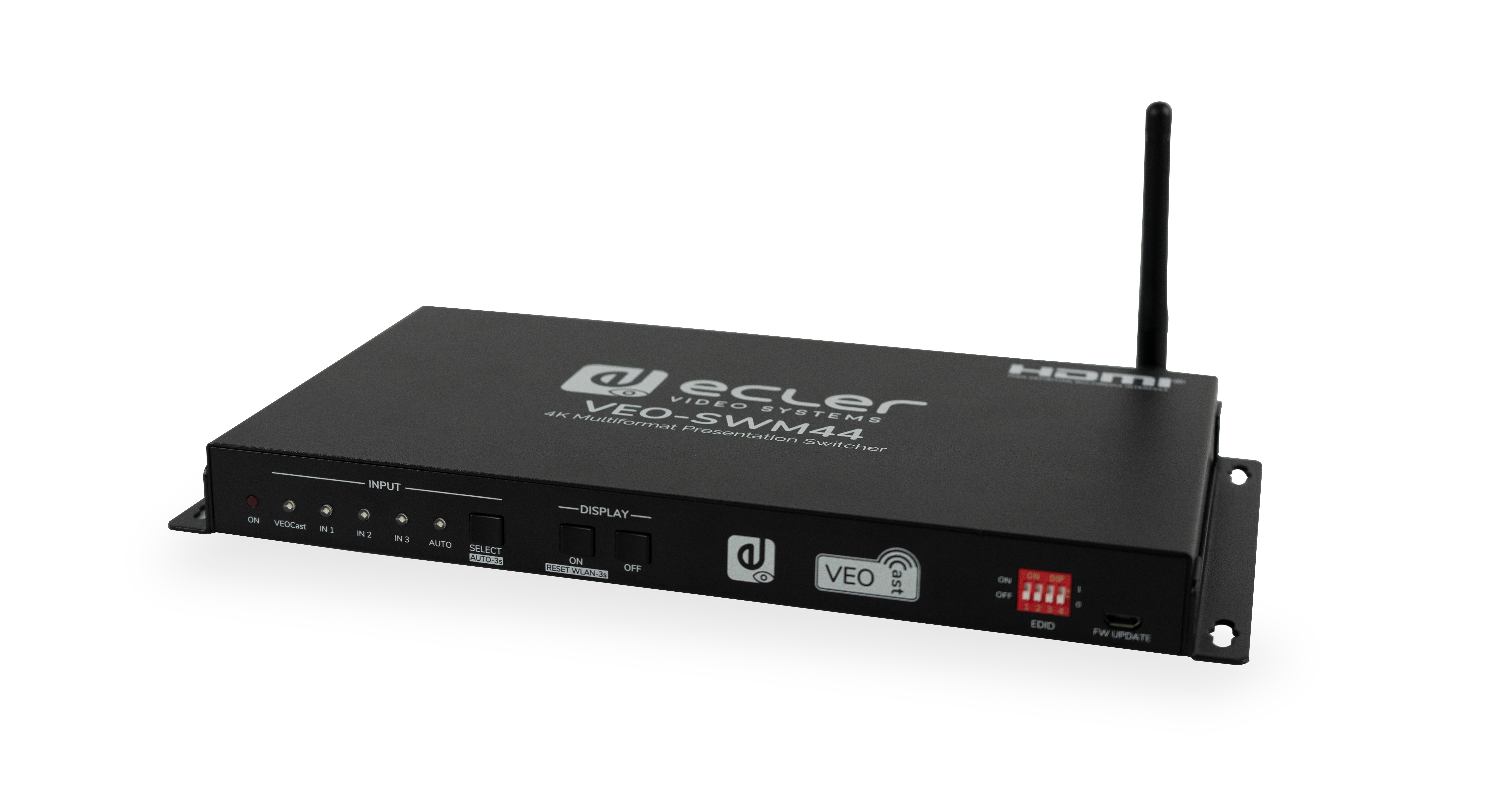

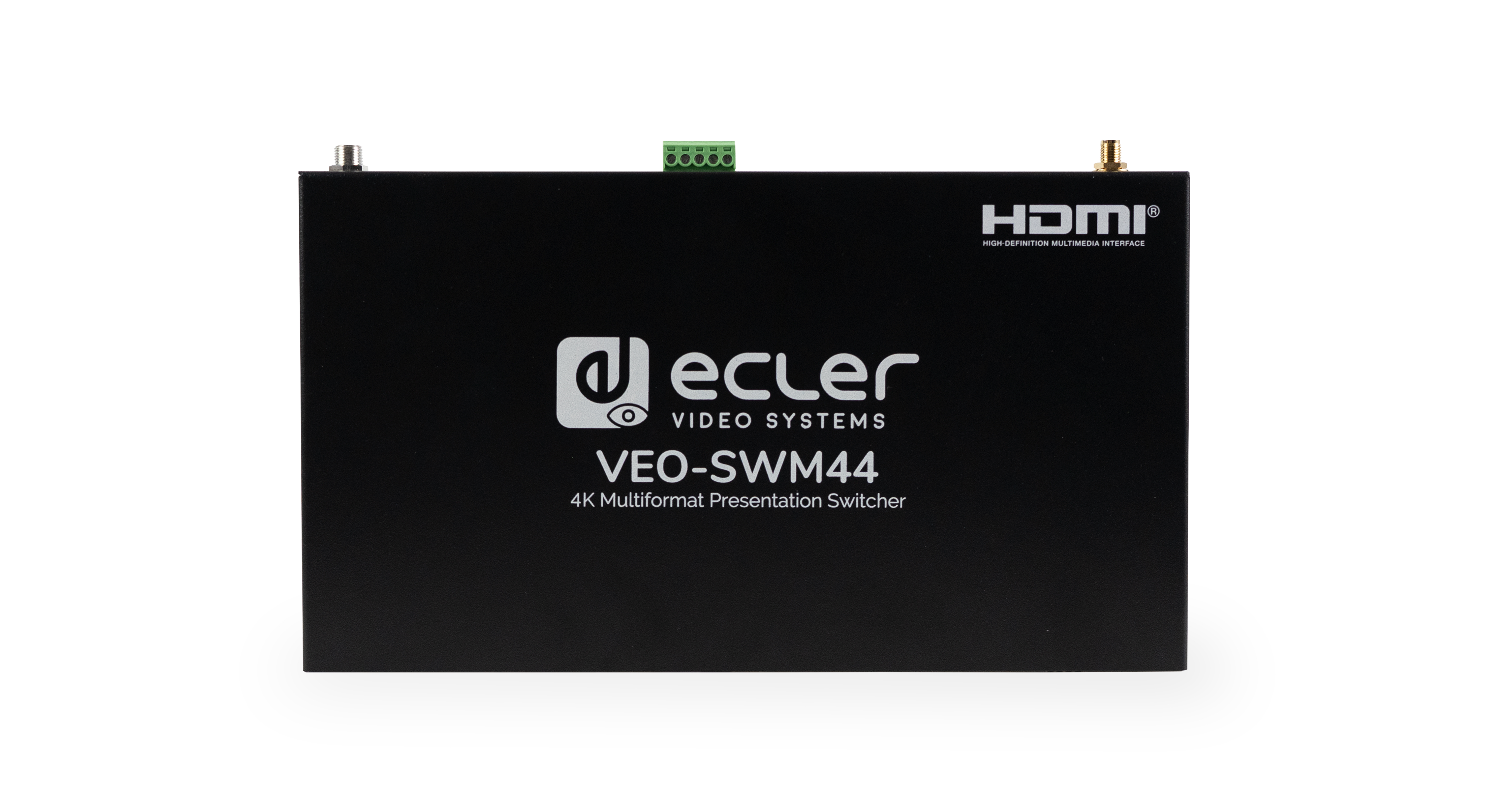

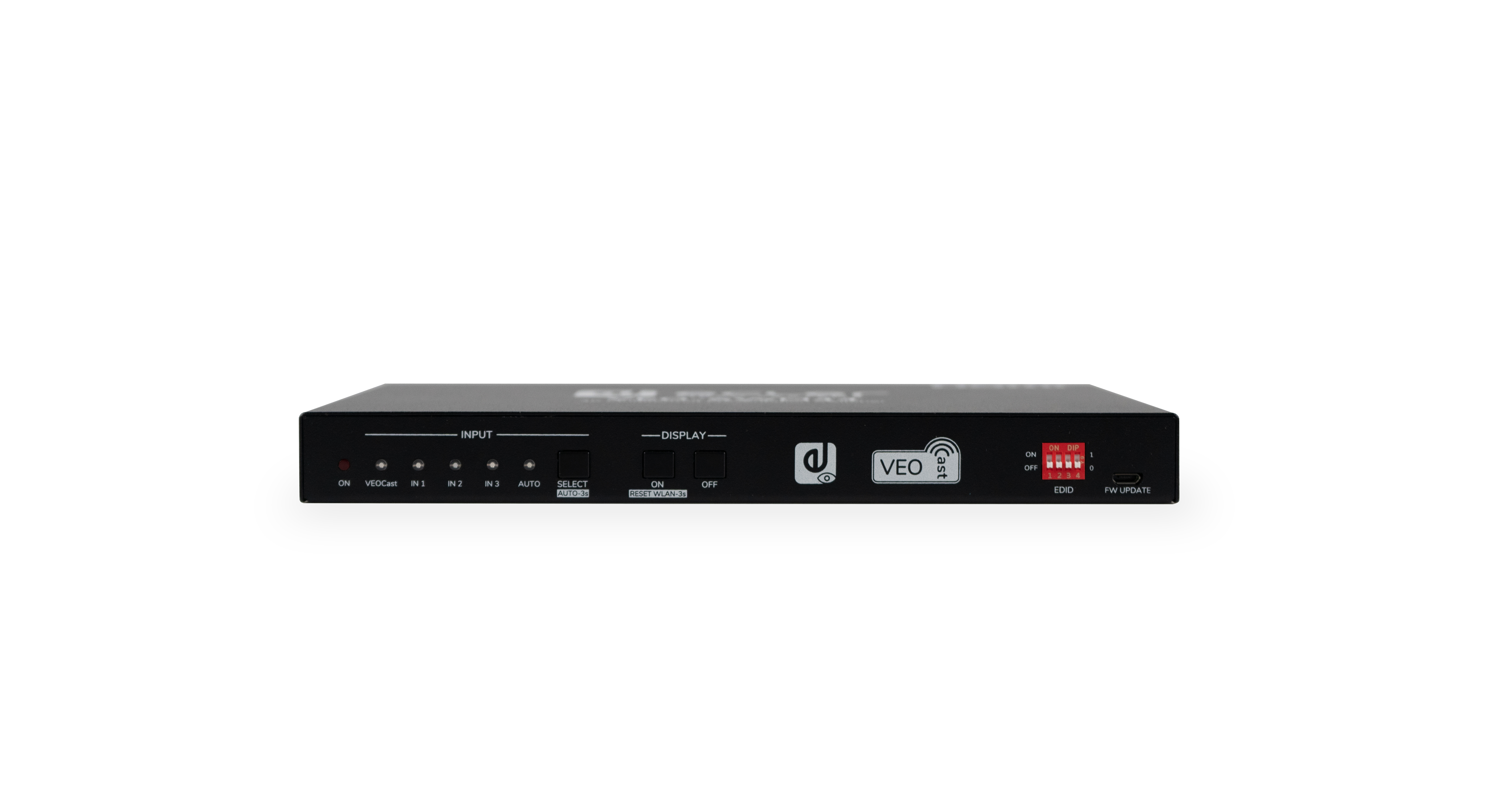

VEO-SWM44Image 1


VEO-SWM44 is a compact 4K presentation switcher that includes 2 HDMI 2.0, a USB-C and wireless input selection via VEOCast to a single HDMI 2.0 output, supporting resolutions up to 4K/60Hz 4:4:4 HDR10 and Dolby Vision. An integrated audio de-embedder provides stereo analogue balanced outputs on Euroblock connectors. VEO-SWM44 includes 2 USB 3.0 type B and 2 USB 3.0 type A in order to support soft codec applications and external devices like webcam and KVM kits. Input selection is available via Auto-switching function, front panel buttons or RS-232. Display control via front panel buttons through CEC or RS-232. Smart EDID management and HDCP 2.2 support.

  • Ultra High Definition source selector with presentation features and integrated scaler
  • Three HDMI 2.0 Inputs, one VGA (YPbPr/CVBS) and one DisplayPort video input
  • Five Unbalanced Stereo and one Balanced Microphone/Line Inputs with 48V phantom power
  • Digital input video resolutions up to 4Kx2K (4096x2160@60Hz YUV 4:4:4)
  • VGA resolution up to 1920x1200@60Hz
  • Output resolutions up to 4096x2160@30Hz
  • Mirrored HDBaseT output for extension up to 70m
  • HDBaseT Receiver included
  • HDCP 2.2 Compliant
  • Supports automatic and manual switching options

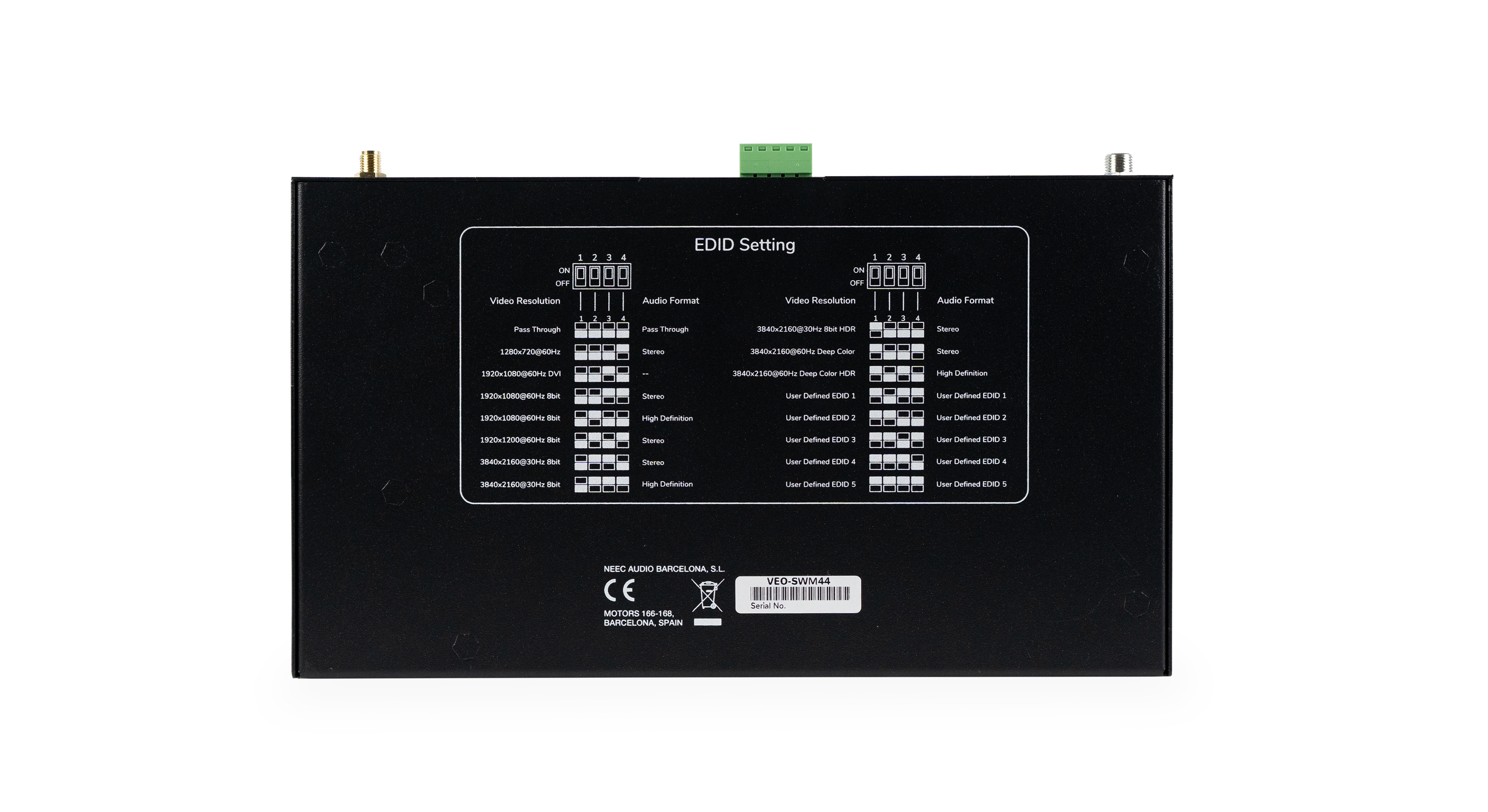

  • Supports EDID management
  • Supports PCM stereo pass-through
  • Touch Panel buttons, Embedded Web GUI, IR Remote, Logic contacts, RS-232 control and TCP/IP control (EclerNet Manager and third party remote control compatible)

Applications

Education   Corporate
