VEO-SPS48

4K 18Gbps HDMI® 1x8 Splitter with Cat Extension

Splitters | Reference: CVEOSPS48

Download image

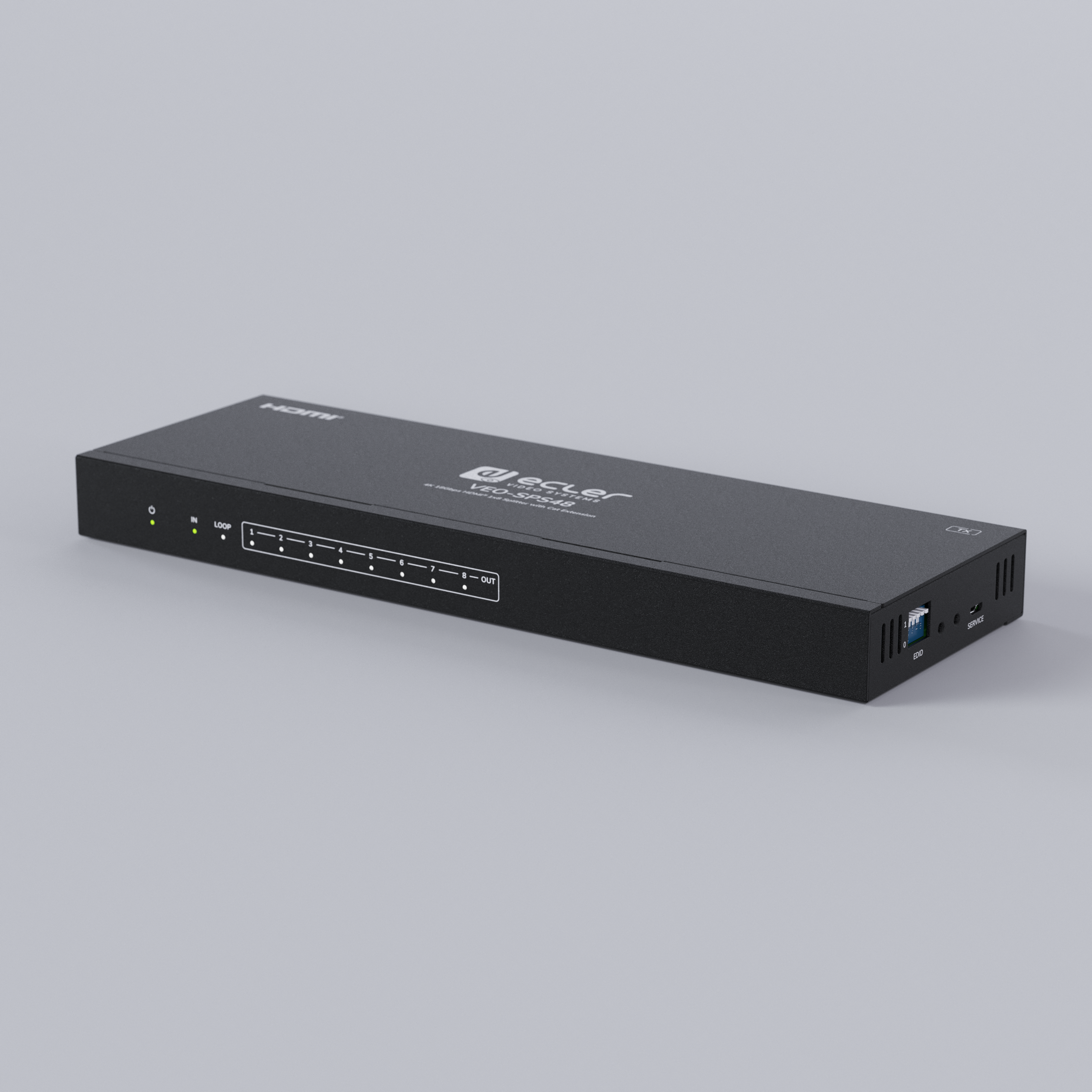

VEO-SPS48 is an 18Gbps HDMI® 1×8 splitter that allows an HDMI® source signal to be distributed and extended to eight remote displays, supporting up to 4K 60Hz 4:4:4 video signals. It includes an HDMI® loop output and eight main single Cat outputs, allowing for transmission distances of up to 35 meters for 4K/60Hz, 50 meters for 4K/30Hz, or 70 meters for Full HD over a single Cat 5e or higher cable. In addition, it supports one-way IR control signal pass-through, stereo unbalanced audio extraction on Euroblock connector, EDID management, and RS-232 serial control, making it a reliable and versatile solution for professional video distribution applications.

Signal distribution and extension over a single Cat 5e or higher cable.
Support for HDMI® 18Gbps 4K 60Hz 4:4:4 as specified in HDMI® 2.0b.
Transmission distance for 4K/60Hz up to 35 meters, 4K/30Hz up to 50m and 1080p /60Hz up to 70m.
Stereo unbalanced audio extraction via Euroblock connectors.

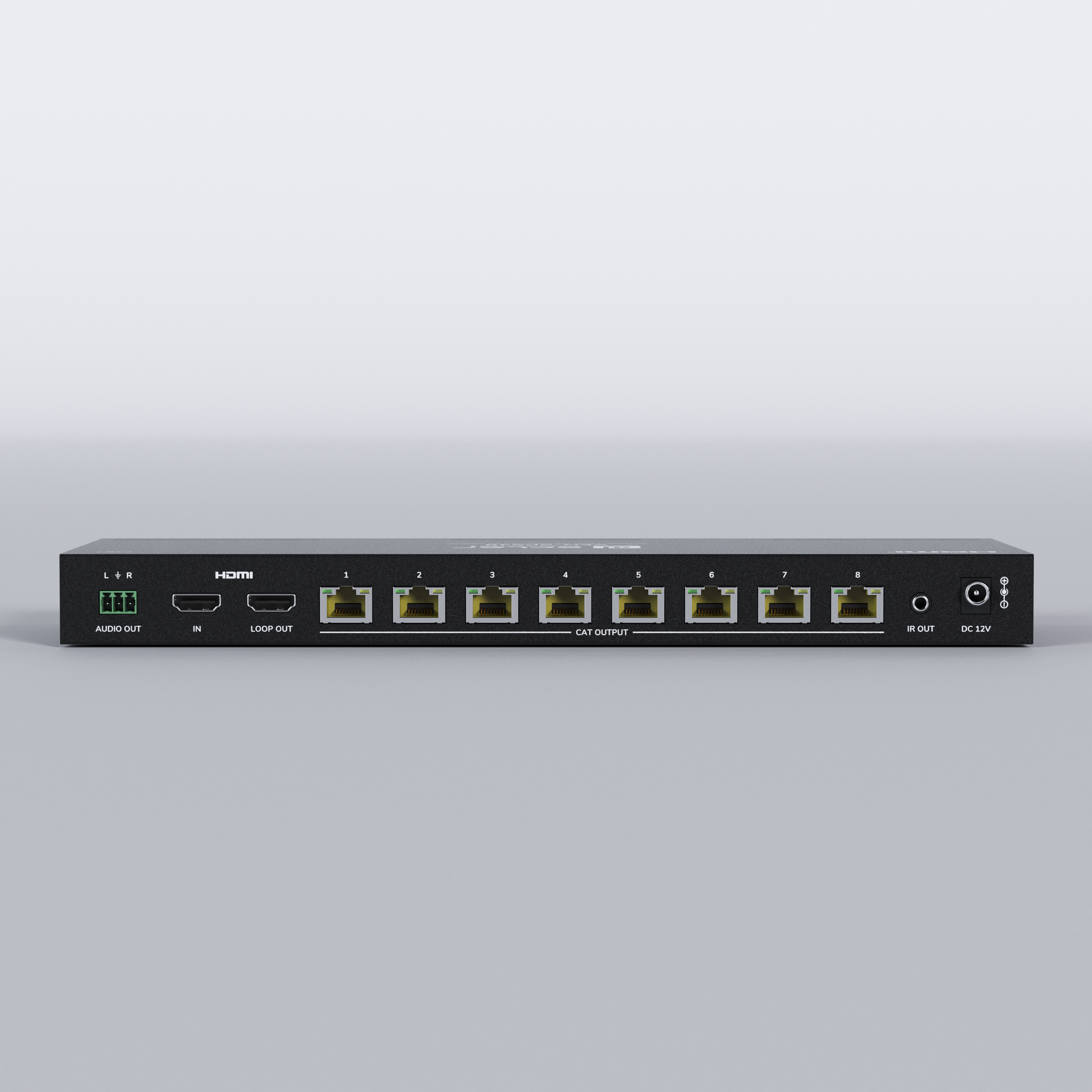

Includes an HDMI® Loop Out and eight RJ-45 extension outputs.
Support for HDR10, HDR10+, Dolby Vision, and HLG video signals.
Support for audio formats LPCM 2.0, LPCM 2.0, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD.
EDID Management.
HDCP 2.2 compliant.
IR control extension.
Support for RS-232 remote control.
PoC function for the included receivers.

Applications

Retail Corporate Sports & Wellness Hospitality

VIDEO PERFOMANCES

Video Input Connectors

1 x HDMI® Type A Female, 2.0, 18Gbps

Video Output Connectors

1 x HDMI® Type A Female, 2.0, 18Gbps;
8 x RJ-45 Female

Video Input Resolutions

480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 4K up to 60Hz

Video Output Resolutions

HDMI® OUT on VEO-SPS4 RX & HDMI® Loop Out: 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 4K up to 60Hz

Chroma Subsampling

4:4:4，4:2:2，4:2:0

Colour Depth

8-bit (4K 60Hz 4:4:4), 10-bit / 12-bit (4K 60Hz 4:2:2 – 4:2:0)

Colour Space

RGB, YCbCr, YUV

HDCP

2.2 / 1.4

HDR

HLG，HDR 10， HDR10+，Dolby vision

Scaling Features

HDMI® Distance

Up to 4K/60Hz: 5m with IN/OUT HDMI® Cable
Up to 1080p/60Hz, 4K/30Hz: 10m with IN/OUT HDMI® Cable

AUDIO PERFORMANCES

Audio Output Connectors

1 x 3-pin unbalanced Euroblock

Audio Formats

LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X

Sample Rate

48KHz, 96KHz, 192KHz

Bit Depth

Up to 24-bit

Frequency Response

20Hz-20KHz (±3dB)

DEVICE CONTROL

Control Conectors

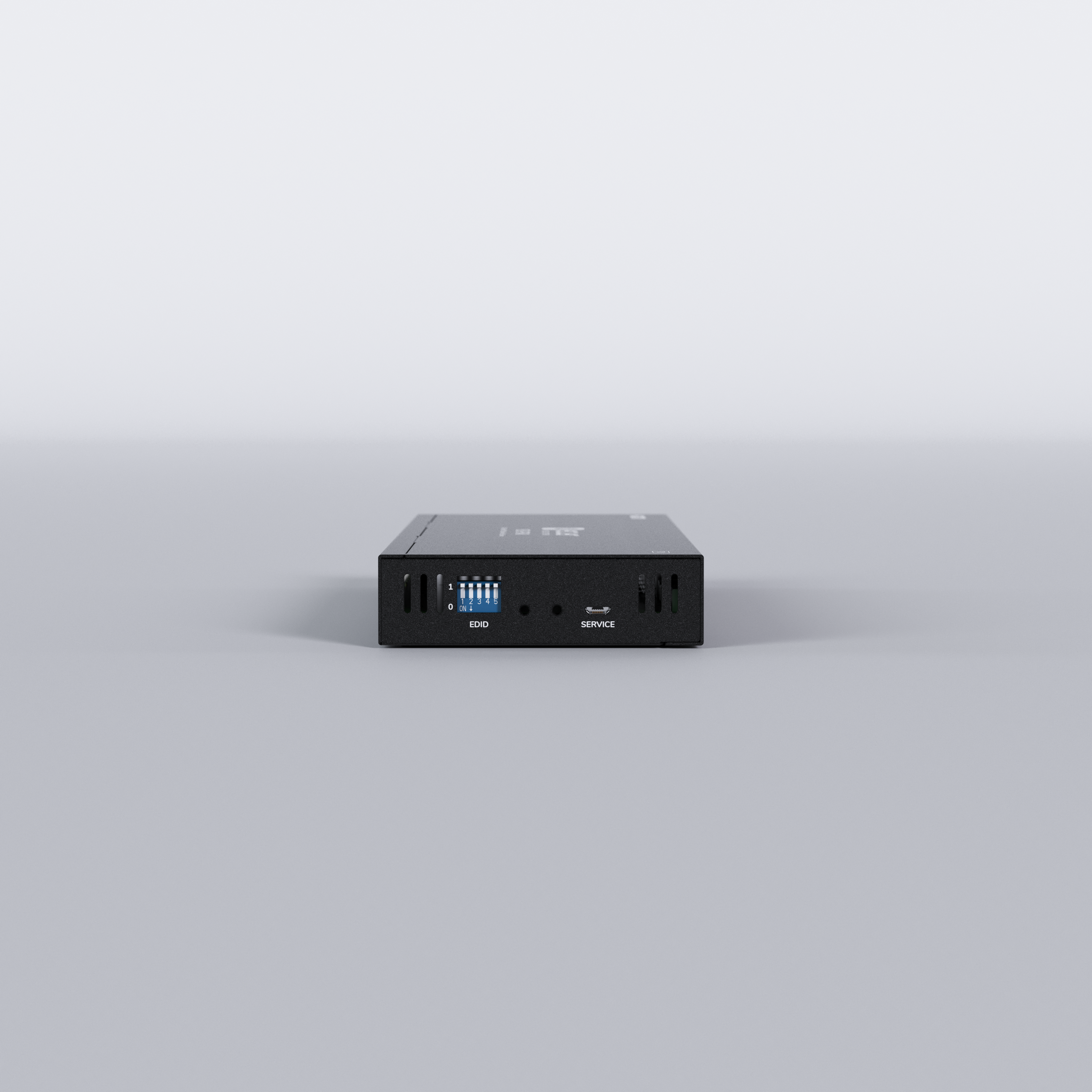

1 x Micro USB Type B, 1 x DIP Switch

Control Protocols

RS-232

EDID Management

EDID Copy, Internal EDID Options

Status Indicators

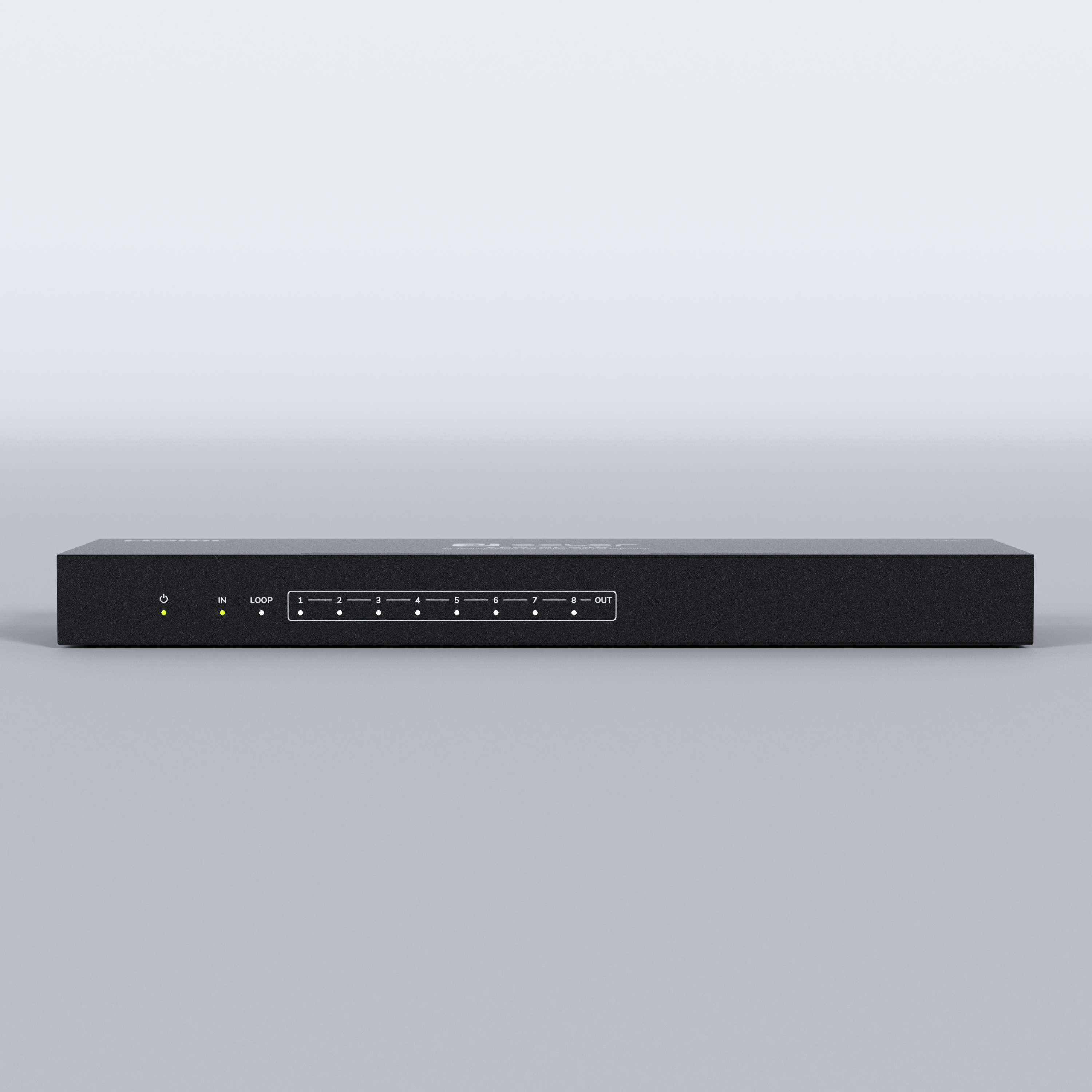

Power LED, Link Status LED

PASS-THROUGH CONTROL

Pass-through Connectors

1 x IR Jack 3,5mm

Pass-through Protocols

ELECTRICAL

Power supply

External: Input 100-240VAC 50-60Hz 0.3A, Output 12VDC-2.5A

AC mains connector

External PSU. Included 4 region power blades (UK,US,AU,EU)

DC mains connector

DC Locking

Power consumption

25.44W

PHYSICAL

Operating temperature

Min: 0°C ; 32°F
Max: 40°C ; 104°F

Operating humidity

20% to 90% HR, non-condensing

Storage temperature

Min: -20°C; -4°F
Max: 60°C; 140°F

Storage humidity

40% to 60% HR, non-condensing

Included accessories

8 x VEO-SPS4 Receiver, 8 x IR Receiver cable (1.5 meters),1 x IR Blaster cable (1.5 meters), 1 x 3-pin 3.5mm Euroblock connector, 16 x Mounting ears (Receiver), 2 x Mounting ears (Splitter), 36 x Mounting screw, 1 x PSU 12V/2.5A

Dimensions

- VEO-SPS48 (Splitter TX): 300 x 28 x 100 mm / 11.81 x 1.1 x 3.94 in. (WxHxD)
- VEO-SPS4 (Receiver RX): 88 x 18 x 61 mm / 3.46 x 0.71 x 2.4 in. (WxHxD)

Weight

- VEO-SPS48 (Splitter TX): 0.823 Kg / 1.81 lb
- VEO-SPS4 (Receiver RX): 0.155 Kg / 0.34 lb

Shipping dimensions

412 x 88 x 317 mm / 16.22 x 3.46 x 12.48 in. (WxHxD)

Shipping weight

3.10 kg / 6.83 lb

Chassis material

Metal

Finished colour

Black

CONNECTION SPECIFICATION

HDMI® extension

Point-to-Point extension with zero latency

Transmission Distance

4K/60Hz up to 35m with Cat 5e or higher (600Mhz)
4K/30Hz up to 50m with Cat 5e or higher (300Mhz)
1080p/60Hz up to 70m with Cat 5e or higher (148,5Mhz)
