Video Input Connectors
Video Output Connectors
Video Input Resolutions
Video Output Resolutions
5m with Ecler VEO Cables (up to 4K)
HDMI 2.0 8x8 18Gbps Matrix with Audio De-Embedders and Display
Switchers And Matrixes | Reference: CVEOMXH88D

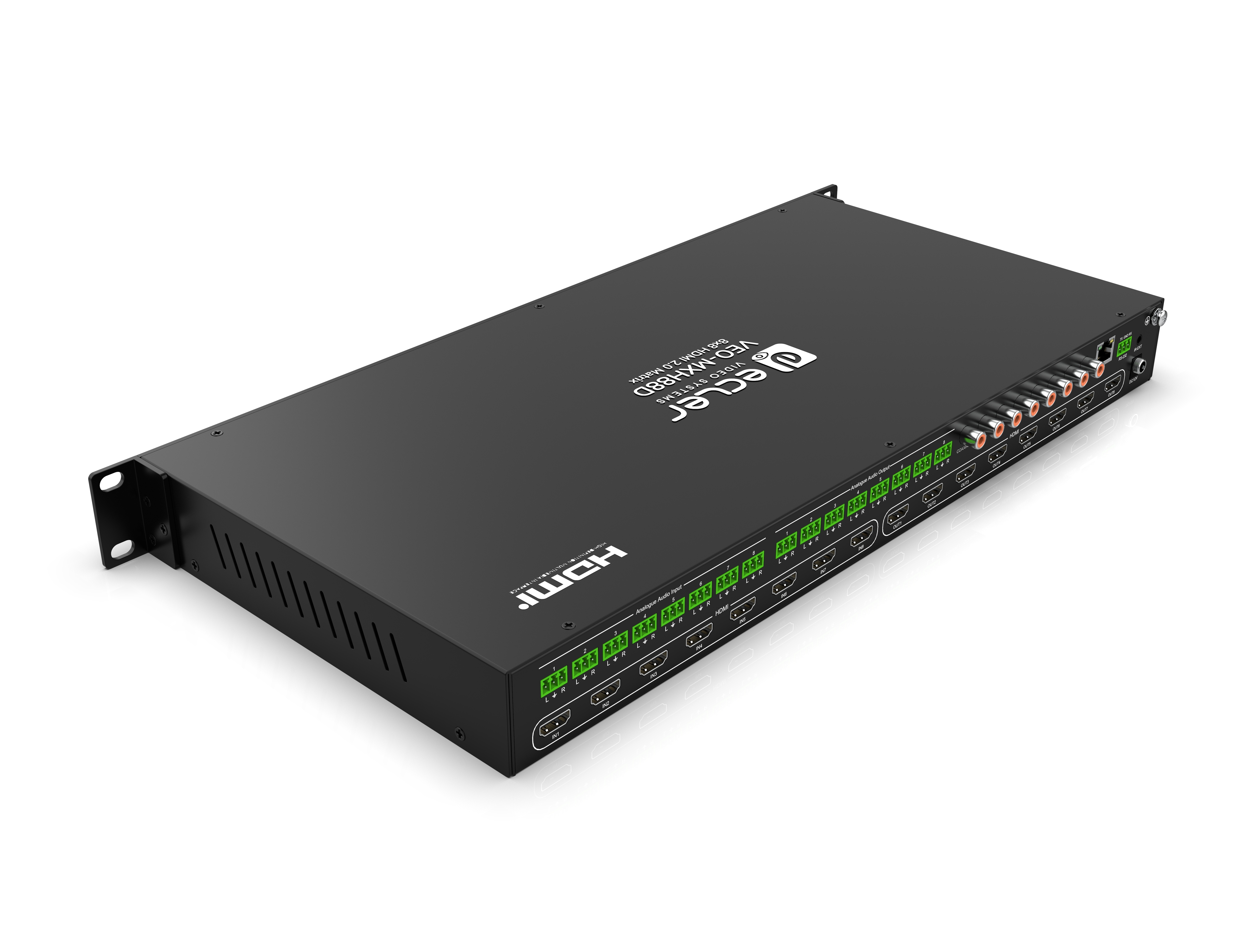

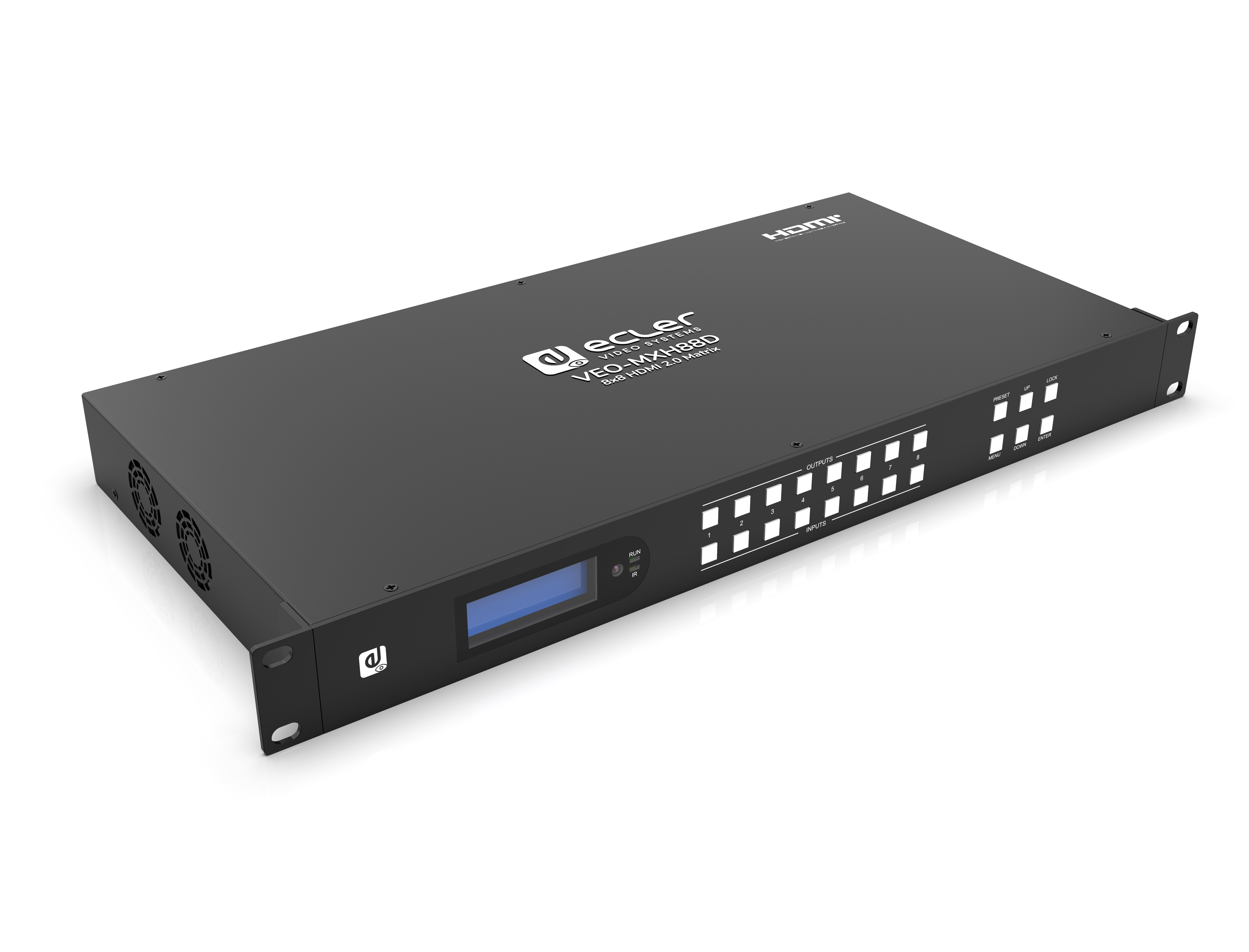

VEO-MXH88D is an 8x8 HDMI 2.0 matrix designed to handle high-quality video and audio signals. It supports up to 4K/UHD video resolution at 60 Hz with 4:4:4 chroma sampling. VEO-MXH88D offers 8 analogue audio inputs and 16 analogue and digital audio de-embedding outputs, allowing for flexible audio management. The device features EDID management, which ensures optimal compatibility between connected devices, an LCD display and an integrated WebGUI, providing a user-friendly interface for configuration and control of the unit as well as, multiple other options for addressing HDMI sources, including the frontal panel's selection buttons, serial commands, TCP/IP, and IR (infrared) control. The VEO-MXH88D is compliant with HDCP 2.2 and 1.4. This makes it suitable for professional applications that require secure handling of video and audio signals. Furthermore, supports for up to 8 presets allows for quick and convenient recall of specific configurations.
