HDMI 2.0 audio Extractor

Audio Management Devices | Reference: CVEOAXS4P

VEO-AXS4PImage 1

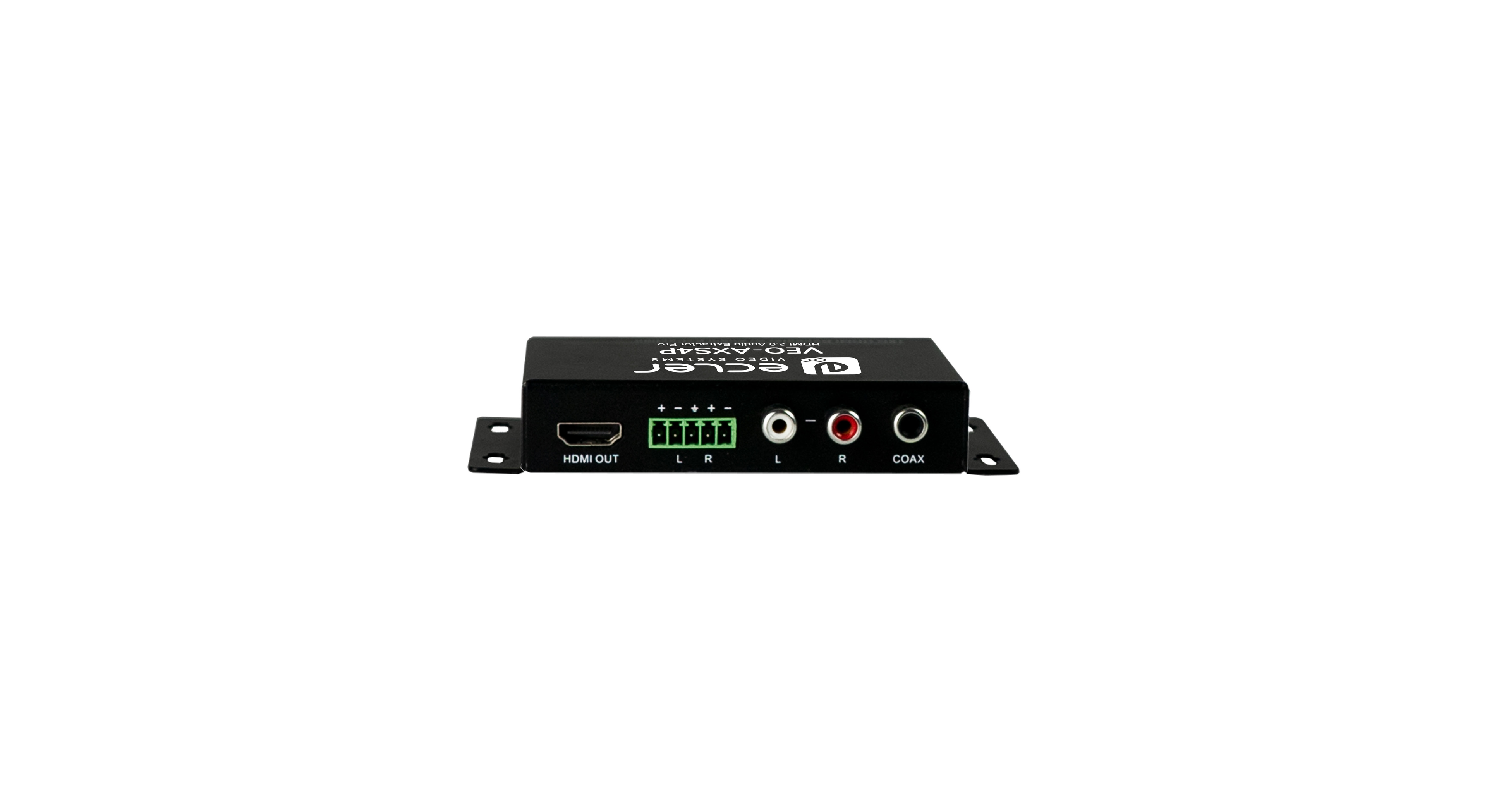

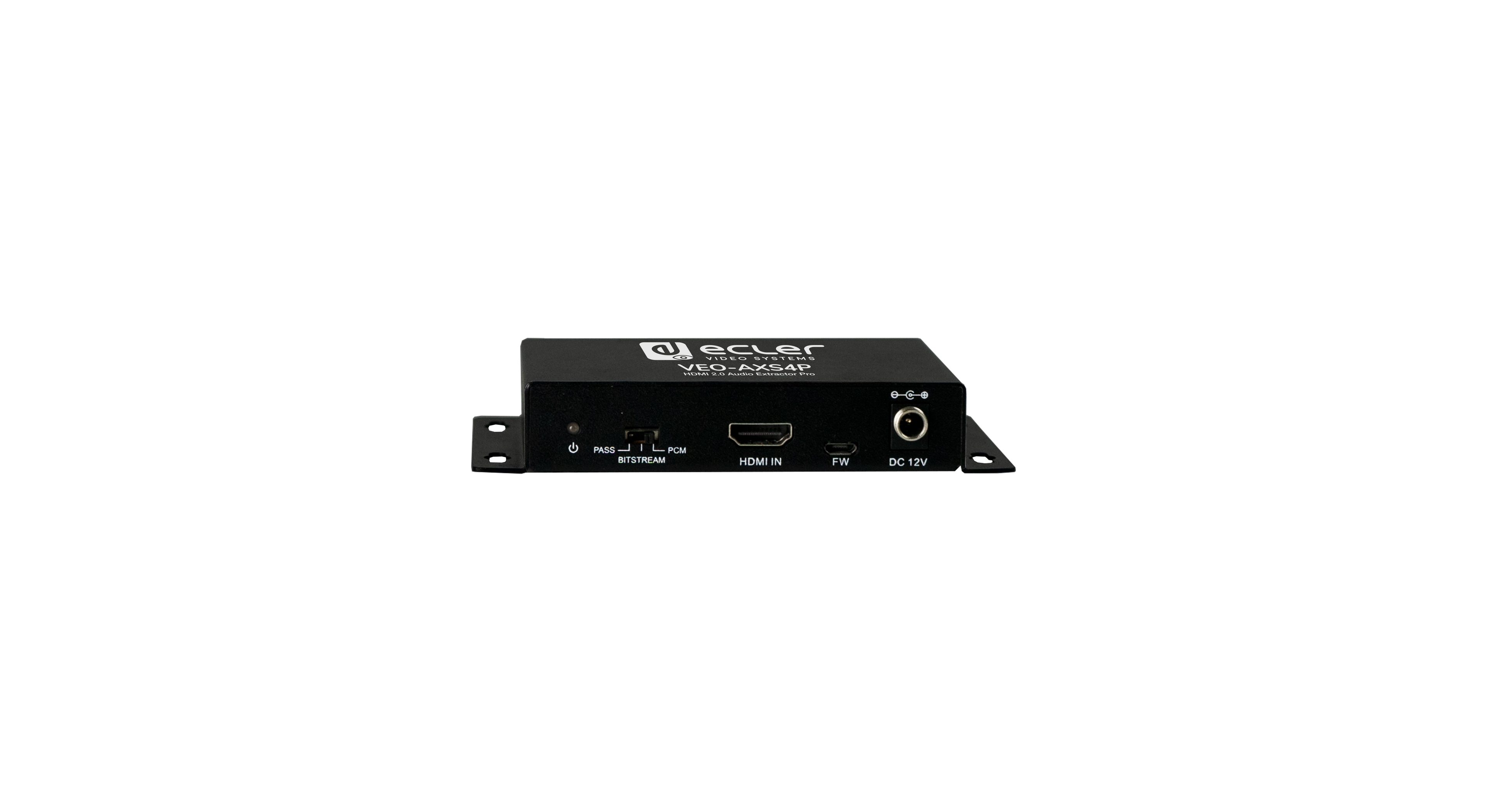

VEO-AXS4P is a professional HDMI audio extractor that allows to de-embed audio from a HDMI signal, including audio from 4K sources. VEO-AXS4P provides uncompressed LPCM analogue stereo signal through RCA and Phoenix balanced output as well as Dolby Digital and DTS multichannel signals through the coaxial S/PDIF digital output.

  • Audio EDID Settings: Auto/2.0 CH/5.1CH
  • Extracts the digital HDMI audio signal from the HDMI input to 2channel analog stereo output or to 5.1 S/PDIF output
  • Signal amplification and equalization to extend HDMI inputand output ports up to 10 meters (33 feet)
  • Supports LPCM, Dolby Digital and DTS
  • Supports resolution up to 4K @ 60Hz YUV 4:4:4
  • Supports deep color up to 36bit
  • Supports sample rate up to 192 KHz and resolutions up to 24 bit
  • HDCP2.2/1.4 Compliant
  • Supports CEC
