TOCA-CTRL1

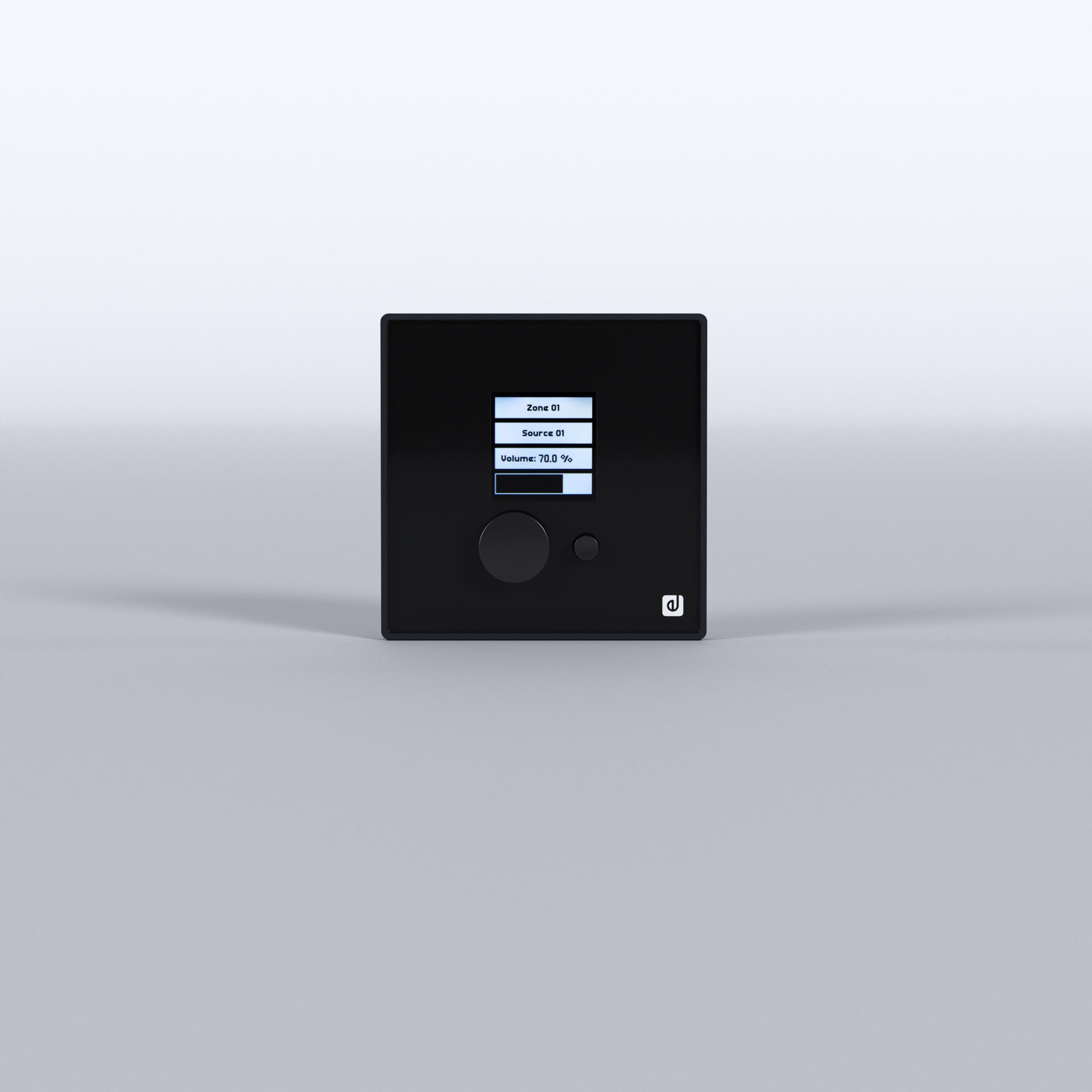

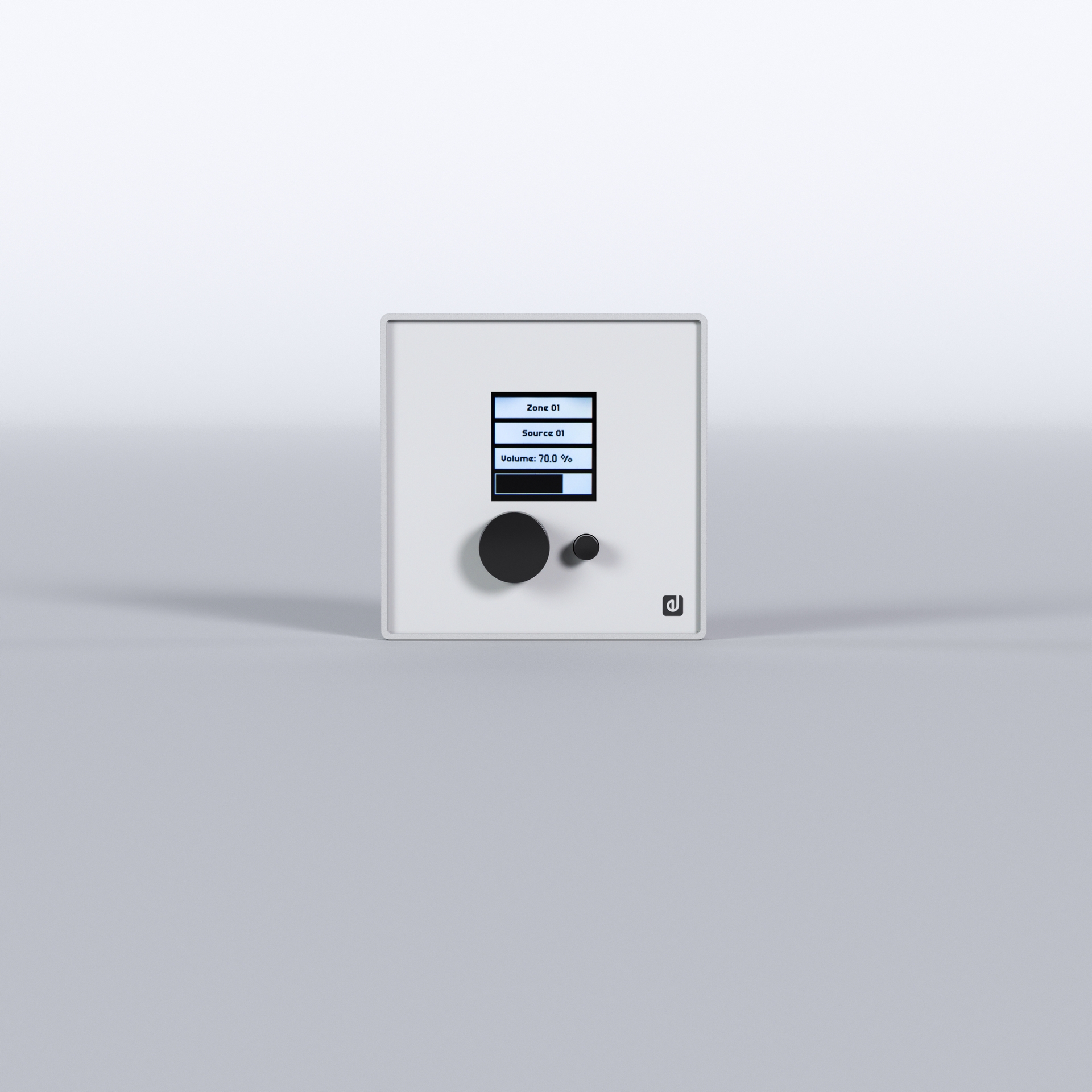

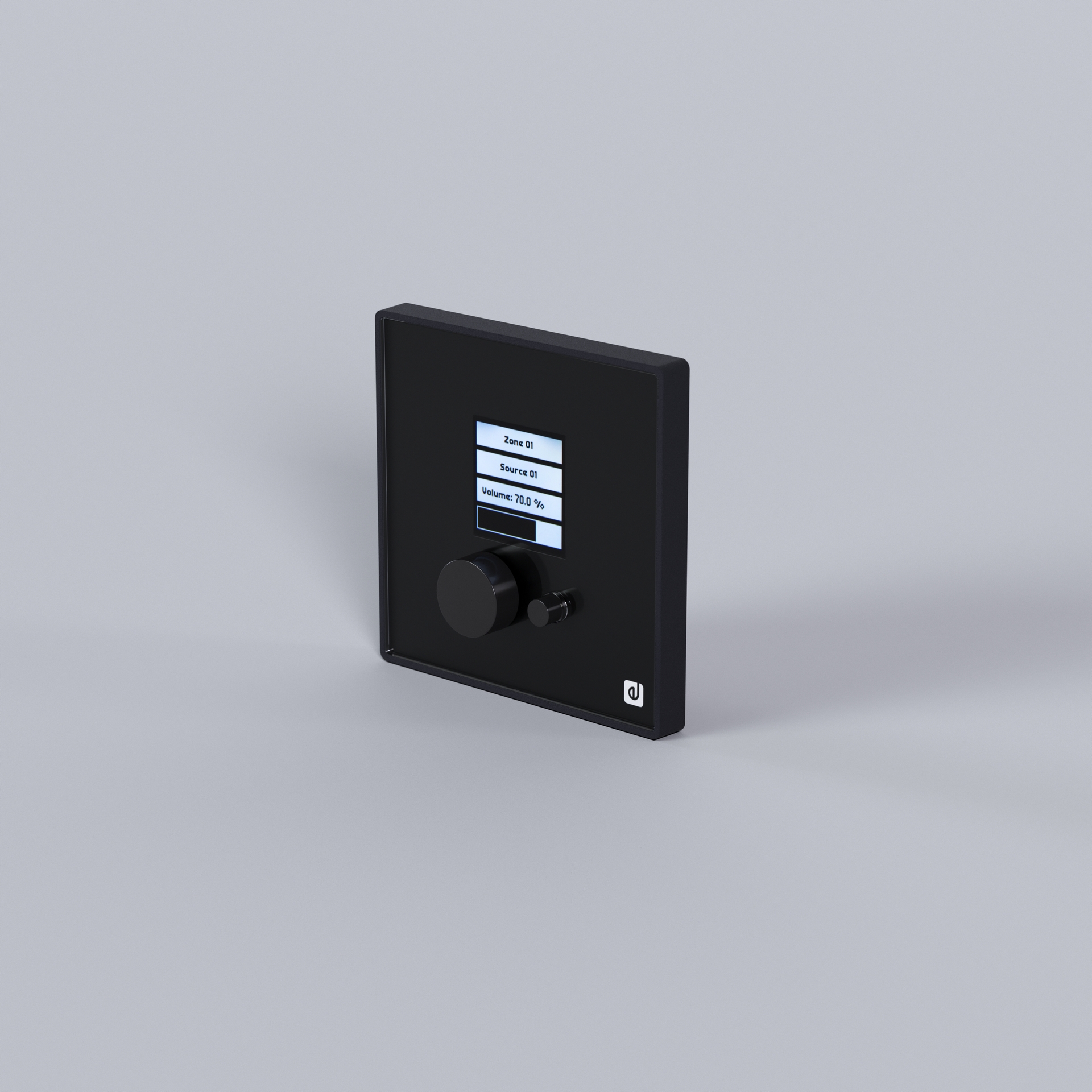

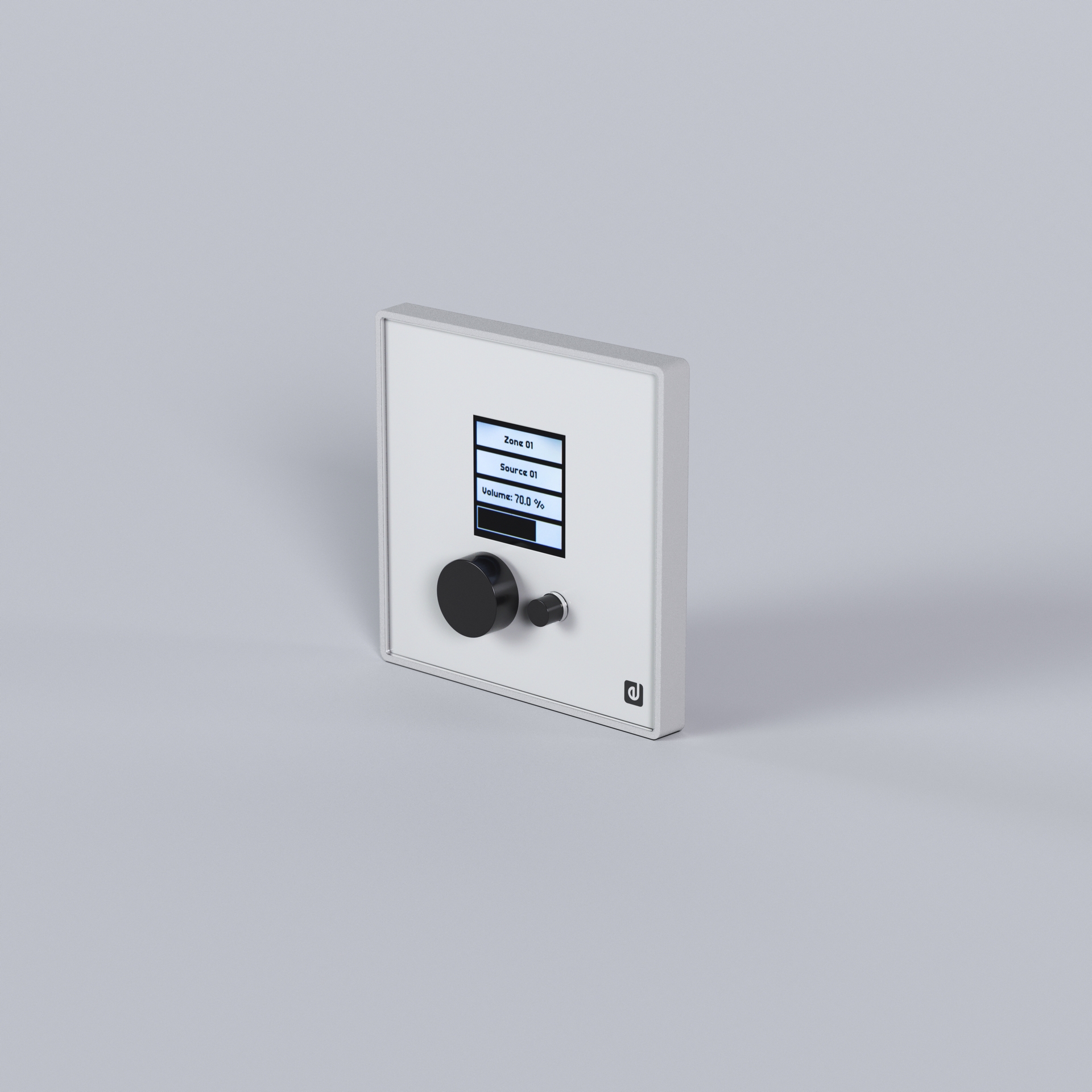

TOCA-CTRL1 is a digital wall control compatible with HUB Series and configurable through the web application embedded. It allows you to configure source selection, volume control and equalization for a given zone, including all or some of the functions. Can be combined with a TOCA series wall panel, connecting both with a single CAT5 cable or higher to the HUB digital zoner, transmitting the mono and balanced audio signal (line level) along with the necessary control data and DC power supply.

• Digital wall control panel compatible with HUB Series digital zoners.
• Volume adjustment, source selection and EQ (programmable).
• Compatible with TOCA Series panels with audio connector, for sending audio, control signals and DC supply over a single CAT5 or higher cable.
• Can be combined with a TOCA-MIXT to work as a remote audio input for HUB Series digital zoner.
• Optional external PSU (24VDC). Compatible with Ecler WP24-PSU power supply unit.
• Compatibility with standard flush-mounted boxes.
• High‑quality acrylic surface.
• Available in white (RAL 9003) or black (RAL9005).
• Optional double frame for installing two TOCA Series units side by side. Available in black (TOCA-2FRBK) or white (TOCA-2FRWH).

Applications

Retail   Education   Corporate   Sports & Wellness   Hospitality
