MPAGE4: 4-zone | desktop | paging station. Paging Stations.

MPAGE4

4-zone | desktop | paging station

Paging Stations | Reference: CMPAGE4

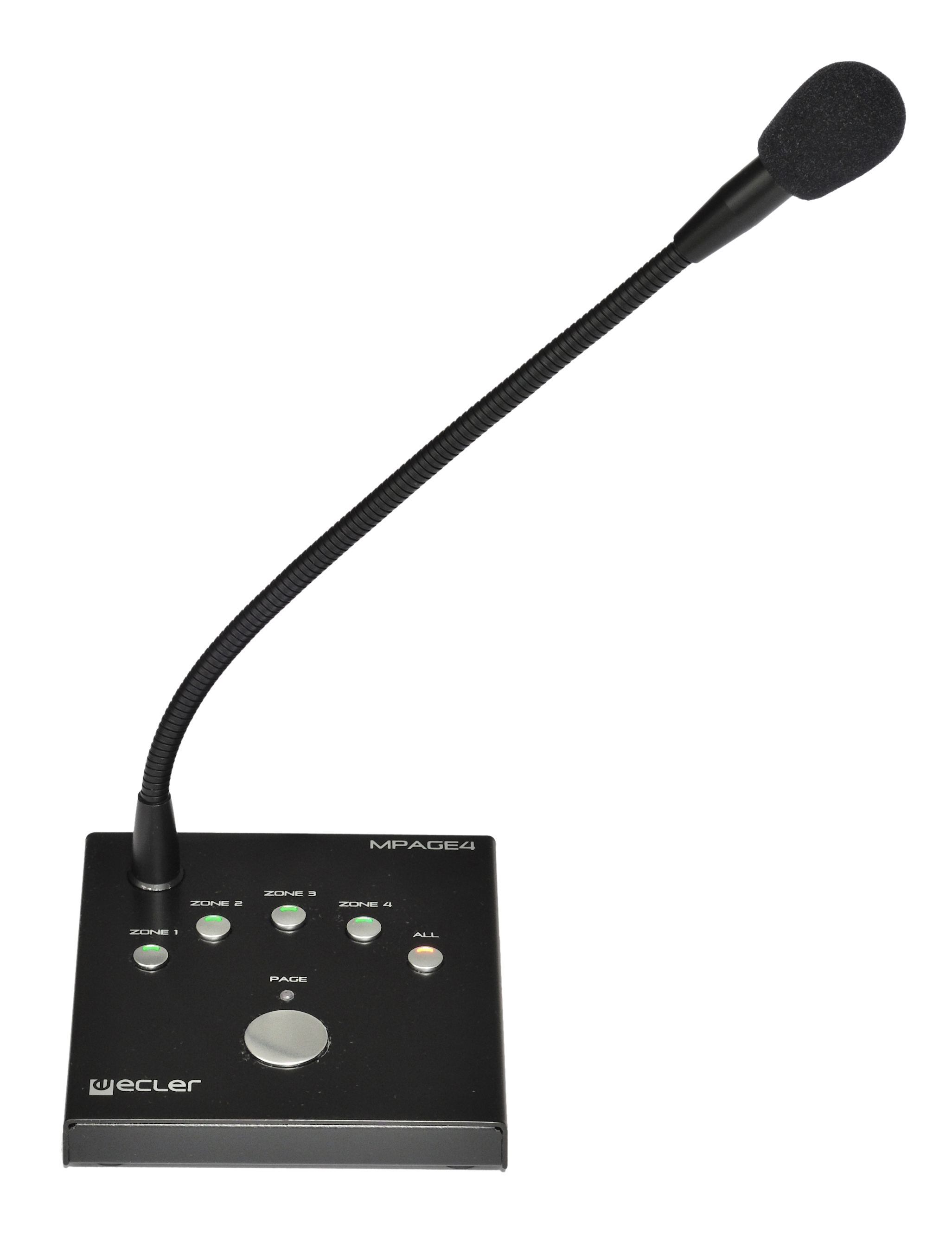

MPAGE4 is a 4-zone desktop paging station compatible with DAM614, CA series, etc. It allows for real-time paging with zones' destination selection.

4 zone selection keys
SELECT ALL, and PAGE keys
Selectable chime melody
Gooseneck microphone

Applications

Retail Corporate Hospitality

SYSTEM

Number of paging zones

MIC INPUTS

Microphone type

Non-removable gooseneck condenser microphone

Polar pattern

Cardioid

Frequency response

50Hz – 18KHz (-10dB)

Phantom power

+6 to 15V, 40mA

LINE OUTPUTS

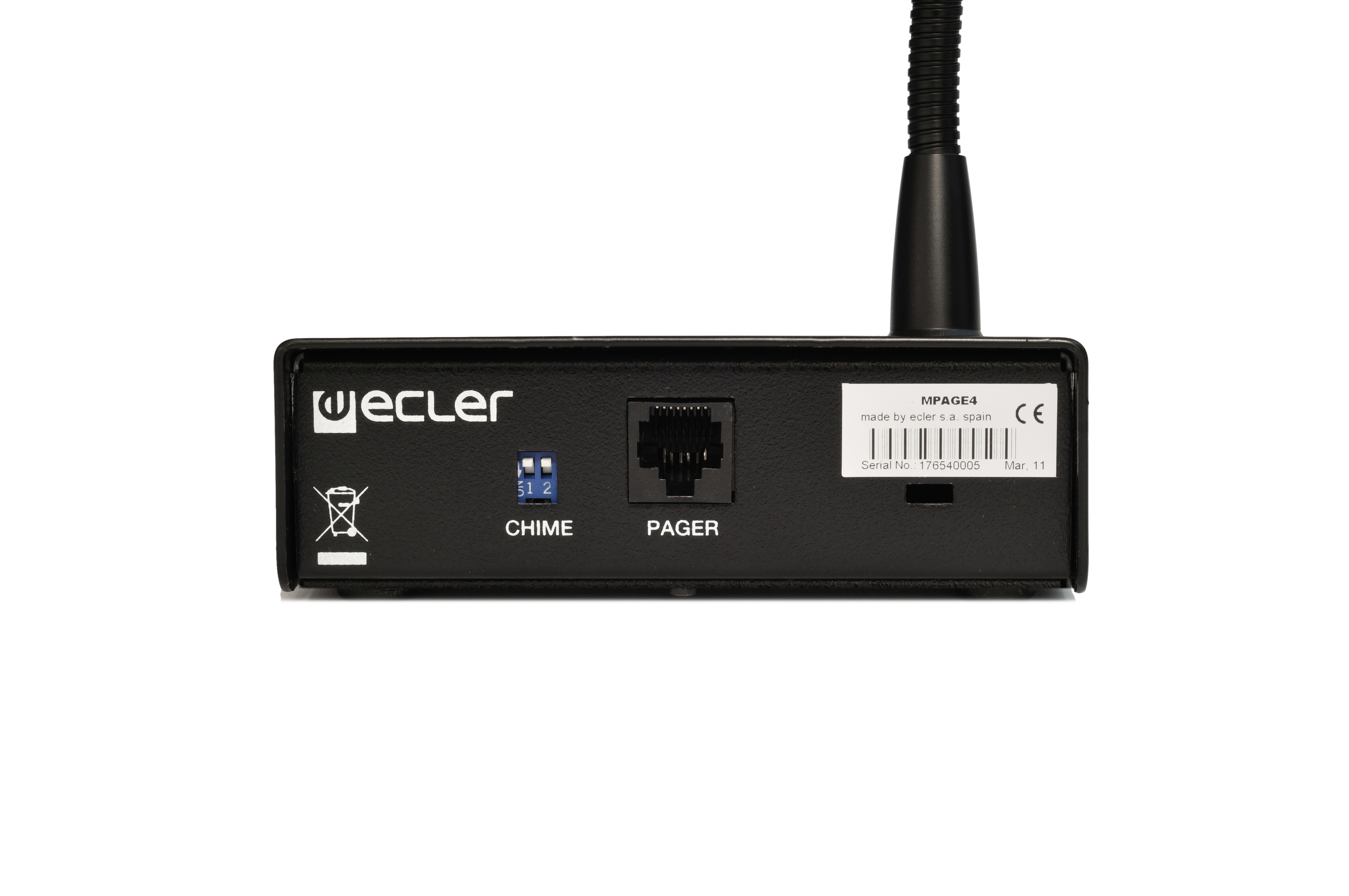

Output connection type

RJ45 (pager)

Max output level

0dBV @ 104dB SPL ±7dB (internal adj.)

MONITORING AND CONTROL

LED indicators

PAGE

Buttons

PAGE, zone, ALL zones

CONNECTIVITY

Ethernet

1 RJ45

ELECTRICAL

Power supply

+6 to 15V

Max power consumption

40mA

PHYSICAL

Type

Desktop paging station

Installation options

Desktop

Operating temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Operating humidity

<85% HR

Storage temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Storage humidity

<90% HR

Included accessories

Windscreen

Dimensions

Microphone excluded: 120 x 43 x 126 mm / 4.72 x 4.96 x 1.69 in. (WxHxD)

Weight

0.625 kg / 1.38 lb

Shipping dimensions

240 x 165 x 190 mm / 9.45 x 6.5 x 7.48 in. (WxHxD)

Shipping weight

1.0 kg / 2.2 lb

Can I use MPAGE4 with MIMO?

No, MPAGE4 is not compatible with MIMO digital matrixes even if you only want to control 4 zones. The protocol it uses is only compatible with DAM614 and CA200z.

How to connect MPAGE4 with DAM614?

Using CAT5 cable connected directly between the two devices. Connection between DAM614 and MPAGE is point-to-point, not through network. That’s why you can’t use switches and any other network device.

What’s the maximum connection length for MPAGE4?

Maximum connection length between REMOTE port of the receiver to MPAGE4 cones can be up to 200m with CAT5e or CAT6 cable. It always depends on the quality of the cable and its connectors.
