Ecler HADA Series of Amplifiers

HADA-4B150

DSP | LoZ and HiZ | 4x125W

Networkable Amplifiers | Reference: CHADA4B150

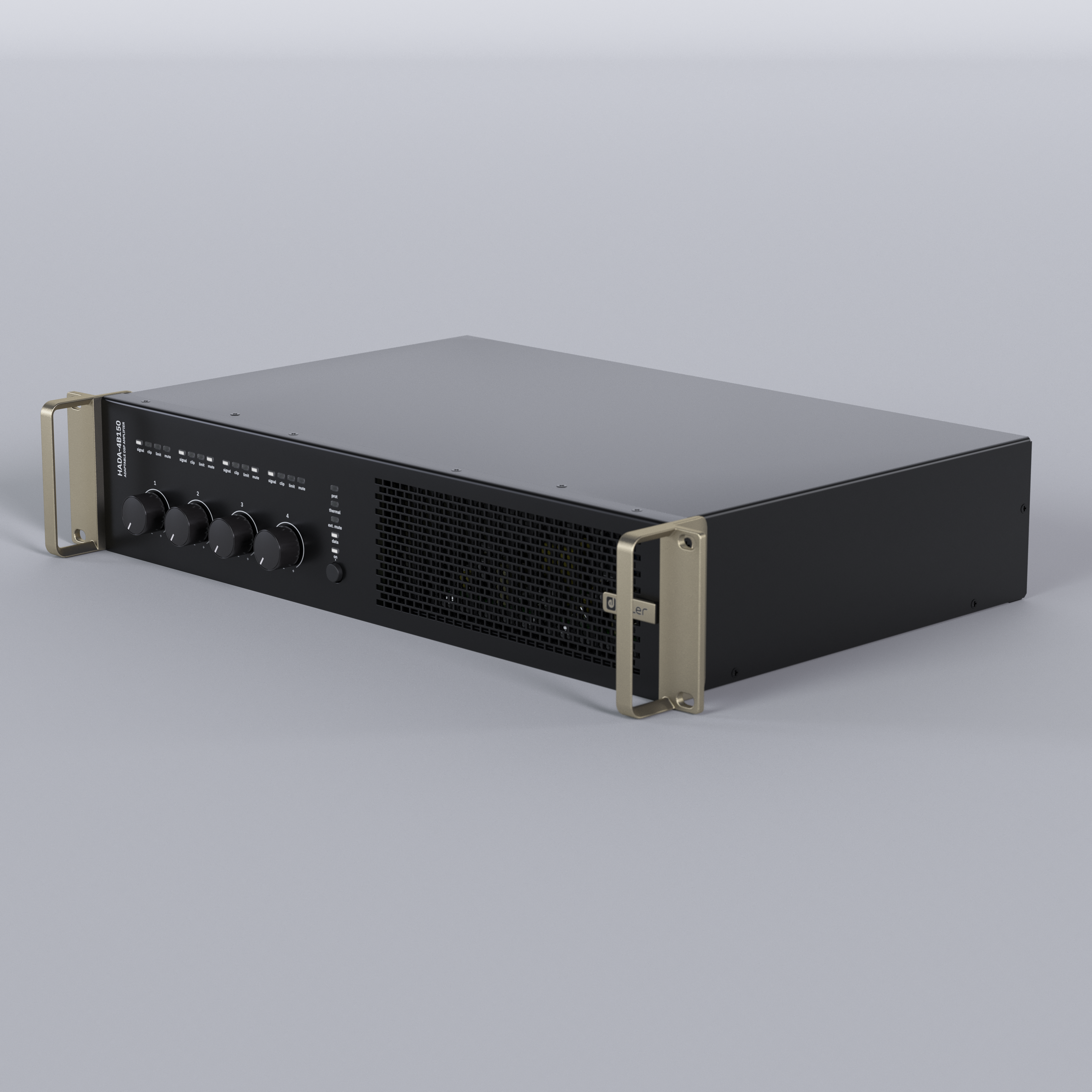

HADA-4B150 is a 4x125W digital amplifier that supports low and high impedance loads. The internal DSP, through the DSP Manager software, allows tailoring the input and output signal through parametric EQs, multi-band compressors, limiters, and delays and each configuration can be saved as a preset. In addition to the software option, input levels can be controlled via the front panel potentiometers, via remote controls using the rear panel GPI, or via a TCP/IP from third party control systems. All HADA series amplifiers include efficient thermal protection, DC protection, over current protection, and HF protection for total reliability in any kind of installation.

4 x 125W outputs @ 4ohms.
2 x 250W @ HiZ (100/70V) in bridge mode.

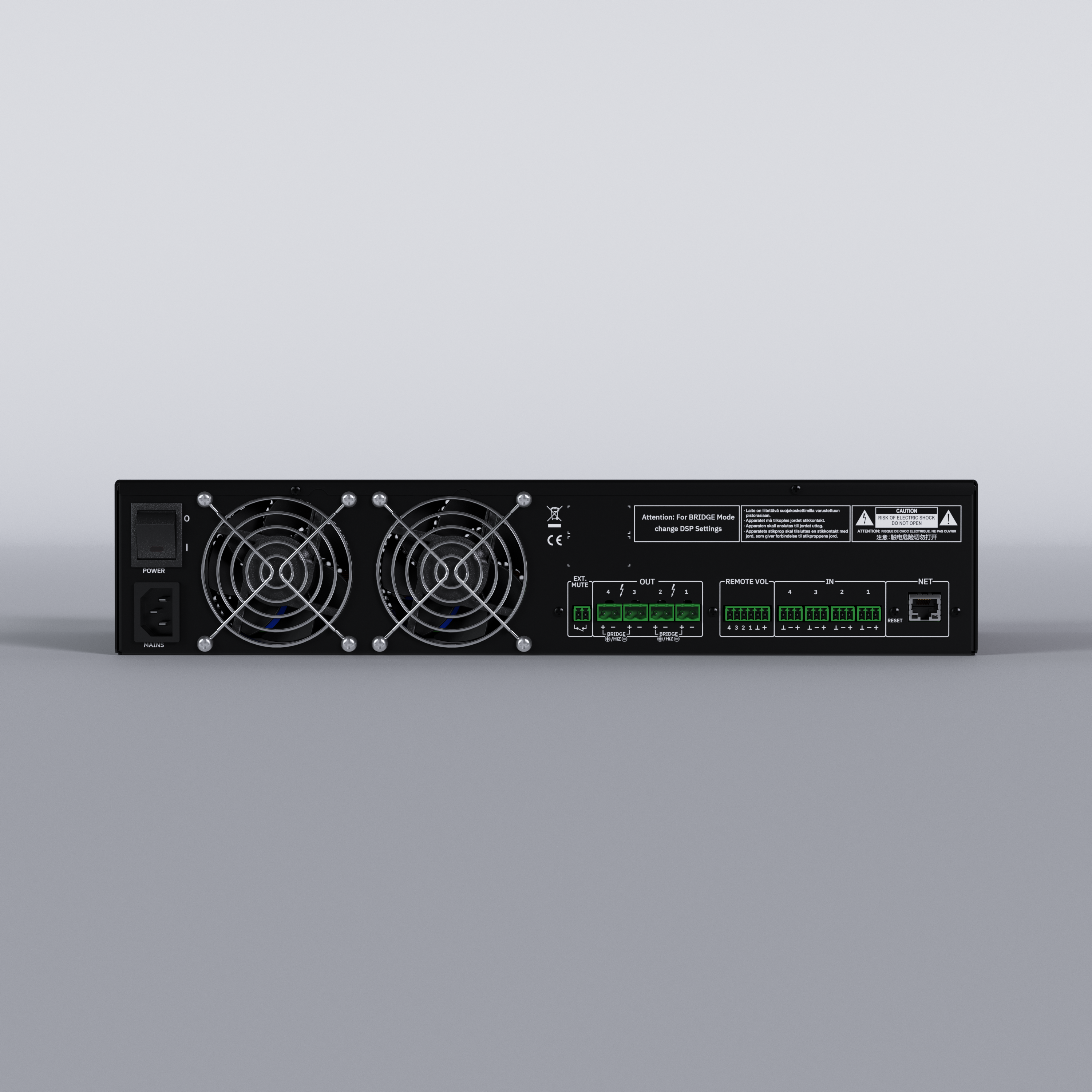

4 analogue inputs on Euroblock connectors.
4 GPI for remote volume control.
1 External Mute.
Internal matrix mixer and signal processing.
HADA DSP Manager software for device configuration and control.
Third party control via TCP/IP

Applications

Education Corporate Leisure Sports & Wellness Hospitality

CHANNELS

Number of output channels

Output connection type

2-pin Euroblock

Output configuration

Lo-Z/Hi-Z, 70V/100V (Bridge mode), 4Ω/8Ω
Output mode selection per channel/couple by software
(Settings by HADA DSP Manager)

Number of input channels

4 analogue input channels

Input connection type

Analogue: IN1-4: 3-pin Euroblock, balanced, pitch 3,5 mm

Input configuration

Digital matrix 4 in x 4 amp. out
(Settings by HADA DSP Manager)

OUTPUT POWER - All channels driven @ 1%THD

Max output power @ 8Ω

125 W (all channels driven @ 1%THD)

Max output power @ 4Ω

125 W (all channels driven @ 1%THD)

Max output power @ 8Ω bridge mode

250 W (all channels driven @ 1%THD)

Max output power @ 100V

250 W (Bridge mode) (all channels driven @ 1%THD)

Max output power @ 70V

250 W (Bridge mode) (all channels driven @ 1%THD)

SIGNAL

Voltage gain

27 to 37 dBV
29,2 to 39,2 dBu

Input sensitivity

-12 to 12 dBV
-9,8 to 14,2 dBu
0,25 to 3,98 Vrms @ Nominal power

Input impedance

21k (balanced)

Max input level

22 dBV
24,2 dBu

Frequency response

20Hz-20kHz (-3dB, 1W any load)

THD + Noise

< 0,01
0.015 Typ
(@ 1kHz, from 0,1W to Full Power)

Crosstalk

>60 dB (@ 1kHz)

ELECTRICAL

Power supply

Universal, SMPS with PFC

AC mains requirement

100-240 V @ 50-60Hz ((±10%)

Power factor correction

> 0,92

AC mains connector

IEC C14 inlet

POWER & HEAT @230VAC - 1/4 POWER, @ 4Ω (all channels driven)

Power

277W (All channels driven)

POWER & HEAT @230VAC - 1/8 POWER, @ 4Ω (all channels driven)

Power

145W (All channels driven)

POWER & HEAT @230VAC - IDLE

Power

14.5W

POWER & HEAT @230VAC - STANDBY/SLEEP MODE

Power

8.5W

TECHNOLOGIES

Amplification technology

Class D

Cooling

Fan (Forced air, front to back airflow. Temperature controlled continuously variable speed)

Maximum fan noise

46 dB (Maximum acoustical noise @1m)

DSP

Latency

500uS (Analogue IN to analogue OUT)

Digital processing

64 bit

Inputs processing

Delay, Parametric EQ, Limiter, Multiband compressor (Settings via HADA DSP Manager)

Outputs processing

Delay, Parametric EQ, Limiter, Multiband compressor (Settings via HADA DSP Manager)

Others

Preset management, 4x4 Matrix Mixer (Settings via HADA DSP Manager)

PROTECTIONS

DC protection

Yes (Protects loudspeaker and installation against DC and infrasonic signals at the outputs)

HF protection

Yes (Protects the loudspeakers against non-audible, strong, non-musical high frequency signals)

Short-circuit protection

Yes (Protects the amplifier from overcurrent, short circuit or other stressful events for the output stages with output reduction or MUTE (automatic protection reset))

Thermal protection

Yes (Output power reduction when output stages operating temperature up to 90 °C (194 °F)
Mute when output stages operating temperature up to 100 °C (212 °F))

REMOTE CONTROL CONNECTIONS

ON / OFF

GPIs

x4 GPIs (0-3.3V) (5-pin Euroblock connector, rear panel)

External MUTE

Yes, dry contact (2 pins Euroblock connector, rear panel. Euroblock pitch 3,5 mm)

LOCAL CONTROL

Attenuators

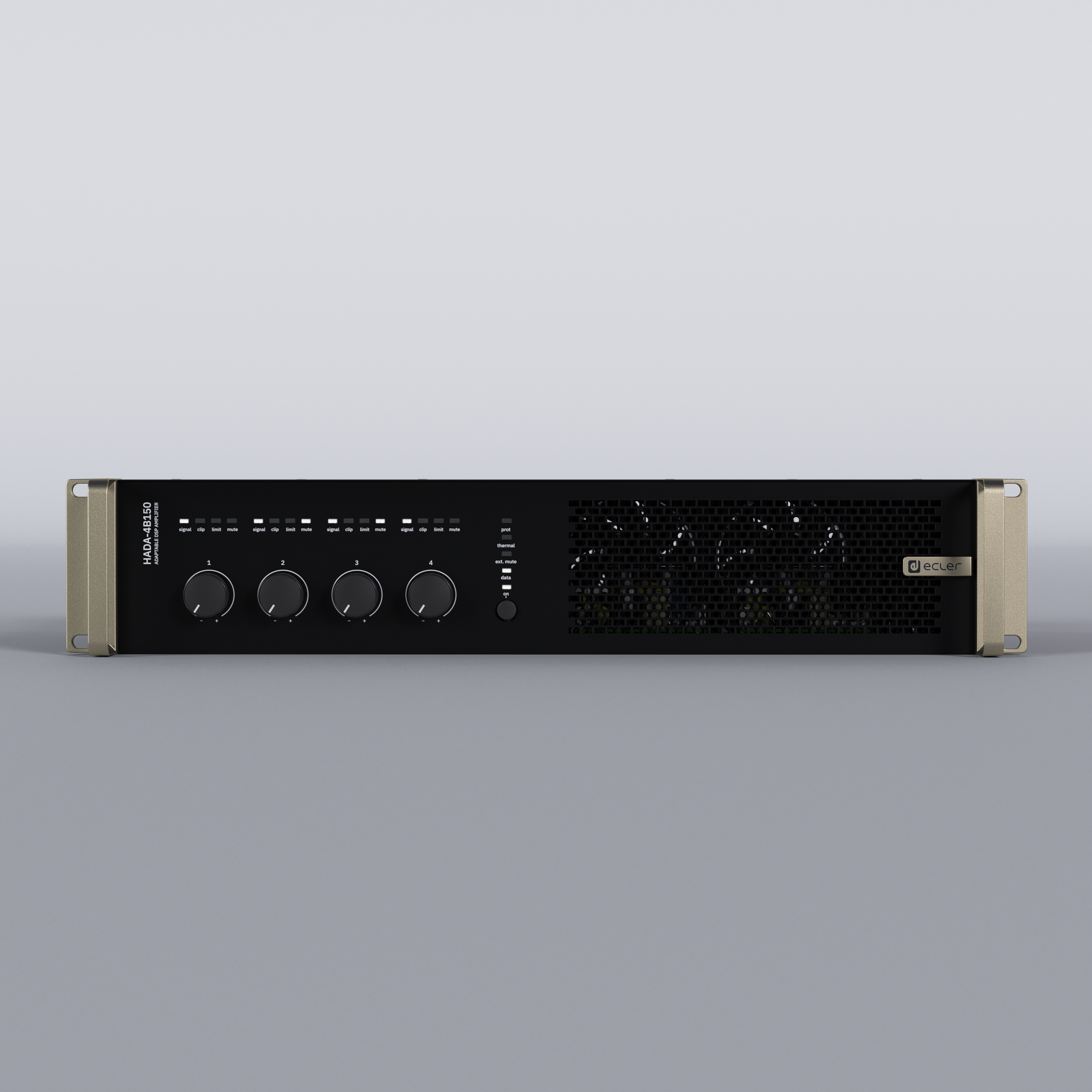

Front panel knobs (Defaults: Amplified OUTs attenuators)

Output mode settings

Lo-Z/Hi-Z, 70V/100V, 4Ω/8Ω
Output mode selection per couple of channels (Software)

RUN/SLEEP mode

Yes, front panel push-button (Operates when pressed more than 3 seconds)

Power ON/OFF

Yes, back panel switch (Red LED indicator)

CONNECTIVITY

Ethernet

Ethernet Base-Tx 100Mb (CAT5 up to 100m. Settings by embedded web application)

Programing and control

HADA DSP Manager Application

MONITORING

Signal Present

SP LED (White) per channel (trigger @- 40 dBV)

Cliping

CLIP LED (Red) per channel

Protect

PROT. LED (Red) per unit + MUTE of the protected channel

Standby

ON LED (White) + PROT. LED (Red) in Standby mode

Mute

MUTE LED (White) per channel

Ext / Mute

Ext. MUTE LED (White) per unit

Limit

LIMIT LED (Red) per channel

Thermal

THERMAL LED (Red) per unit (Temperature limiter)

Data

DATA LED (White) per unit (ON when DATA)

On

ON LED (White) per unit (ON when RUN)

DIGITAL ENGINE

Processor

Dual core 64bits

AUDIO CONVERTERS

Sampling rate

96 kHz

Resolution

24 bit

Dynamic range

113 dB

PHYSICAL

Operating temperature

Min. 0ºC; 32ºF
Max. 40ºC; 104ºF
(performance may be reduced above 40°C)

Operating humidity

5 - 80% RH, non-condensing

Storage temperature

Min. -10ºC; 14ºF
Max. 50ºC; 122ºF

Storage humidity

5 - 85% RH, non-condensing

Installation options

Rack 19" installation & desktop

Included accessories

EU Main cord, Euroblock Connectors (inputs /outputs), Desktop feet, rack 19" installation hardware

Optional accessories

Dimensions

482.6 x 88 x 281,5 mm / 19 x 3.46 x 11.08 in. (WxHxD)

Weight

4.7 Kg / 10.36 lb

Shipping dimensions

495 x 125 x 560 mm /19.48 x 4.92 x 22.05 in. (WxHxD)

Shipping weight

6.8 kg / 14.9 lb
