6x3 | 1U rack | analogue mixer

Installation Preamps. & Mixers | Reference: CESAM603,CESAM603C

eSAM603Image 1

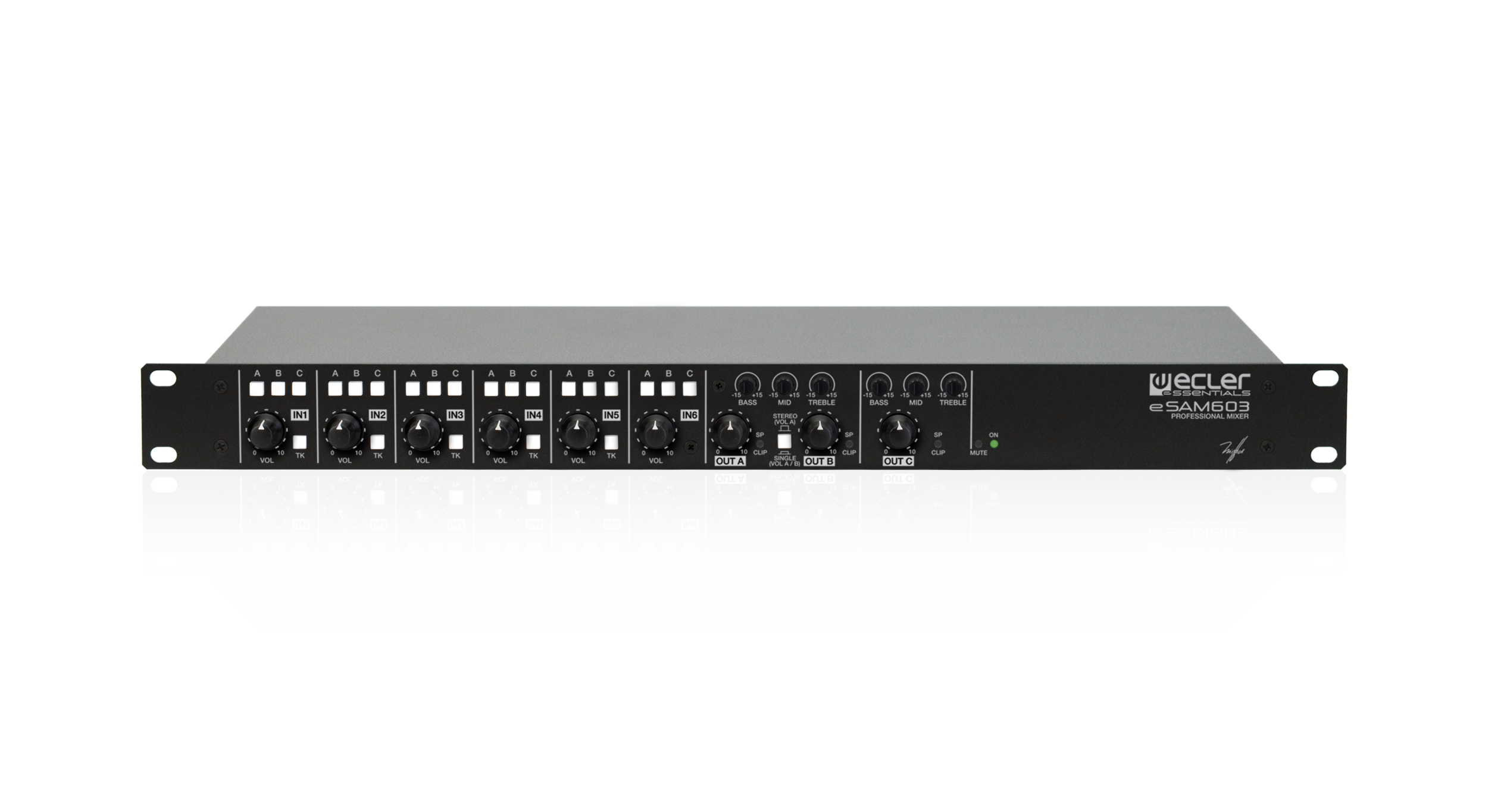

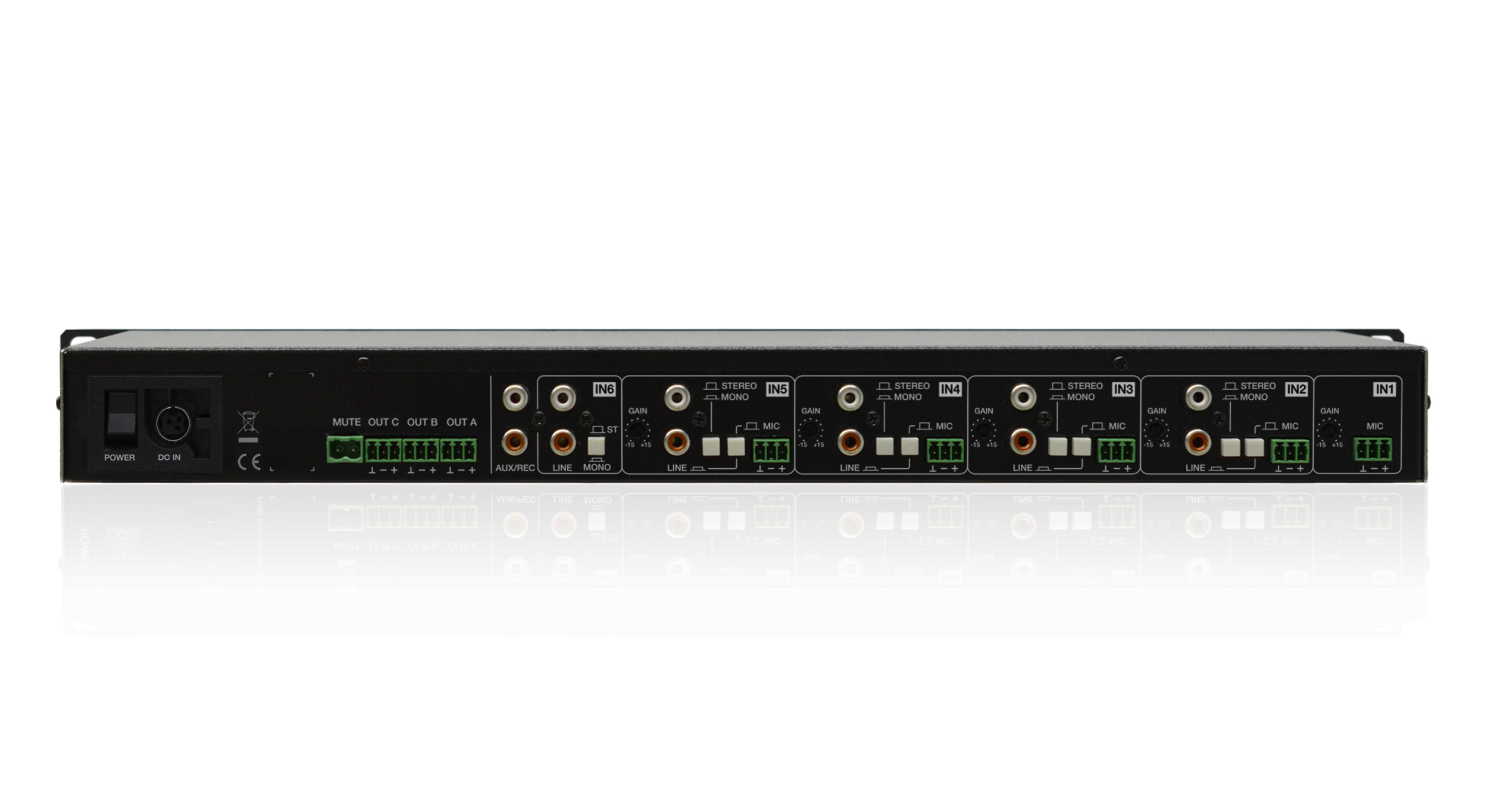

eSAM603 is an installation audio mixer in standard rack format, featuring 1 MIC input + 4 MIC/LINE ST inputs + 1 LINE ST input and 3 outputs that can be configured as 1 stereo couple + 1 mono or 3 independent mono. Each output can get a dedicated mix from the available inputs and has a 3-band tone control. Talkover (priority) function is assignable to each input from IN1 to IN5 over the mix output buses. ST/MONO mix switch for the A/B outputs and MUTE port for external dry contact triggering.

  • 4 MIC / ST LINE inputs
  • 1 ST LINE input
  • 1 MIC input
  • 1 ST output o 2 x mono output (A and B outputs)
  • 1 mono output (C output)
  • Independent inputs routing for zones A, B, C
  • 1 AUX/REC output
  • Independent 3-band EQ control for outputs A/B and output C
  • MUTE port triggered by external contact closure
  • Switchable talkover function, from IN1 to IN5 over A, B, C outputs
