HDBaseT Extenders: news on Ecler Video

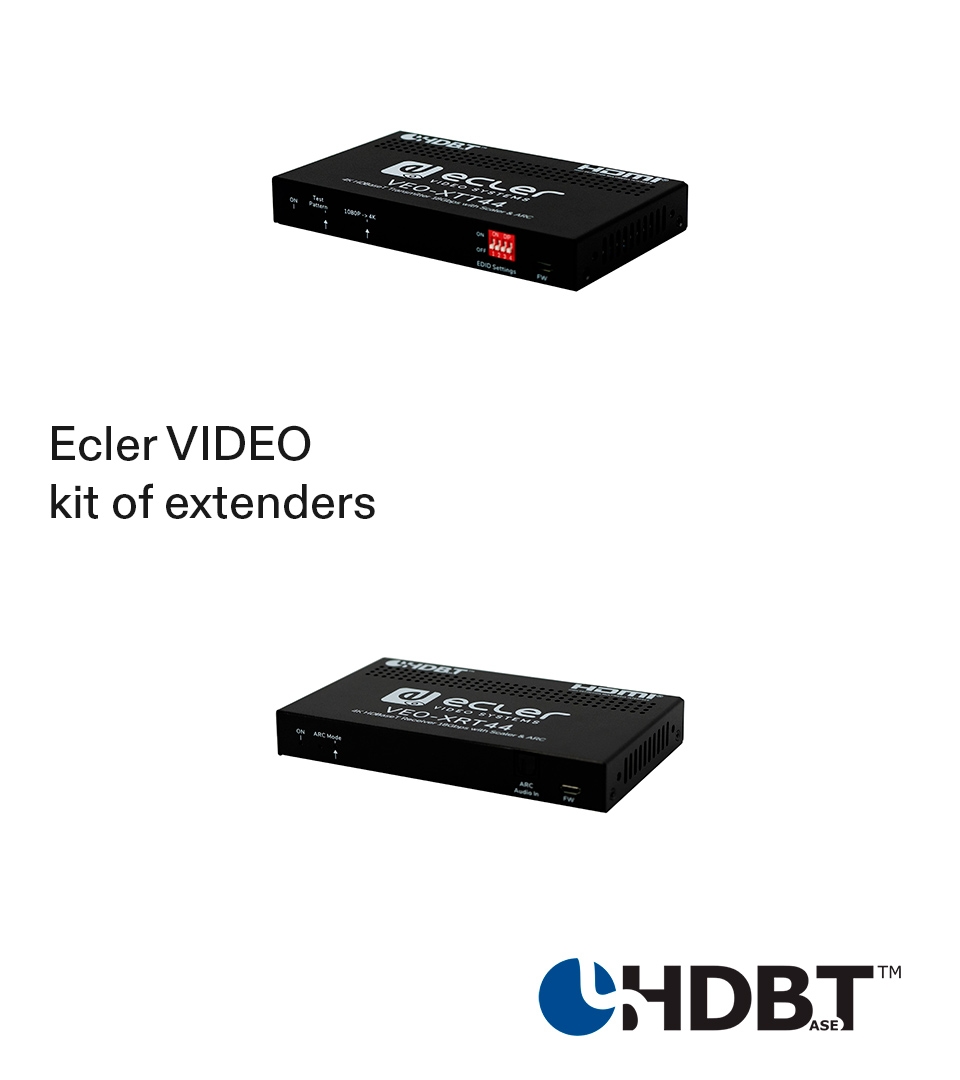

Ecler VEO-XTT44 and VEO-XRT44 are professional HDBaseT Transmitter and Receiver of High Dynamic Range (HDR) formats for HDMI 2.0 extension. These product represents the ideal solution for residential and commercial applications that include the latest 4K/UHD and HDR sources and displays.

Key Features

• Supports HDMI 2.0 and the HDMI video resolution up to 4K@60Hz 4:4:4 HDR.

• HDCP 2.2 and 1.4 supported.

• Extends 4K signals to distances up to 40 meters (131 feet) and 1080P signals to distances up to 70 meters (230 feet) over a single CATx cable.

• Supports video resolution up-scaling, the 1080P input can be automatically upgraded to 4K output.

• SPDIF out on receiver for source audio de-embedding.

• 18Gbps high bandwidth.

• Advanced EDID management: multiple built-in EDID settings or customized EDID can be selected.

• Test pattern provides a built-in 4K/1080P image for troubleshooting.

• Bidirectional IR, RS232 and 24V PoH.

• Supports ARC.

• Supports CEC pass-through.

• LEDs to indicate the current operating status.

• Firmware upgrade by Micro-USB port.

• ESD protection

We've created a dedicated video for Ecler's HDBaseT extender series, where we explain the advantages of using this tecnology in yur spaces.
