VEO-AXS4

HDMI 2.0 audio De-embedder

Audio Management Devices | Reference: CVEOAXS4

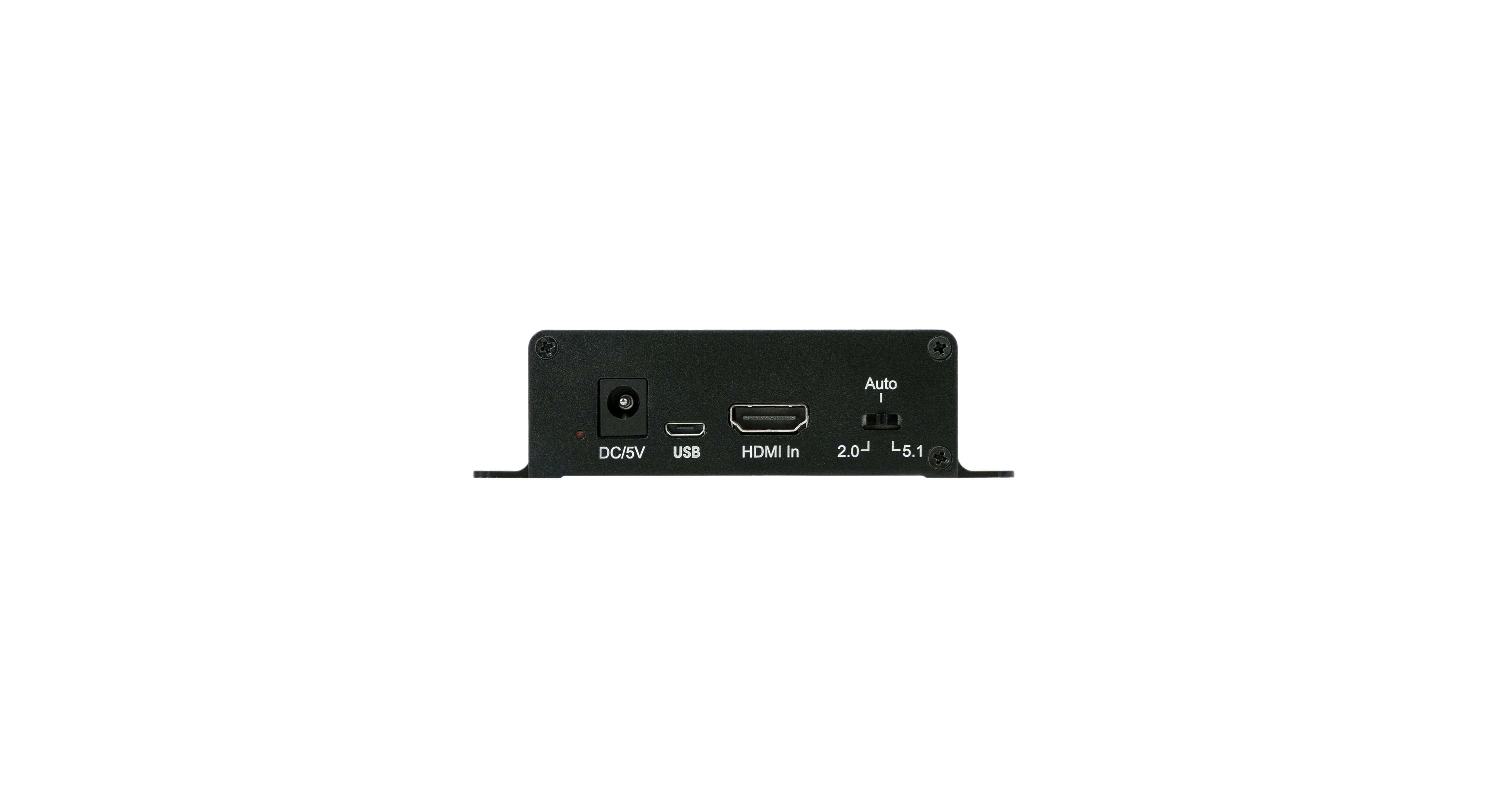

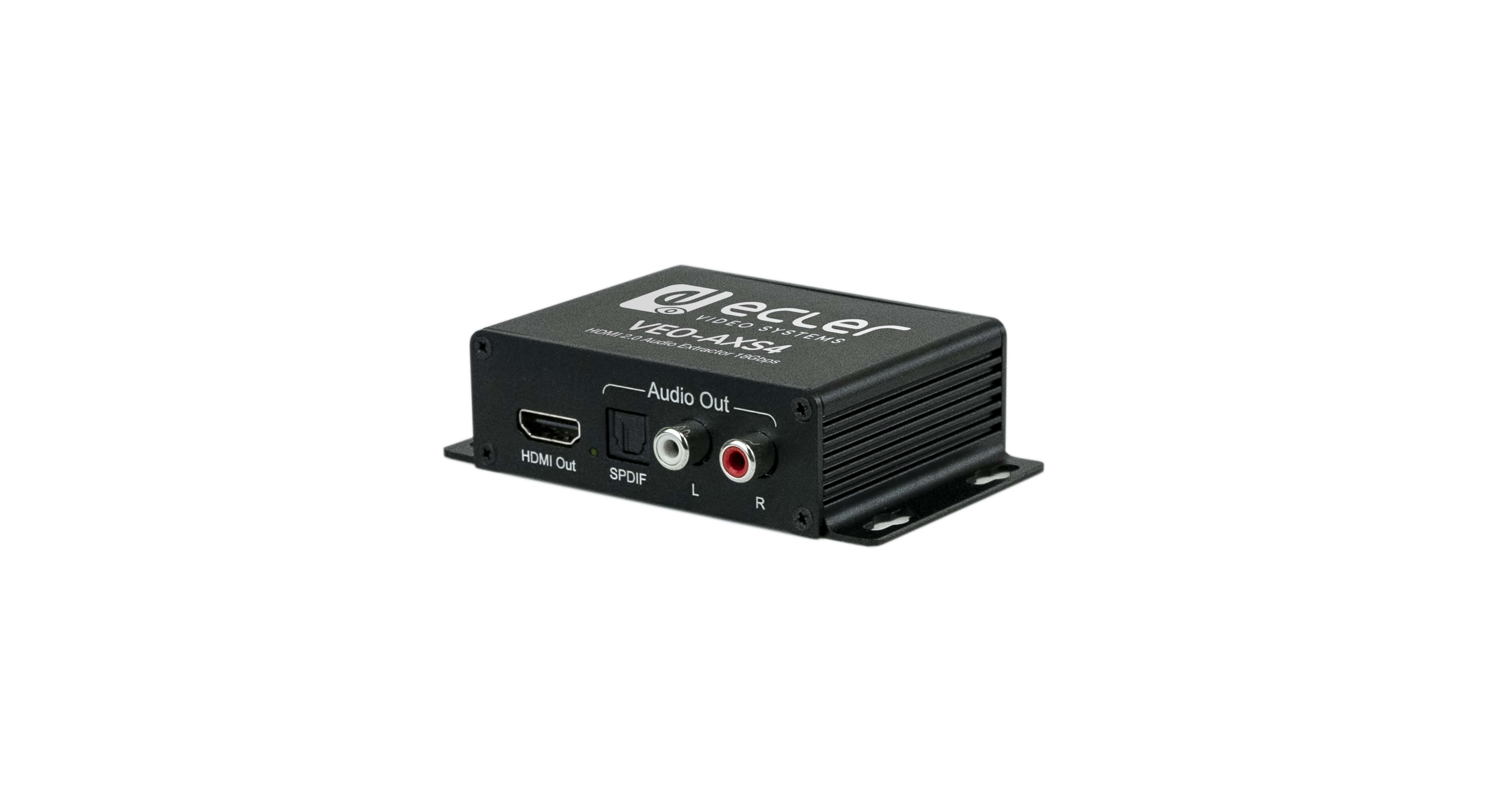

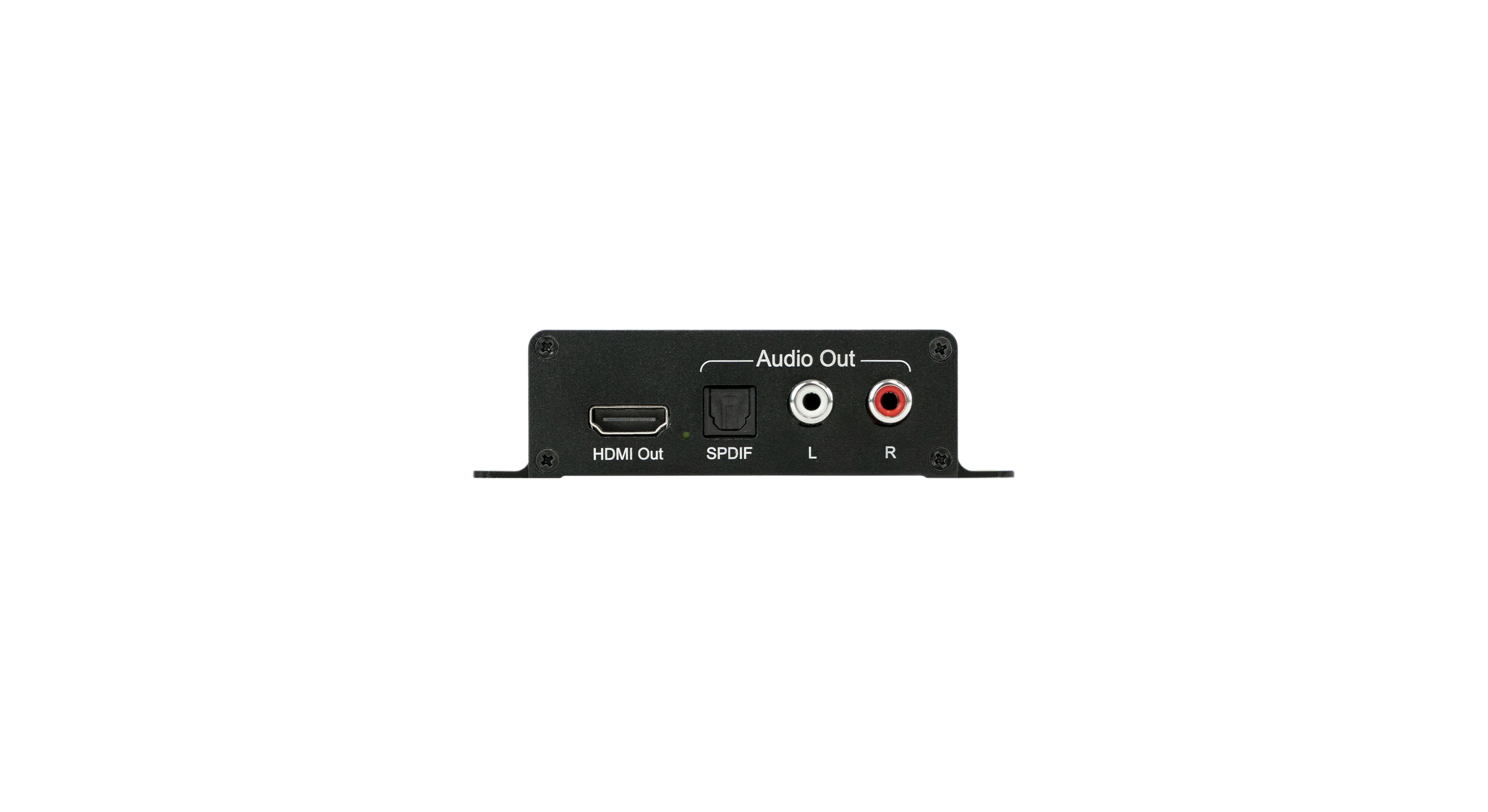

VEO-AXS4Image 1


VEO-AXS4 allows to extract audio signals from HDMI signals up to 4K. It provides a stereo analog output on RCA connectors or a 5.1 digital output on Toslink connector, selectable through the onboard switch.

  • Extracts the digital HDMI audio signal from the HDMI input to analog stereo output or to 5.1 S/PDIF output
  • Audio EDID Settings: Auto/2.0 CH/5.1CH
  • Signal amplification and equalization to extend HDMI input and output ports up to 10 meters (33 feet)
  • Supports LPCM, Dolby Digital and DTS
  • Supports resolution up to 4K@60Hz YUV4:4:4
  • Supports deep color up to 36bit
  • Supports sample rate up to 192 KHz and resolutions up to 24 bit
  • HDCP2.2/1.4 Compliant
  • Supports CEC
  • Supports up to 18Gbps video data rate
