eMPAGE

16-zone | 20-key | e-ink display | RJ45

Paging Stations | Reference: CEMPAGE

eMPAGEImage 1

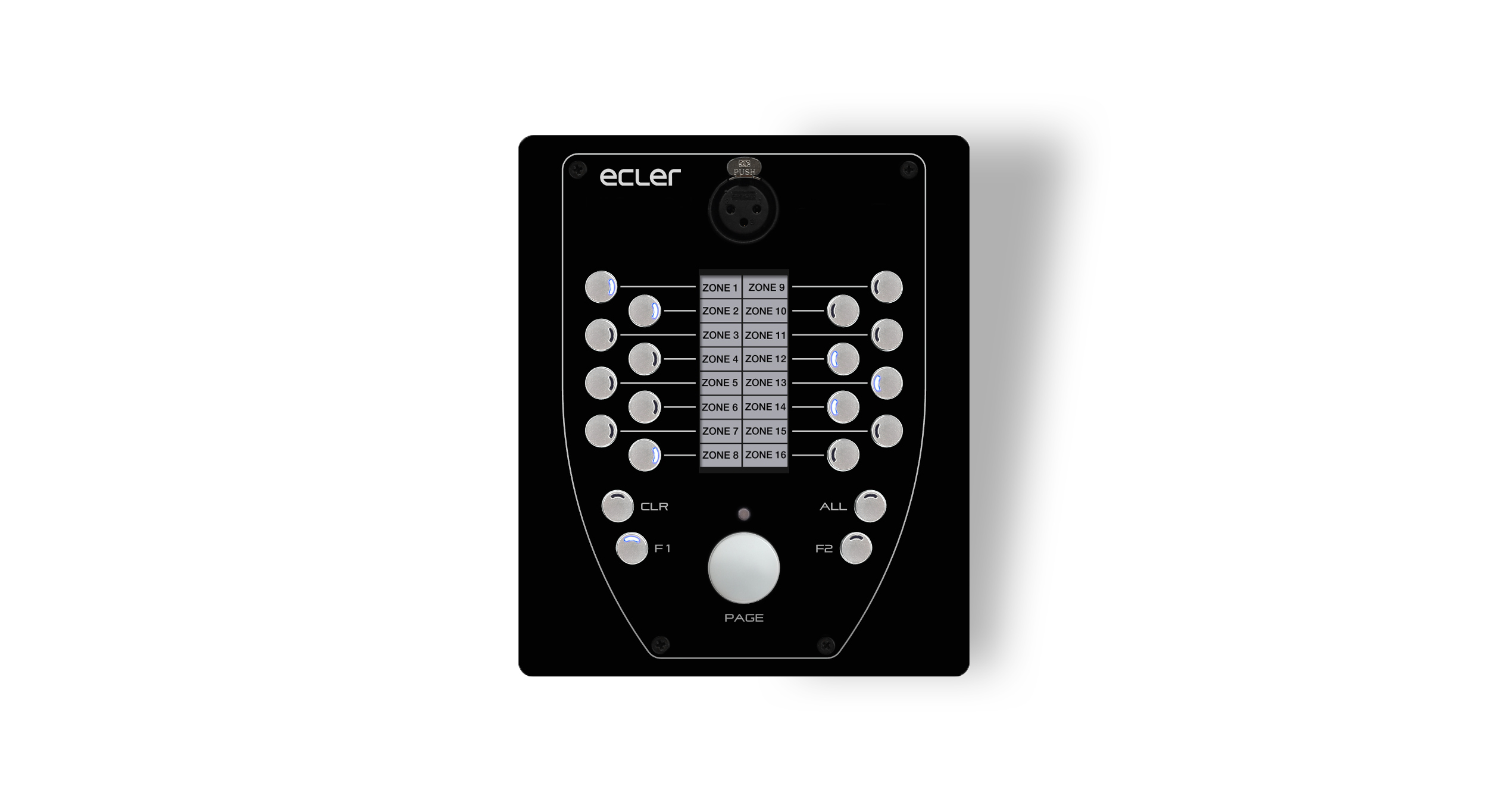

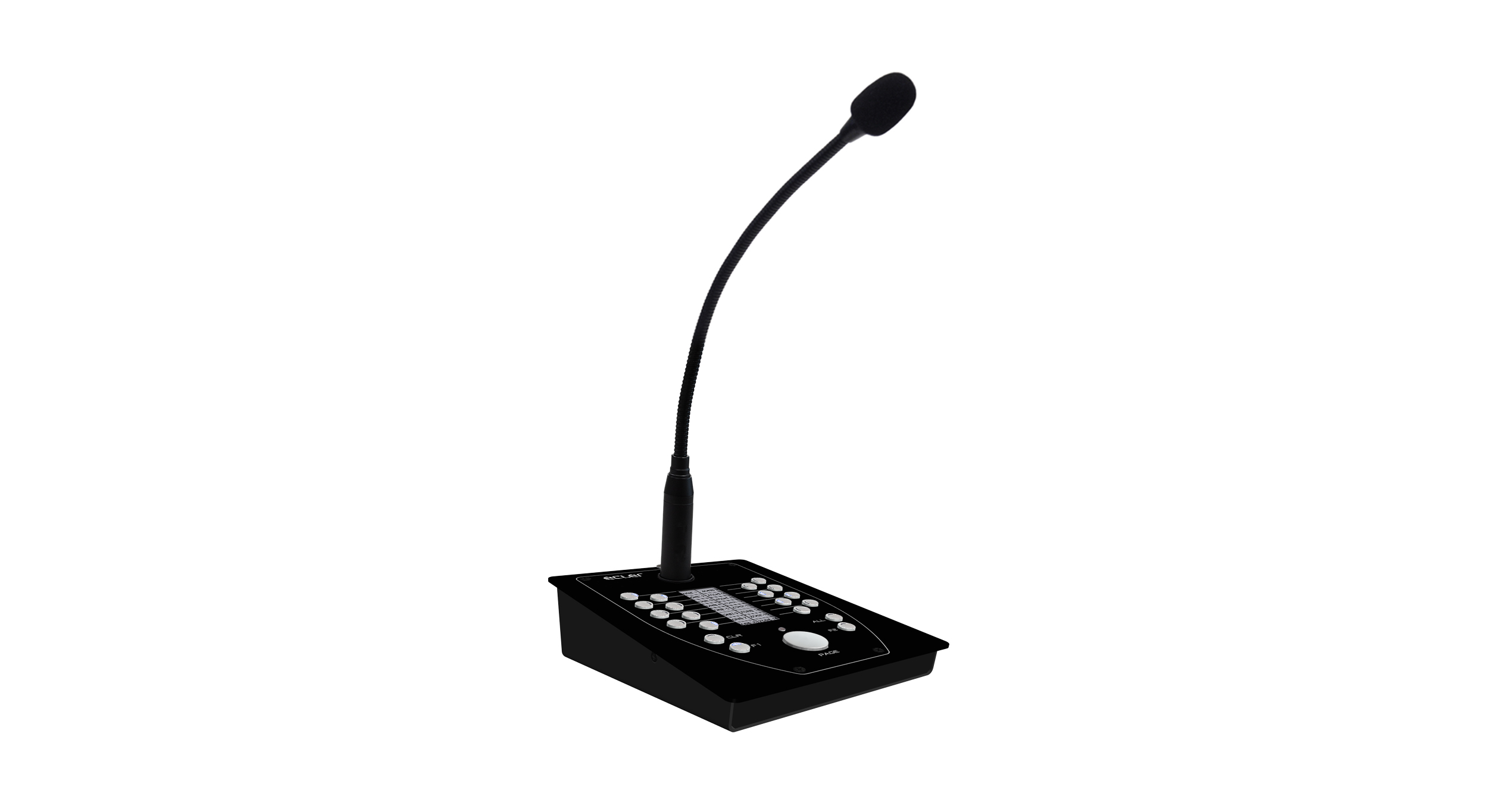

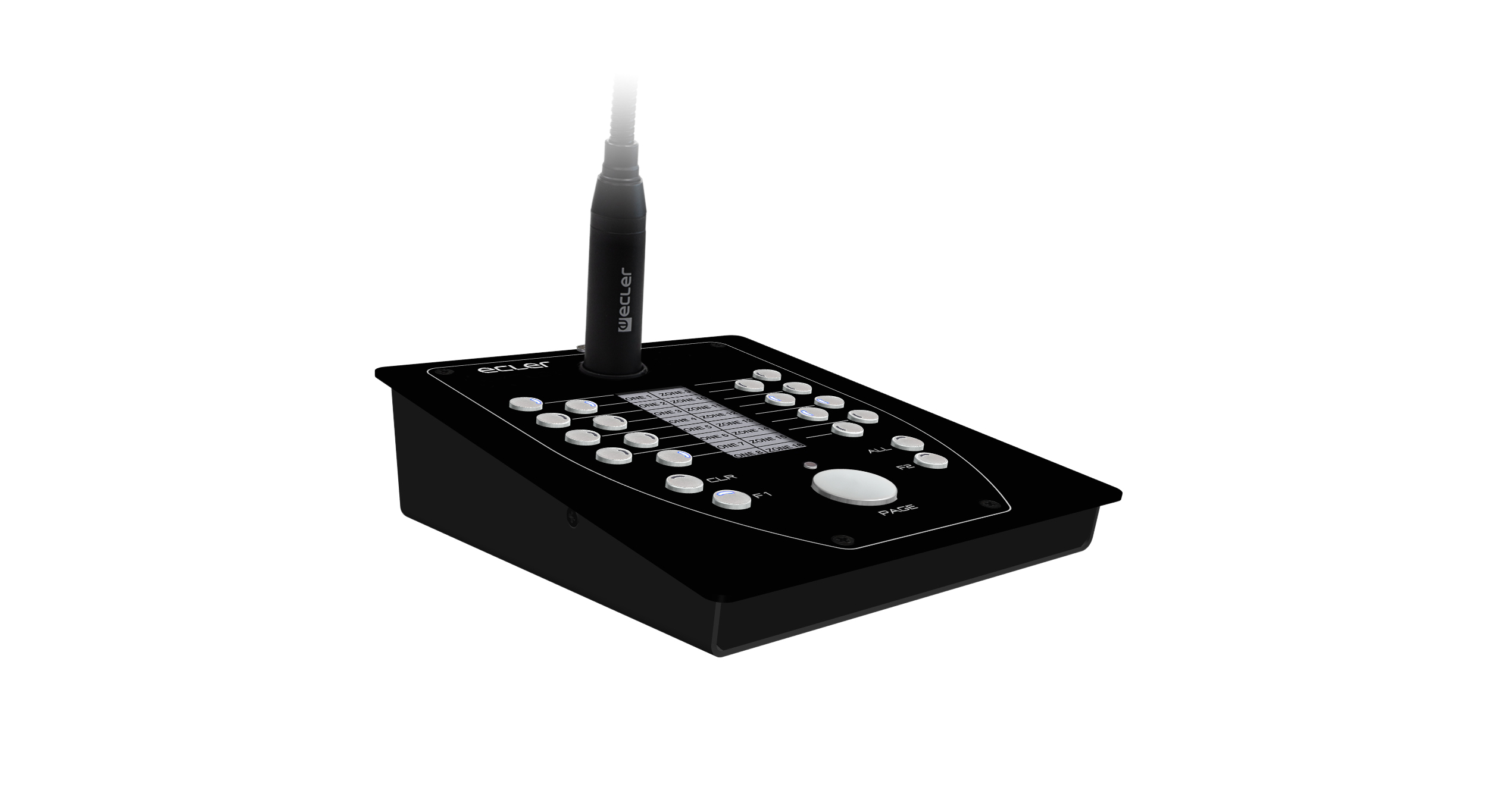

eMPAGE is a digital paging station (MPAGE16's evolution), compatible with HUB, MIMO88, MIMO88SG and MIMO1212SG digital matrixes. Includes: a gooseneck cardioid microphone (removable); 16 zone-selection keys; ALL, CLEAR and PAGE keys; 2 programmable keys, F1 & F2, for zone-group selection. Text labelling for destination areas by means of programmable electronic ink display.

  • 20 mechanical keys with integrated LED status indicator (paging zone selection management)
  • 1 mechanical key with adjacent LED indicator (message activation, PAGE key)
  • Electronic ink display (shows paging zone names)
  • Gooseneck microphone, with standard XLR connector
  • Management of up to 16 paging zones
  • RJ45 connector for single CAT5 or higher cabling (point-to-point), including power, audio output signal (picked up by the microphone) and digital control bus between the HUB unit and the eMPAGE station
  • Connector for backup power supply (optional)
  • Two eMPAGE units, with different or equal priority levels, can work simultaneously on the same HUB zoner
  • Programming of paging station(s) functionality from the web application embedded in the HUB: enabled paging zones, chime melodies, priorities, programmable keys, etc.

Applications

Retail   Corporate   Hospitality

Accessories
WP24-PSUImage 1

WP24-PSU

External PSU | 24VDC 0,5A
